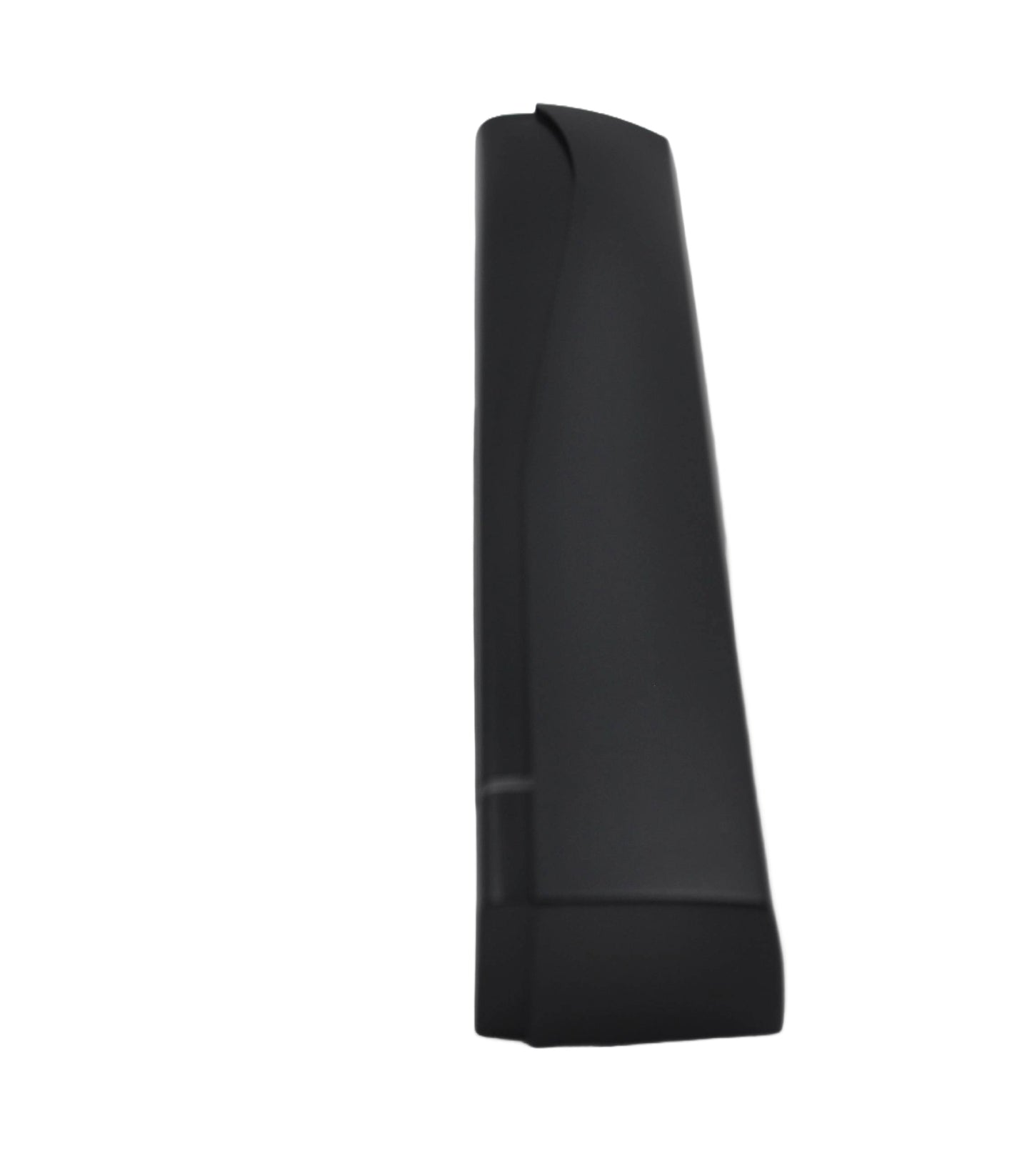

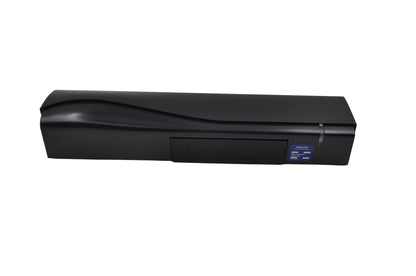

BEA VIO DT1 Activation Sensor

Combination Activation & Threshold Safety Sensor – EN16005 Compliant

This advanced Combination Activation & Threshold Safety Sensor provides reliable, accurate door activation combined with essential pedestrian safety for automatic doors. Featuring unidirectional microwave technology combined with a dual-row active infrared (AIR) safety curtain, this sensor delivers precise detection and exceptional safety performance, fully compliant with EN 16005 (performance level C).

Key Features & Benefits:

• Dual-Technology Detection:
  Combines unidirectional microwave activation with two rows of infrared beams, providing efficient door activation and robust pedestrian safety.

• Monitored Safety Compliance:
  Fully meets EN 16005 Performance Level C requirements, ensuring maximum safety standards for pedestrian protection.

• Precision Infrared Coverage:
  Delivers accurate safety coverage, offering an infrared detection zone of 2.3m (width) by 0.5m (depth) at a typical mounting height of 2.2m.

• Robust, Discreet Housing:
  Black, compact housing seamlessly integrates with contemporary door designs, offering a discreet and stylish solution.

• Wide Operating Voltage Range:
  Compatible with 12V to 30V DC, ideal for various door installations.

• Easy Installation:
  Compact dimensions (267mm x 57mm x 50mm) ensure quick and convenient installation, with no additional remote controls required.

Technical Specifications:

• Detection Methods: Unidirectional Microwave & Active Infrared (AIR)

• Infrared Detection Range:

  • Max: 2.3m x 0.5m at 2.2m height

• Operating Voltage: 12 V to 30 V DC (-5%/+10%) SELV compatible power supplies only

• Power Consumption: < 2.2 W

• Mounting Height: 1.8 m – 3.0 m

• Logic Output:

  • Low Level: < 1 V (Log. L)

  • High Level: > 10 V (max. 30 V, Log. H)

• Operating Temperature: -25°C to +55°C

• Protection Rating: IP54, suitable for outdoor installations

• Noise Level: < 70 dB

• Product Life Expectancy: 20 years

Standards & Compliance:

• EN 16005:2012

• EN 12978:2009

• EN IEC 62061:2005 SIL2

• EN 61496-1:2012 ESPE Type 2

• EN ISO 13849-1:2008

• R&TTE 1999/5/EC; MD 2006/42/EC; LVD 2006/95/EC; ROHS 2 2011/65/EU

This Combination Activation & Threshold Safety Sensor is the ideal choice for ensuring maximum pedestrian safety and reliable door activation in all environments, perfectly suited for high-traffic areas where reliability and safety are paramount.
