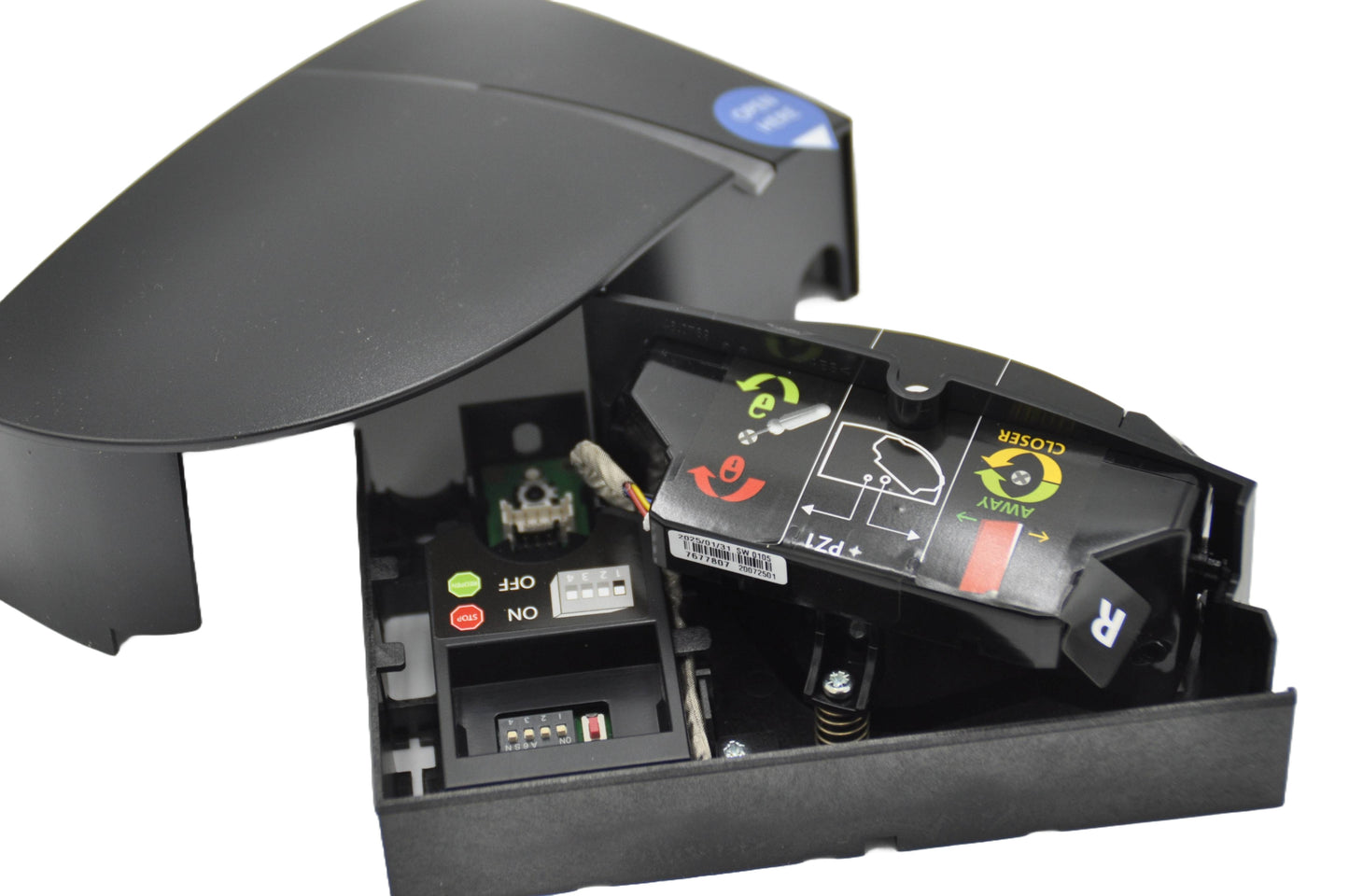

  • Internal view of a black BEA LZR-FLATSCAN 3D SW laser safety and activation sensors for swing doors with blue and white stickers with open here printed on. On a white background.
1 6

BEA LZR-FLATSCAN 3D

BEA LZR-FLATSCAN 3D

Net: £978.58
Incl. VAT: £1,174.30
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Instruction Manual

View Manual

BEA LZR-FLATSCAN 3D SW Laser Safety & Activation Sensor for Swing Doors (Price is per door leaf)

The BEA LZR-FLATSCAN 3D SW is an advanced laser safety and activation sensor specially developed for automatic swing doors. Utilising innovative laser time-of-flight technology, it provides complete, volumetric coverage of the door's swing area, ensuring safe, touchless passage for users and significantly reducing collision risks, including protection for hinge and leading-edge areas.

Key Features & Benefits:

  • Laser Time-of-Flight Technology:
    Provides precise, volumetric detection to cover the entire swing area, eliminating sudden movements and avoiding any contact with pedestrians.

  • Enhanced Safety Coverage:
    Four high-resolution laser curtains ensure comprehensive detection, covering critical zones including hinge and leading-edge areas, providing superior pedestrian protection.

  • Touchless Door Activation:
    Optional activation function allows hygienic, hands-free door openings, eliminating the need for physical push buttons or switches.

  • Easy, Automatic Learning:
    Sensor automatically calibrates and learns its environment through a simple hand gesture, significantly reducing installation and commissioning time.

  • Hygienic, Maintenance-Free Design:
    A touchless, mechanical-free design reduces bacterial transmission, requires minimal maintenance, and eliminates regular cleaning associated with mechanical finger guards.

Technical Specifications:

  • Detection Method: Laser scanner (time-of-flight measurement)

  • Max Detection Range: 4m diagonal (reflectivity of 2%)

  • Field of View: Door wing safety: 80°; Hinge area safety: 20°

  • Angular Resolution:
    Curtain 1: 0.2° | Curtain 2: 1° | Curtain 3: 1.7° | Curtain 4: 2.5°

  • Minimum Object Size: 2cm at 4m (curtain 1)

  • Power Supply: 12–24V DC ±15%

  • Power Consumption: < 2W

  • Response Time: Typically <120 ms (max. 220 ms curtain 2)

  • Outputs: 3 electronic relays (max 42V AC/DC, 100mA)

  • Dimensions: 145mm (L) × 88mm (H) × 60mm (D)

  • IP Rating: IP44 (EN 60529)

  • Operating Temperature: -25°C to +60°C

  • Compliance: EN16005, EN ISO 13849-1 PL “d” Cat2, DIN18650-1, EN 12978, EN 62061 SIL 2

View full details

FAQ's

What type of door is the BEA LZR-FLATSCAN 3D designed for?

It is a laser safety and optional activation sensor designed for compatible automatic swing doors.

What detection technology does the LZR-FLATSCAN 3D use?

It uses laser time-of-flight scanning to create volumetric detection around the swing door leaf.

How many laser curtains are stated?

The product description states that four laser curtains provide coverage of the door wing and hinge-side areas.

Is the listed price per complete double-door set?

No. The listing explicitly states that the price is per door leaf.

What should be checked before specifying a FLATSCAN 3D installation?

Confirm the number of door leaves, required safety and activation functions, mounting arrangement and controller interface before ordering.
