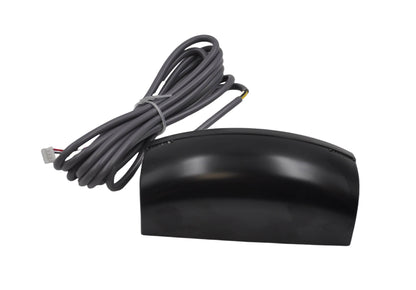

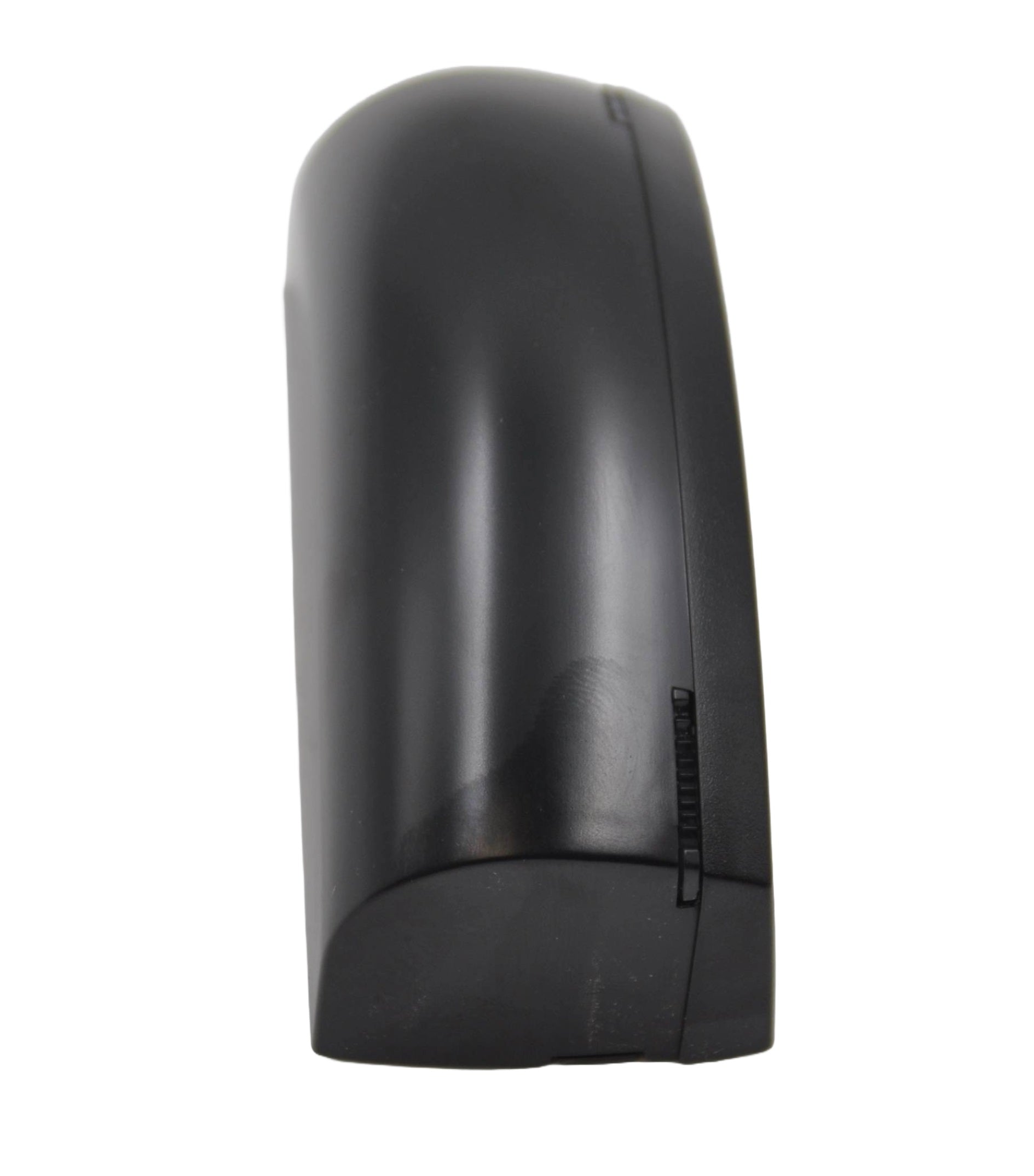

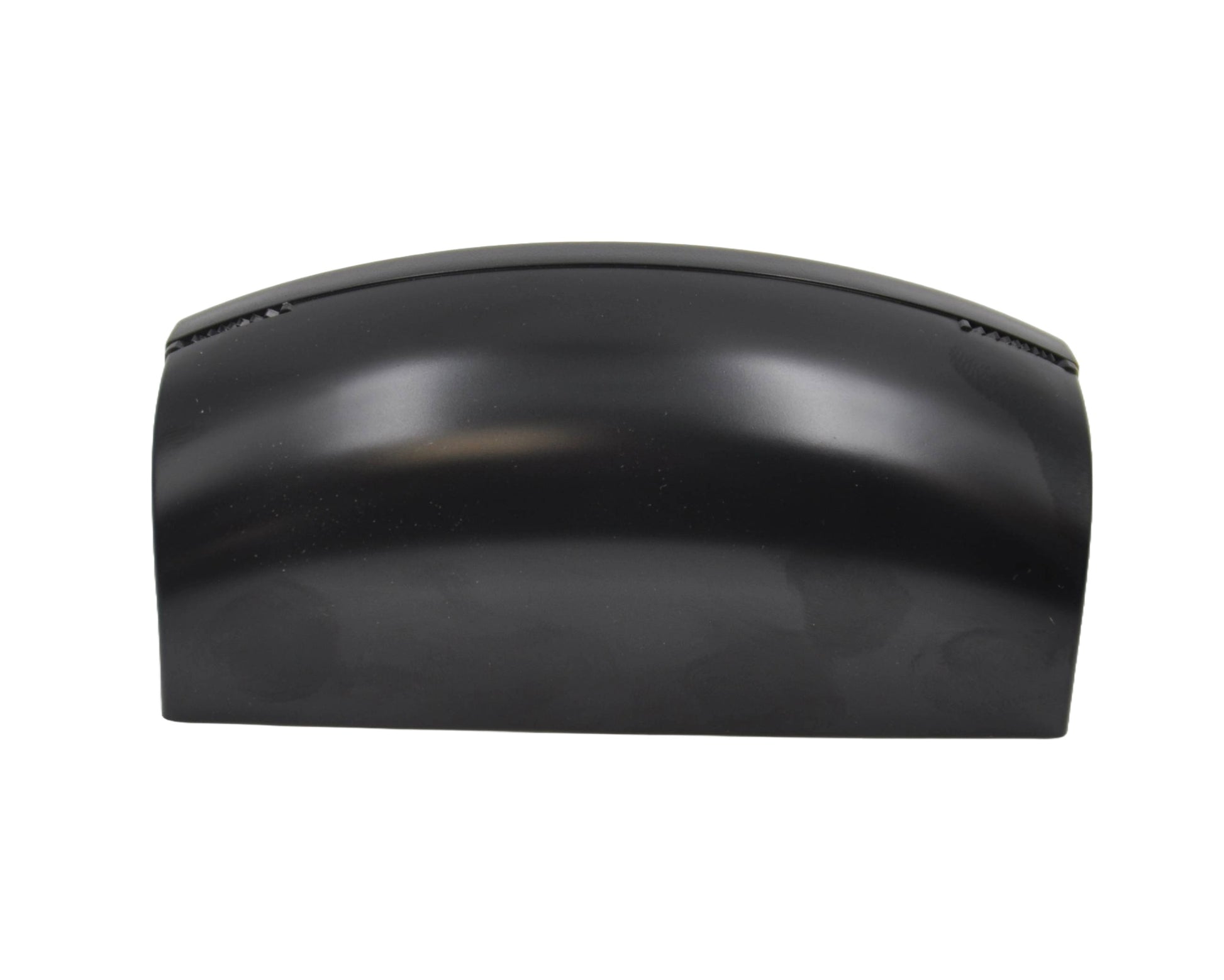

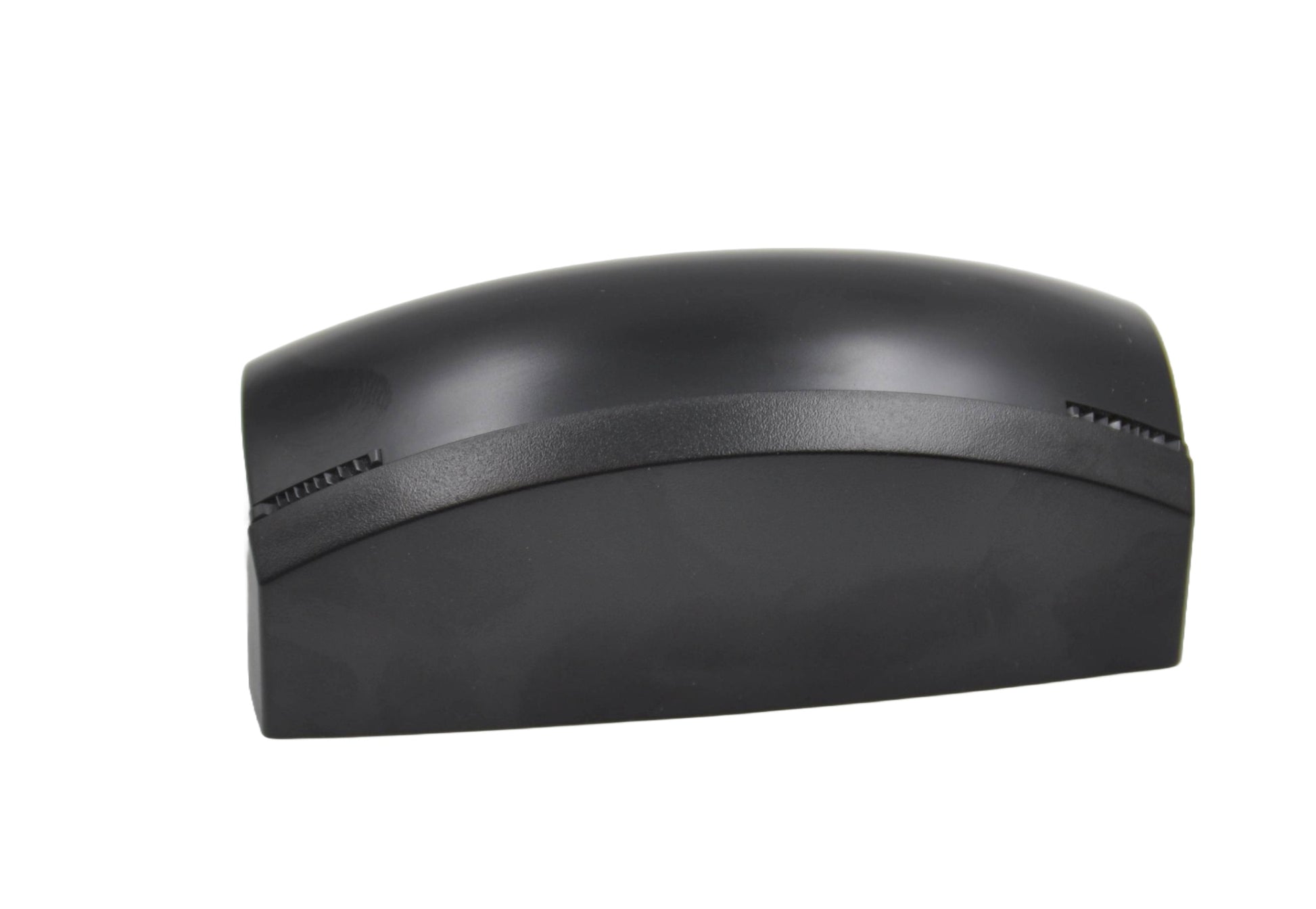

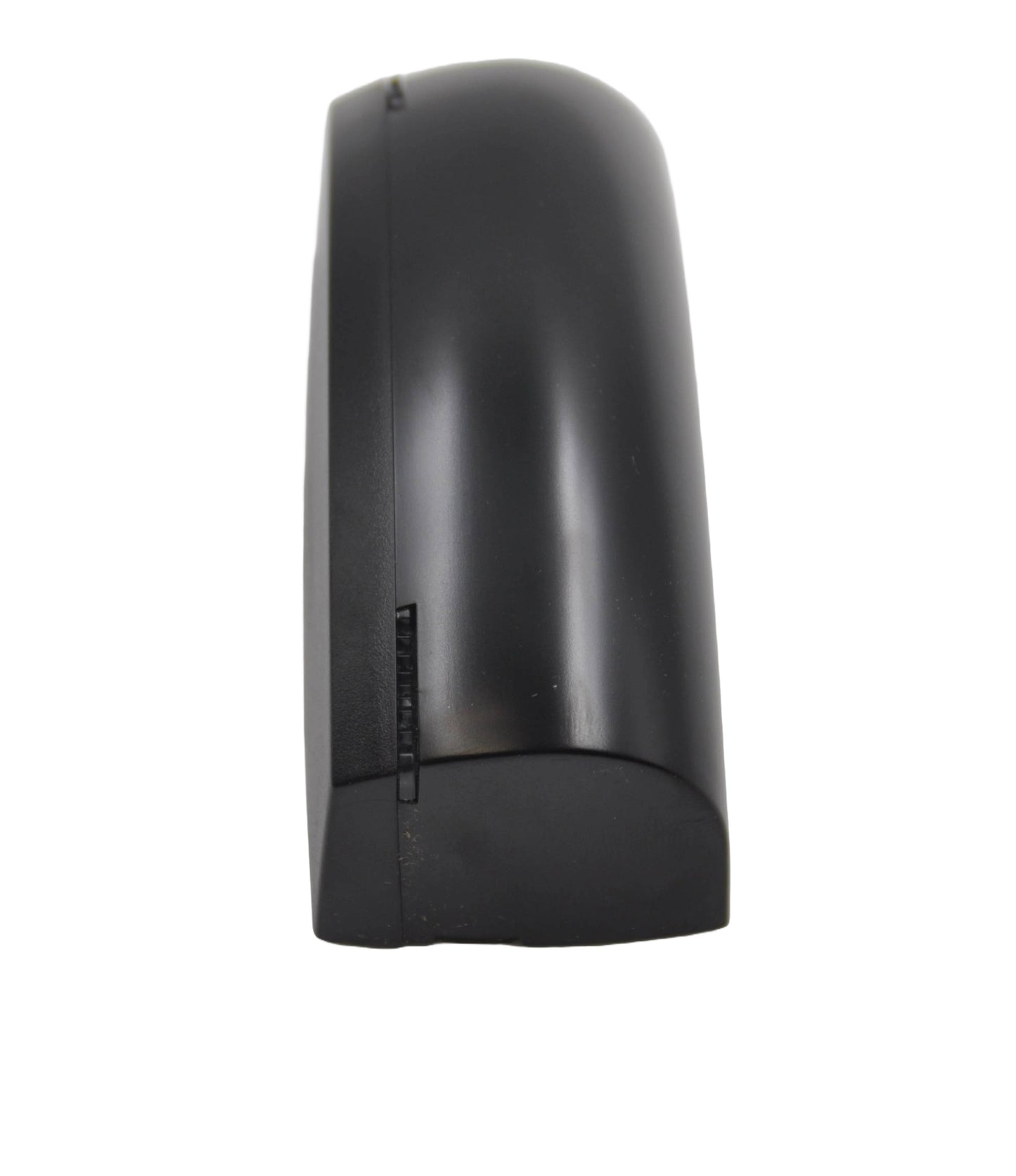

EAGLE ARTEK Microwave Activation Sensor

EAGLE ARTEK Microwave Activation Sensor – Compact and Versatile for Automatic Doors

The EAGLE ARTEK is a highly versatile, compact microwave sensor designed to provide reliable activation for all types of automatic doors. Its slim and discreet profile makes it an ideal choice for environments where minimal visibility is desired, blending effortlessly into modern entrance designs. Featuring adjustable unidirectional detection, the ARTEK enhances the efficiency of door cycles by optimising door opening and closing actions.

Key Features & Benefits:

• Slim & Compact Design:
  Discreet form factor easily integrates with any automatic door system, ideal for high-end architectural environments.

• Advanced Unidirectional Detection:
  Ensures efficient operation by detecting only approaching traffic, significantly reducing unnecessary opening cycles and improving energy efficiency.

• Flexible Electronic Adjustment:
  Quick and easy setup of detection parameters (field shape, size, and immunity) using intuitive push buttons, eliminating the need for manual antenna adjustments.

• Clear LED Feedback:
  Built-in LEDs provide visual confirmation during configuration, simplifying installation and fine-tuning.

• Easy Installation & Compatibility:
  Compatible with mounting points from existing EAGLE ONE sensors, making it ideal for quick upgrades.

Technical Specifications:

• Detection Technology: Microwave, motion detection

• Operating Frequency: 24.15 GHz

• Detection Range:

  • Wide: 4 m x 2 m

  • Narrow: 2 m x 2.2 m (at 2.2 m mounting height)

• Detection Speed: Minimum 5 cm/s

• Operating Voltage: 12V – 24V AC/DC

• Power Consumption: < 1W

• Relay Output:

  • Solid-state relay (polarity-free)

  • Max switching voltage: 30V AC / 42V DC

  • Max current: 100 mA (resistive)

• Mounting Height: 1.8 m to 4 m

• Protection Rating: IP54 (IEC/EN 60529), suitable for indoor and outdoor use

• Operating Temperature: -20°C to +55°C

• Dimensions: 120 mm (W) x 50 mm (H) x 50 mm (D)

• Adjustable Angles:

  • Vertical: 0° to 90°

  • Lateral: -30° to +30°

• Housing Material: Durable ABS

• Cable Length: 2.5 m

• Weight: 120 g

The EAGLE ARTEK microwave sensor combines flexibility, discretion, and ease-of-use, ensuring optimal performance and energy efficiency for all automatic door systems.
