BEA 4Safe - 700mm

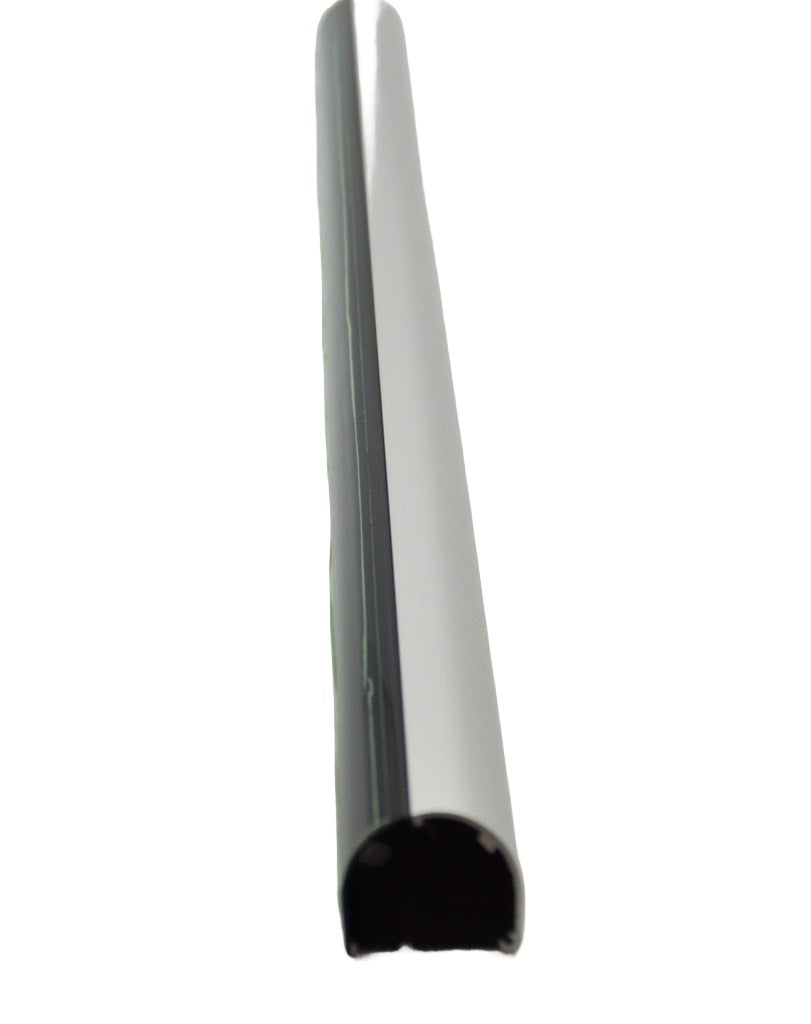

BEA 4SAFE Infrared Safety Sensor – 700mm Length for Swing and Revolving Doors

The BEA 4SAFE Infrared Safety Sensor (700mm length) provides robust and reliable protection for automatic swing and revolving doors, utilising advanced distance-measuring infrared technology. Specifically engineered to prevent collisions between pedestrians and moving door leaves, the 700mm variant ensures comprehensive safety coverage, making it ideal for installations requiring precision coverage and compact sensor dimensions.

Key Features & Benefits:

• Precision Infrared Detection:
  Offers accurate detection with an effective safety field of up to 40cm from the door leaf at 2m installation height, featuring four groups of two active infrared detection spots, ensuring high pedestrian safety.

• Compact 700mm Design:
  Specifically designed at 700mm length for seamless integration into smaller or more compact door leaf installations, providing unobtrusive yet reliable safety coverage.

• Easy Daisy-Chain Installation:
  Allows effortless daisy-chaining of up to six sensor modules, enabling full door-width coverage with simplified wiring and quick installation.

• Efficient Wiring with Selectable Outputs:
  Each module includes two selectable outputs that conveniently cover both door-opening and closing safety functions, combined within a single cable, significantly reducing installation complexity.

• Adaptable Floor Detection:
  Reliably detects various floor surfaces, including reflective stainless steel, metal grids, puddles, snow-covered, or uneven terrain, maintaining accurate performance across diverse environments.

• Automatic Module Recognition:
  Each sensor module automatically identifies its configuration within the daisy-chain, simplifying both installation and maintenance logistics.

Ideal Applications:

The 700mm length BEA 4SAFE Infrared Sensor is ideally suited to environments with restricted space or specific door configurations, such as:

• Hospitals and care homes

• Commercial offices

• Retail shops and stores

• Public buildings with accessibility considerations

• Locations requiring discrete and efficient sensor integration

To ensure optimum safety performance and regulatory compliance (EN16005), Automagic Door Parts recommends professional installation and periodic maintenance checks.
