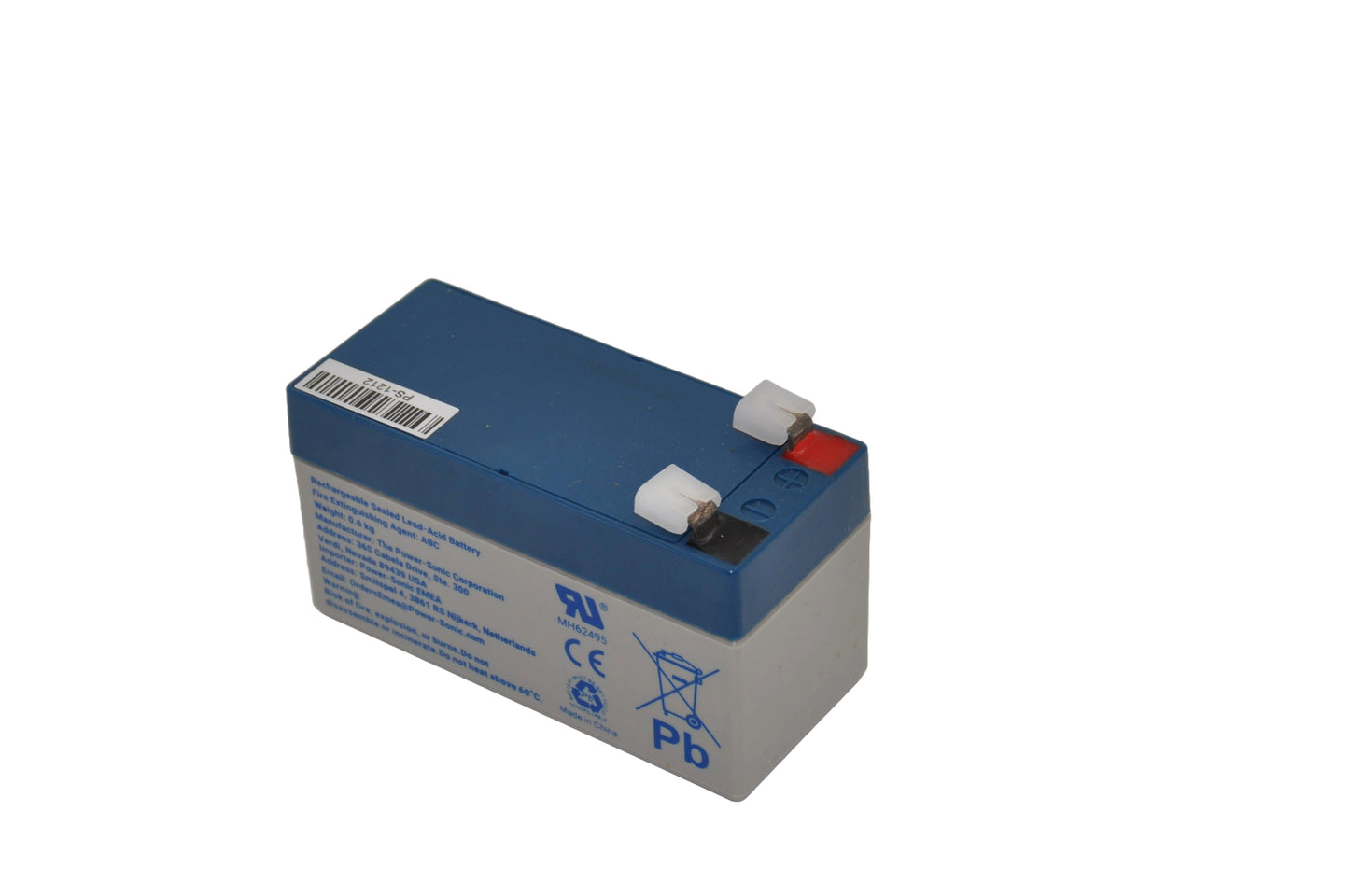

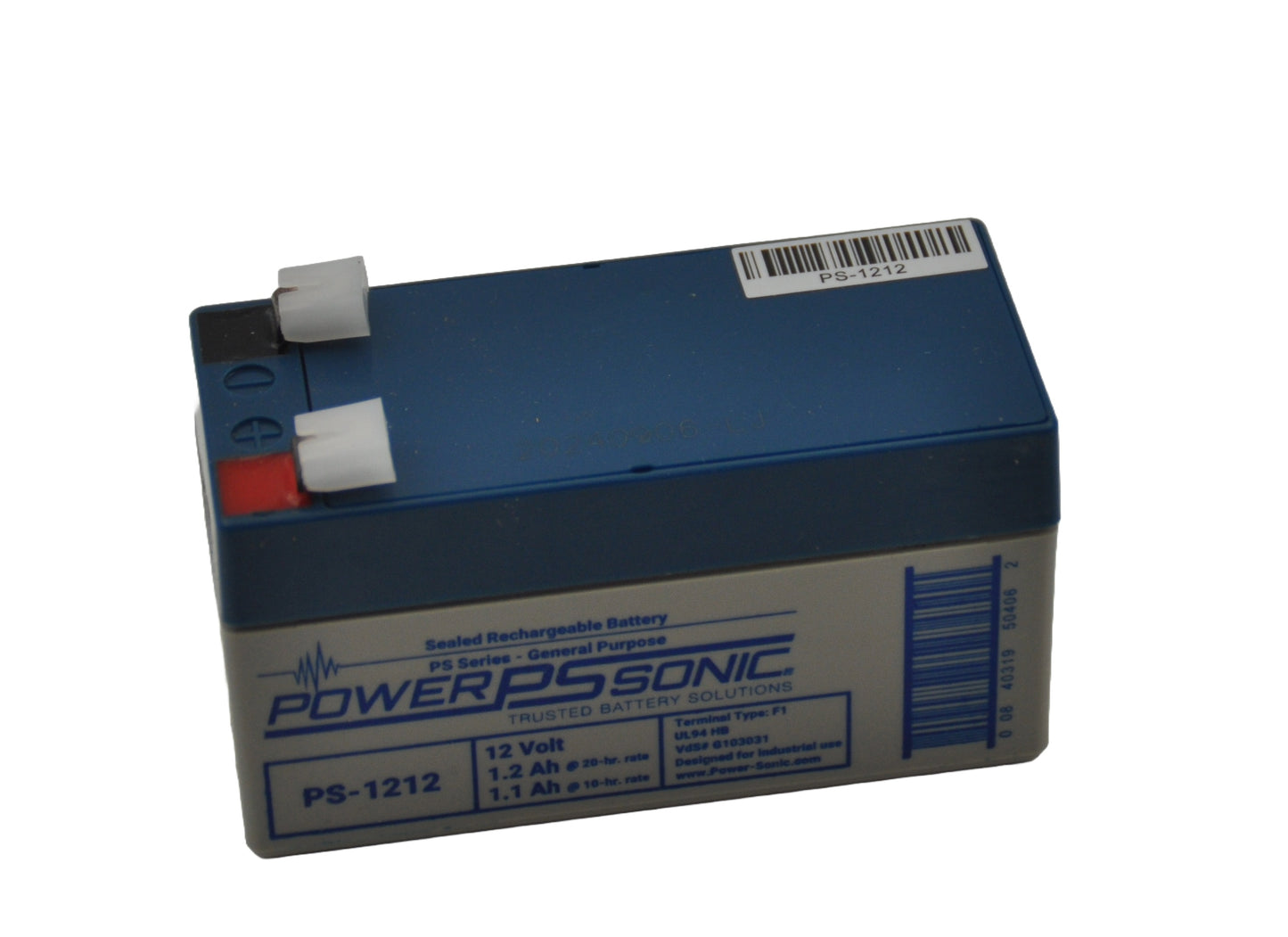

• A blue and grey sealed lead-acid battery with red and black terminals, labeled with voltage and capacity information. On a white background.
  • A blue and grey sealed lead-acid battery with red and black terminals, labeled with voltage and capacity information. On a white background.
  • A blue and grey sealed lead-acid battery with red and black terminals, labeled with voltage and capacity information. On a white background.

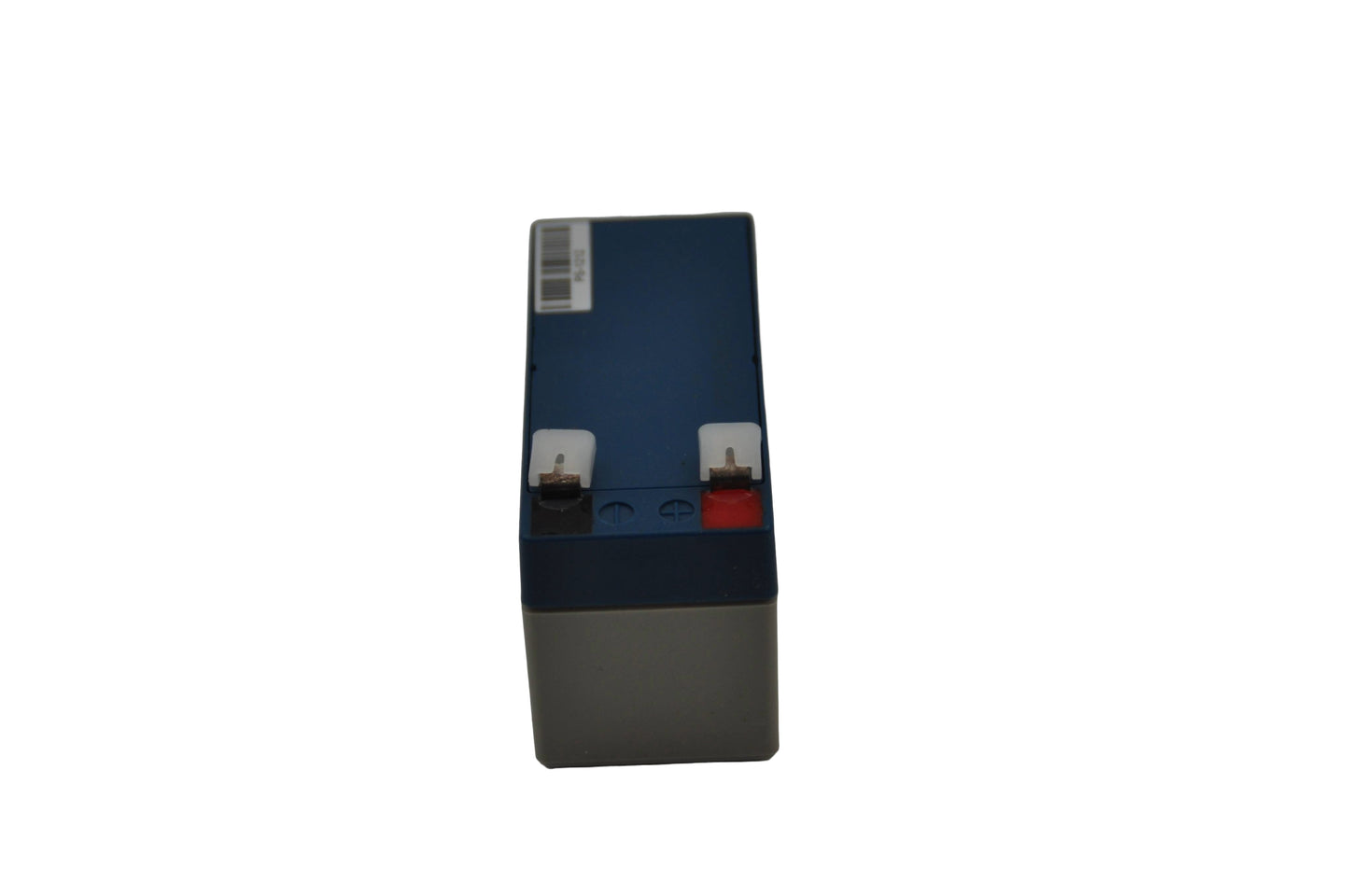

  • Side view of A blue and grey sealed lead-acid battery with red and black terminals, labeled with voltage and capacity information. On a white background.
1 4

Battery – 12V 1.2Ah - Tormax, Gilgen

Battery – 12V 1.2Ah - Tormax, Gilgen

Net: £13.87
Incl. VAT: £16.64
Taxes included.

NP0.8-12 Compatible Replacement Battery – 12V 1.2Ah

This high-quality replacement 12V 1.2Ah sealed lead-acid battery is specially designed as an ideal power backup solution for a range of automatic door operators. Compatible models include:

- **Record FTA107 Bi-fold Operator** *(requires 2 batteries)*
- **Tormax Automatic Door Operator** *(requires 2 batteries)*
- **Gilgen SLM Automatic Door Operator** *(requires 2 batteries)*

Additionally compatible as a replacement for:

- Yuasa NP0.8-12, Y1.2-12, NP1.2-12
- Panasonic LC-R12V1.3P, LC R1213PU, LC-R121R3P
- Eagle Picher CF-12V1.3
- Powersonic PS-1212
- GS PE12V1.2
- Hitachi HP1.2-12
- BB (B&B) BP1.2-12
- Polar Power PP12V1.2
- Vision GP1213
- Powersonic PS-1212
- And many other standard 12V 1.2Ah sealed lead-acid battery applications

**Key Technical Specifications:**

- **Voltage:** 12V
- **Capacity:** 1.2Ah
- **Weight:** 0.57Kg
- **Dimensions:** 97mm (length) x 48mm (width) x 54.5mm (height including terminals)
- **Terminal Type:** 4.8mm (0.187") Male Spade Connectors
- **Battery Type:** Valve Regulated Lead Acid (VRLA), Sealed Lead Acid
- **Typical Lifespan:** 3–5 years depending on conditions

**Key Features & Benefits:**

- **Reliable Standby Power:** Ensures continuous performance and safety for your automatic doors in the event of a power interruption.
- **Maintenance-free Operation:** Fully sealed design requires no electrolyte maintenance, making the battery safe and convenient.
- **Flexible Mounting:** Can be installed in any orientation, offering versatile mounting options.
- **Robust and Durable Design:** Lead-calcium alloy grids enhance battery life and reliability.
- **Leak-Proof Construction:** Completely sealed construction ensures zero risk of electrolyte leakage.
- **Multipurpose Functionality:** Suitable for both cyclic (regular charging and discharging) and float (backup/emergency standby) applications.

The Record, Tormax, and Gilgen SLM battery packs typically require two of these batteries per operator to function correctly.

Ensure your automatic doors continue to operate safely and efficiently by regularly replacing batteries according to recommended maintenance schedules.

Always comply with relevant standards and regulations for automatic doors (EN16005). Professional installation and maintenance are recommended to ensure safety compliance and optimal battery performance.

View full details

FAQ's

Which automatic door operators are listed for this 12V 1.2Ah battery?

The listing identifies Record FTA107 bi-fold, Tormax and Gilgen SLM automatic door operators as compatible applications.

How many batteries are stated as required for these operator applications?

The description states that the Record FTA107, Tormax and Gilgen SLM applications use two of these 12V batteries per operator.

What are the stated battery dimensions?

The stated dimensions are 97mm long x 48mm wide x 54.5mm high including the terminals.

What terminal type is specified?

The product information specifies 4.8mm male spade connectors.

Should the existing battery specification be checked before replacement?

Yes. Confirm voltage, capacity, terminal type, physical size and the number of batteries required by the operator before ordering.
