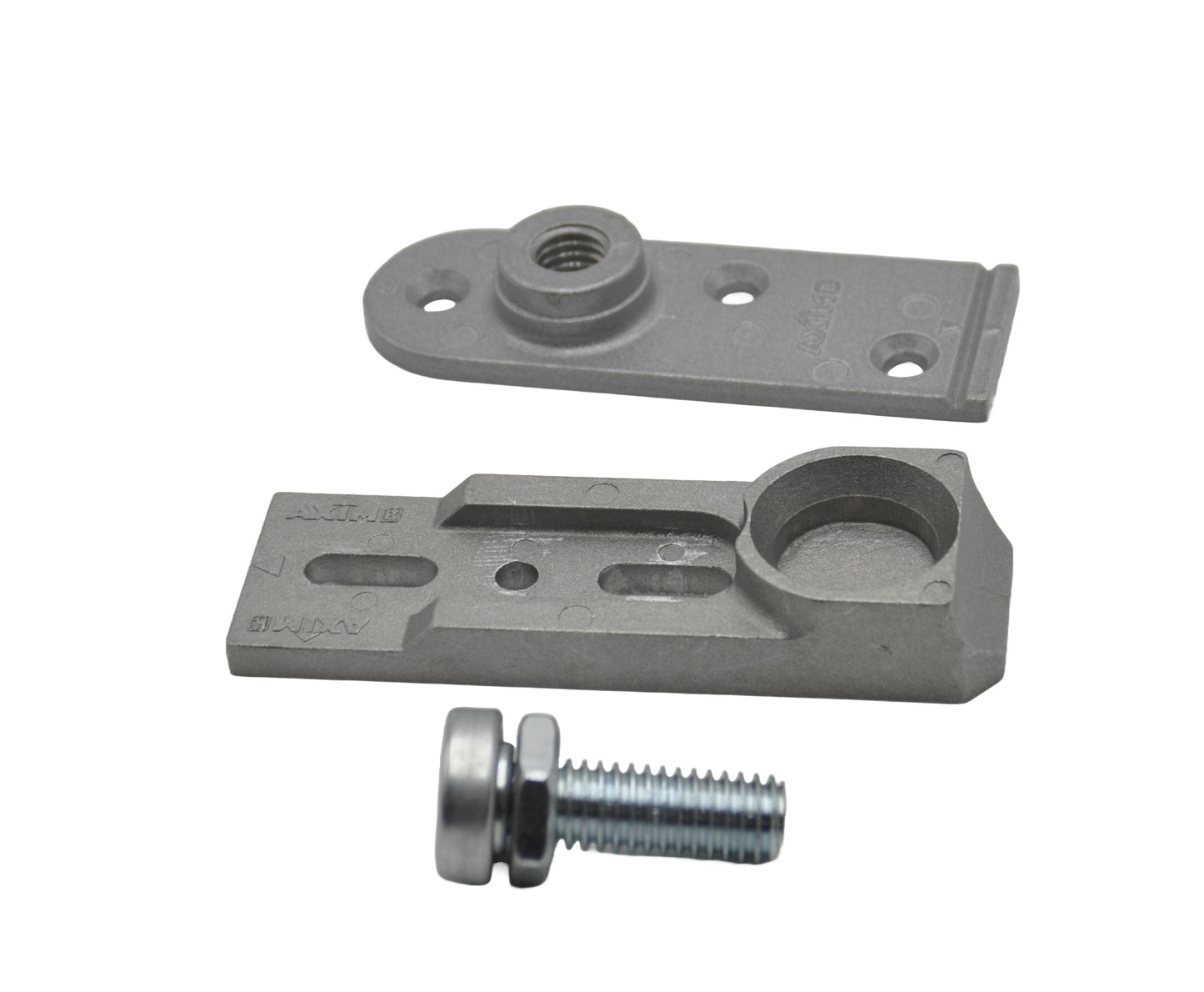

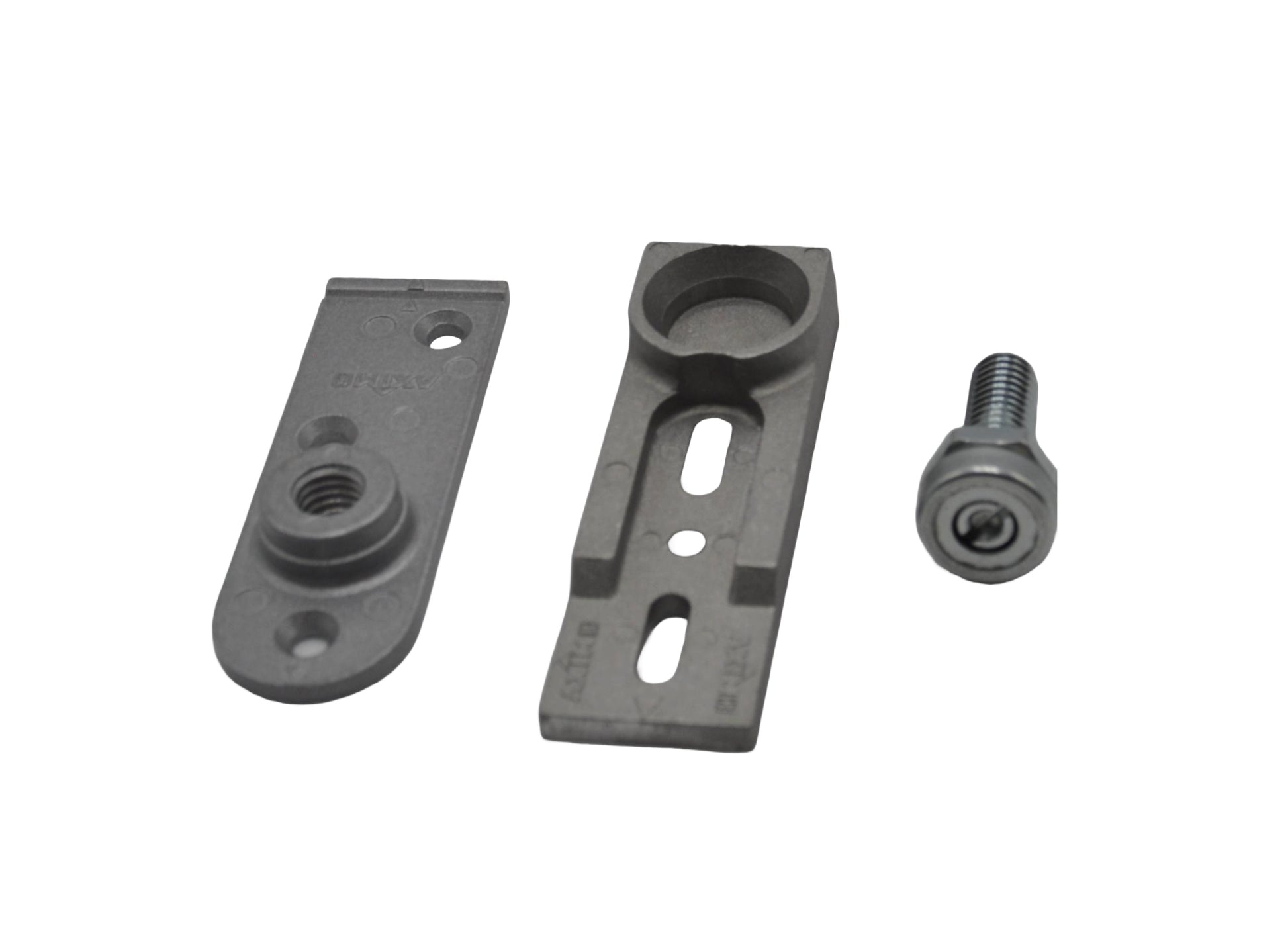

• An image showing the components of the Axim TC9500-17 Heavy Duty Bottom Pivot Set, which include aluminium pivot points and mounting hardware. On a white background.
  • An image showing the components of the Axim TC9500-17 Heavy Duty Bottom Pivot Set, which include aluminium pivot points and mounting hardware with fixings in clear packaging. On top of instructions with the word Axim printed on it. On a white background.
  • Top view of a beige rectangular box with Axim printed on it, on a white background.
  • An image showing the components of the Axim TC9500-17 Heavy Duty Bottom Pivot Set, which include aluminium pivot points and mounting hardware. On a white background.
  • An image showing the components of the Axim TC9500-17 Heavy Duty Bottom Pivot Set, which include aluminium pivot points and mounting hardware. On a white background.
1 5

Axim TC9500-17 Heavy Duty Bottom Pivot Set – Aluminium Door Pivot (Anti-Finger Trap)

Axim TC9500-17 Heavy Duty Bottom Pivot Set – Aluminium Door Pivot (Anti-Finger Trap)

Net: £11.29
Incl. VAT: £13.55
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Axim TC9500-17 Heavy Duty Bottom Pivot Set – Aluminium Door Pivot (Anti-Finger Trap)

The Axim TC9500-17 Heavy Duty Bottom Pivot Set offers exceptional durability, versatility, and precision-engineered performance for aluminium doors. Suitable for use with TC9900 transom closers, this pivot set includes fully adjustable height settings, anti-finger trap design, and robust radial bearings, ideal for commercial doors with a load capacity of up to 100kg.

Key Features:

  • Heavy-Duty Construction:
    Manufactured from high-grade, corrosion-resistant materials to withstand heavy traffic and provide long-lasting performance.

  • Adjustable Height:
    Precise height adjustment from 31.5mm to 58.5mm, with each full turn providing 2mm of adjustment for optimal alignment.

  • Flexible Pivot Points:
    Standard 70mm pivot for aluminium doors and an optional 65mm pivot for glass doors (adjustable via a 5mm groove line).

  • Radial Bearing for Smooth Operation:
    Features a durable radial bearing capable of handling door weights up to 100kg, ensuring smooth, effortless door control.

  • Anti-Finger Trap Design:
    Specifically engineered for enhanced safety, preventing finger entrapment in high-traffic environments.

Benefits of the Axim TC9500-17:

  • Exceptional Durability:
    Engineered to maintain reliable performance and alignment, even under constant use.

  • Simple Installation:
    Supplied complete with all necessary fixings, enabling quick, straightforward installation in floor or threshold applications.

  • Versatile Use:
    Ideal for aluminium doors in commercial or corporate settings, perfectly suited to anti-finger trap doors.

  • Sleek & Modern Appearance:
    Aluminium construction offers a contemporary look, resistant to corrosion and suitable for varied architectural styles.

Technical Specifications:

  • Compatible Closers: Axim TC9900 transom closers

  • Pivot Point: 70mm standard (65mm adjustable for glass doors)

  • Load Capacity: 100kg maximum

  • Height Adjustment: 31.5mm – 58.5mm (2mm per full turn)

  • Installation: Suitable for floor or threshold fixing

  • Materials: High-grade aluminium, corrosion-resistant finish

  • Included Components: Complete fixing kit, instructions

View full details

FAQ's

Which transom closer is the Axim TC9500-17 Bottom Pivot Set listed for?

It is listed for compatible Axim TC9900 transom closer installations.

What pivot positions are available on the TC9500-17?

The listing states a standard 70mm pivot position and a 65mm option for glass doors using the 5mm adjustment groove.

What height adjustment range is provided?

The stated height adjustment range is 31.5mm to 58.5mm, with approximately 2mm adjustment per full turn.

What maximum door weight is stated?

The listing states a maximum door load of 100kg.

Where can the TC9500-17 be installed?

The pivot set is listed for compatible floor or threshold fixing applications.
