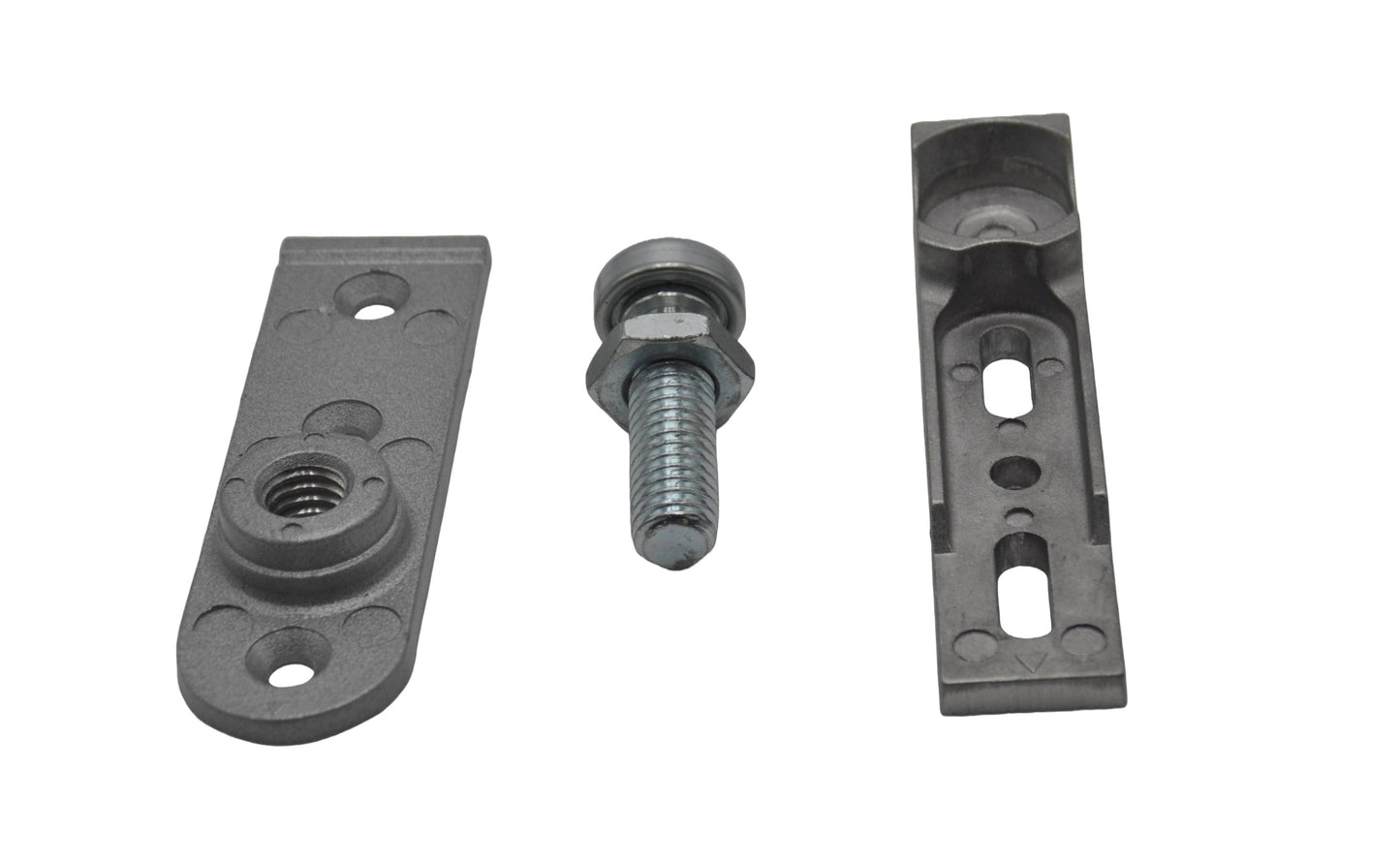

• An image showing two components of the Axim TC-8800-02 Aluminium Door Bottom Pivot, including a pivot point and an attachment plate, both made from aluminium. On a white background.

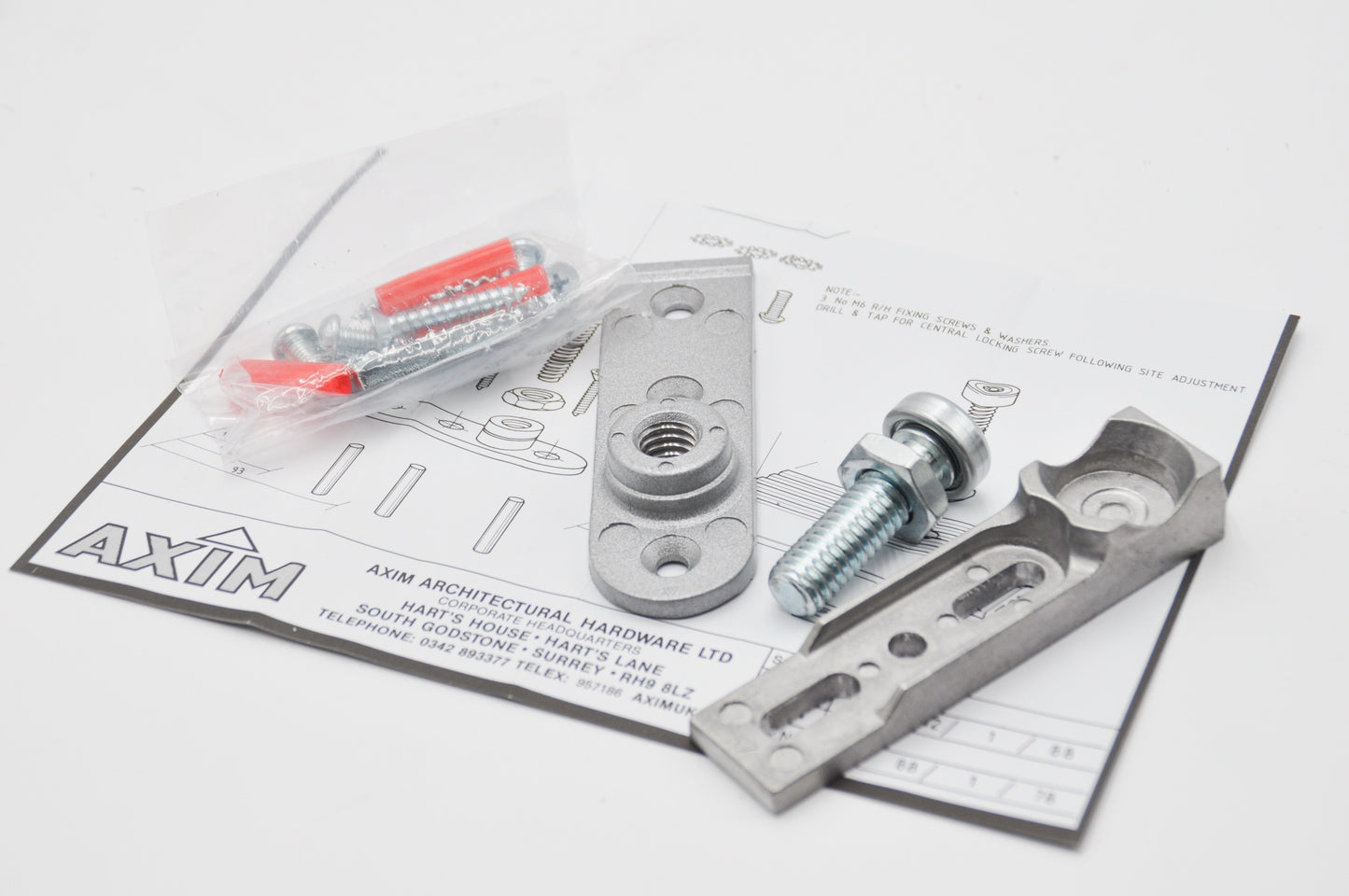

  • An image showing two components of the Axim TC-8800-02 Aluminium Door Bottom Pivot, including a pivot point and an attachment plate, both made from aluminium, on top on instructions with black text and the Axim logo on with fixings in clear packaging. On a white background.
  • Top view of a rectangular beige box with the Axim logo, on a white background.

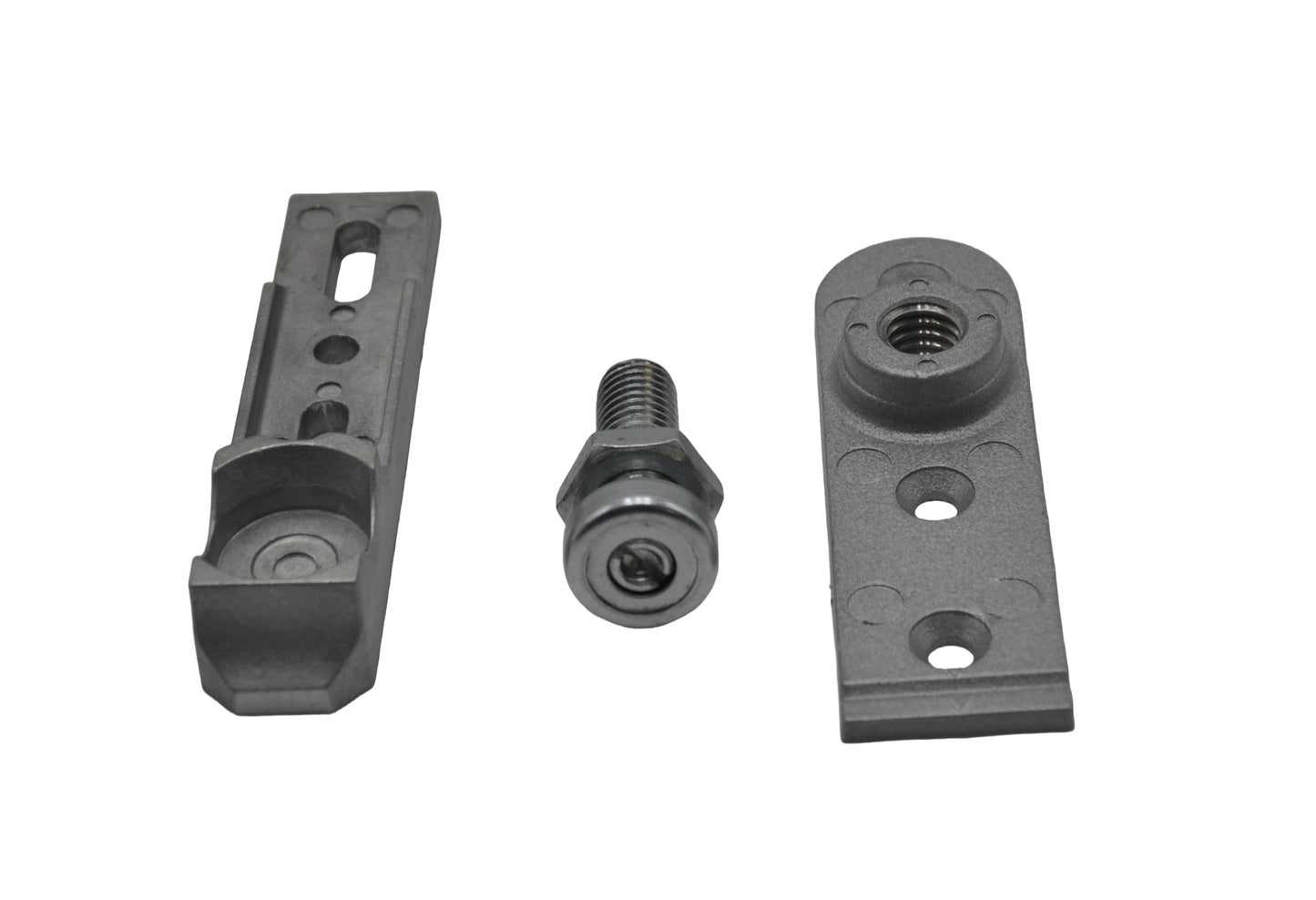

  • An image showing two components of the Axim TC-8800-02 Aluminium Door Bottom Pivot, including a pivot point and an attachment plate, both made from aluminium. On a white background.

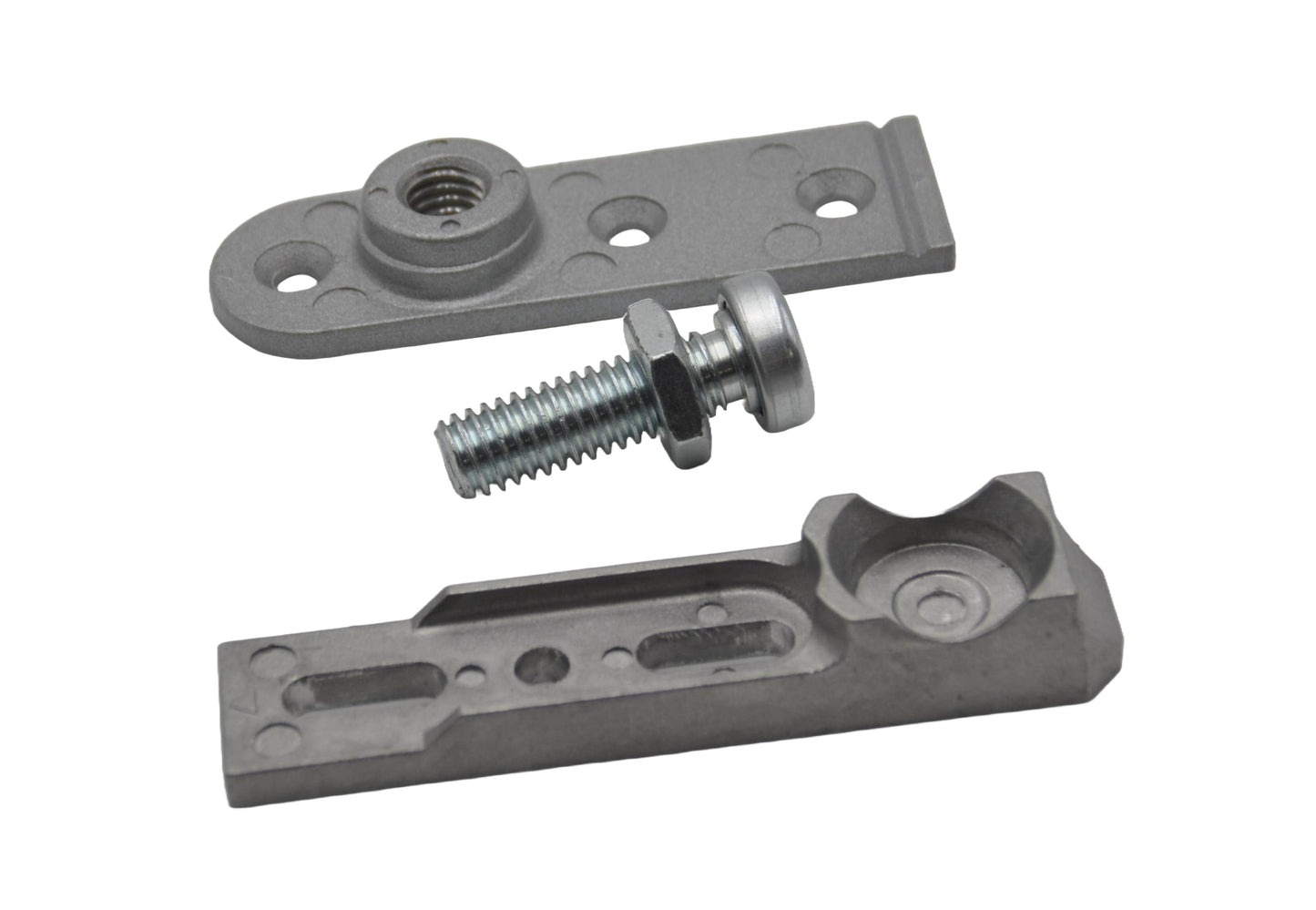

  • An image showing two components of the Axim TC-8800-02 Aluminium Door Bottom Pivot, including a pivot point and an attachment plate, both made from aluminium. On a white background.
1 5

Axim TC-8800-02 Aluminium Door Bottom Pivot

Axim TC-8800-02 Aluminium Door Bottom Pivot

Net: £11.29
Incl. VAT: £13.55
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Instruction Manual

View Manual

Axim TC-8800-02 Aluminium Door Bottom Pivot – Top-Loading for TC-8802 Transom Closers

The Axim TC-8800-02 Bottom Pivot is specifically designed for smooth operation and effortless installation with aluminium doors. Compatible with the TC-8802 transom concealed door closer, this pivot features a robust aluminium construction, top-loading design, and precise height adjustments. Ideal for commercial environments, it ensures reliable performance and easy maintenance.

Key Features:

  • Robust Aluminium Construction:
    Built from premium aluminium, this pivot is highly durable, corrosion-resistant, and ideal for heavy-use commercial applications.

  • Adjustable Height:
    Offers precise height adjustment from 31.5mm to 58.5mm, with each full turn providing 2mm incremental adjustments for accurate door alignment.

  • Versatile Pivot Points:
    Includes a standard 70mm pivot point for aluminium doors, with a 65mm option for glass doors.

  • Top-Loading for Easy Installation:
    Simplifies installation and maintenance, allowing quick and straightforward adjustments without removing the door entirely.

  • Complete Installation Kit:
    Supplied with all necessary fixings for secure and stable floor or threshold mounting.

Benefits of the Axim TC-8800-02:

  • Reliable Performance:
    Ensures smooth door operation, making it ideal for busy environments.

  • Easy Maintenance:
    The top-loading design simplifies ongoing adjustments and maintenance tasks, reducing downtime.

  • Long-Lasting Durability:
    Engineered for continuous use in commercial applications, offering longevity and resilience.

  • Universal Application:
    Suitable for a wide variety of aluminium and glass door installations, enhancing versatility.

Technical Specifications:

  • Compatibility: TC-8802 transom concealed door closer

  • Pivot Point: 70mm standard, 65mm for glass doors

  • Height Adjustment: 31.5mm – 58.5mm (2mm per full turn)

  • Installation: Floor or threshold fixing (top-loading)

  • Materials: High-quality aluminium

  • Included Components: Pivot, fixings, comprehensive installation instructions

View full details

FAQ's

Which concealed closer is the Axim TC-8800-02 Bottom Pivot designed for?

It is specifically listed for use with the Axim TC-8802 transom concealed door closer.

What pivot positions are listed for the TC-8800-02?

The listing states a 70mm standard pivot point and a 65mm option for glass doors.

What height adjustment range is provided?

The product information states an adjustment range from 31.5mm to 58.5mm, with approximately 2mm per full turn.

What does top-loading mean on this bottom pivot?

The top-loading design is intended to simplify installation and adjustment from above in a compatible door arrangement.

Where can the TC-8800-02 be fixed?

The listing states that it is suitable for compatible floor or threshold fixing.
