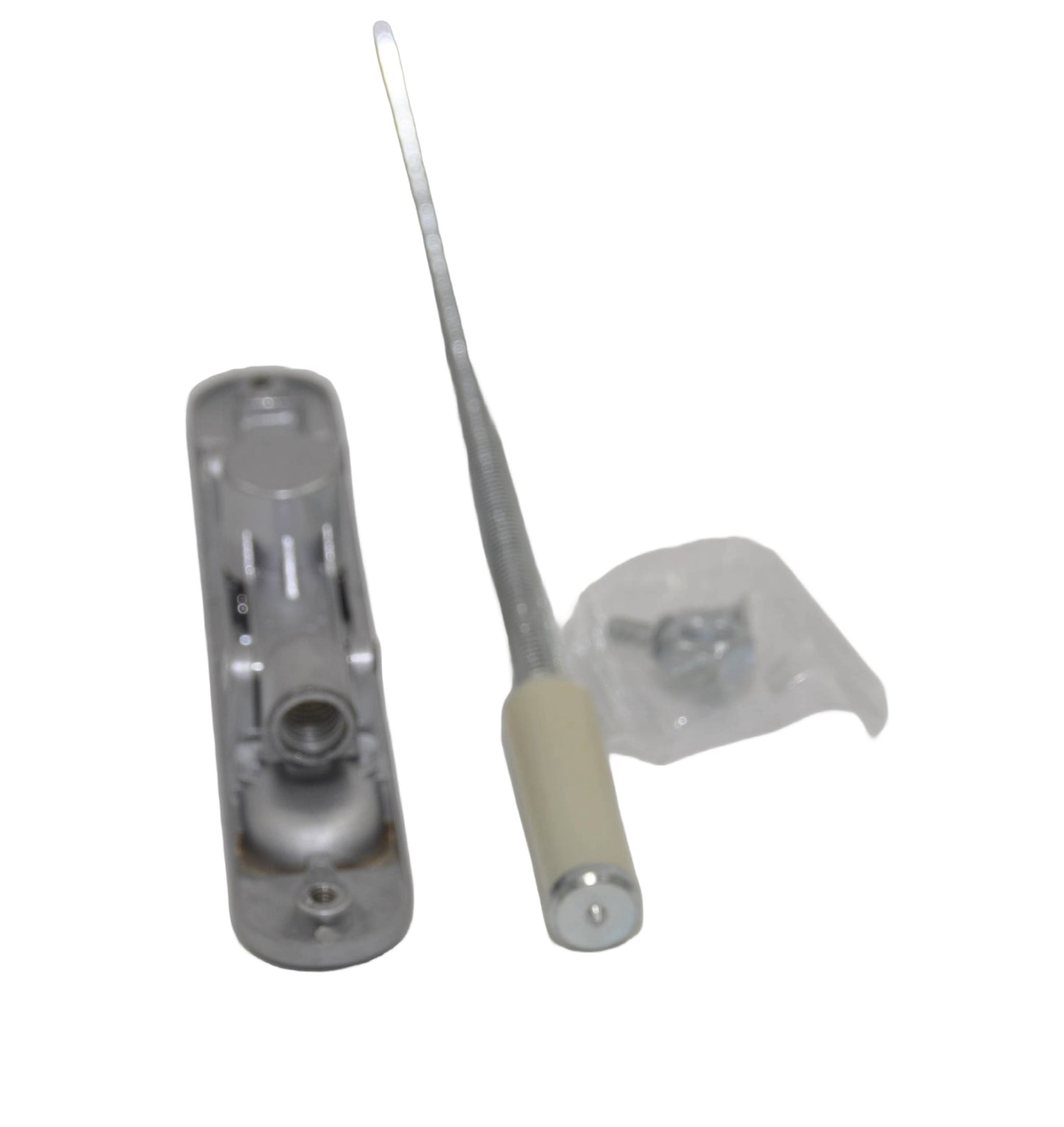

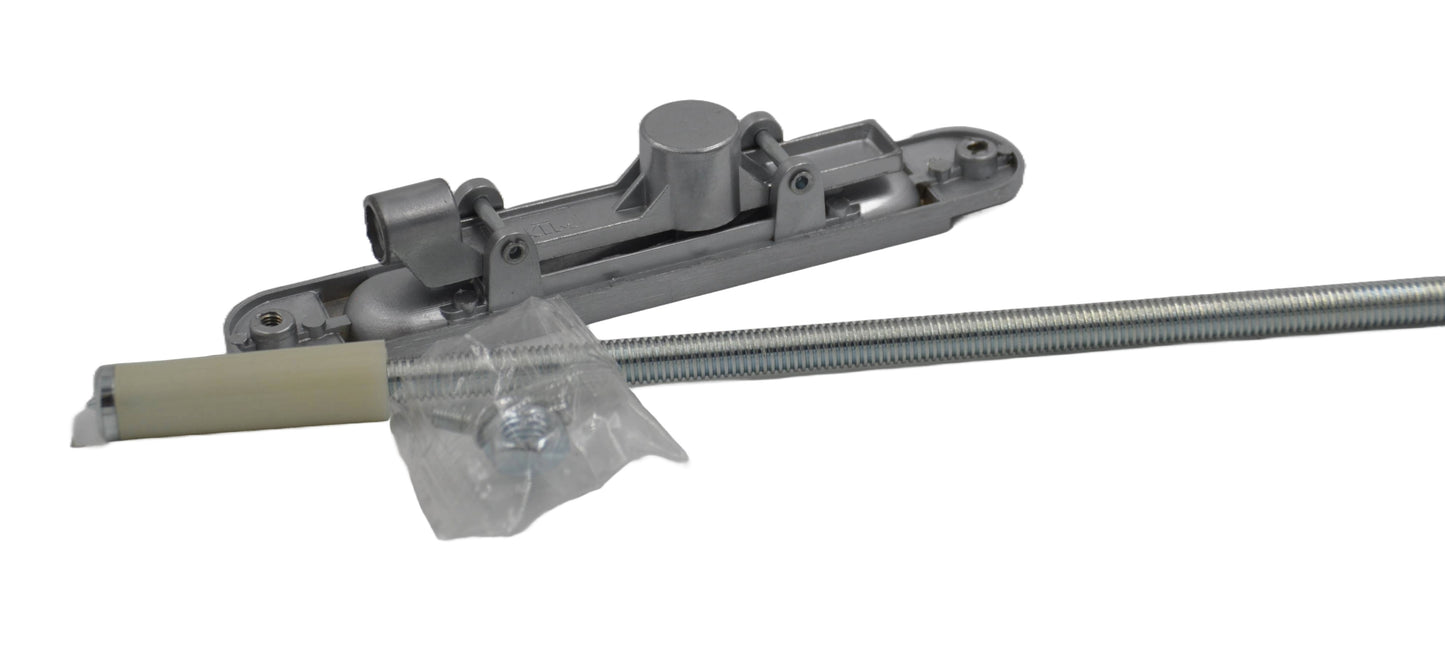

• Axim FB-6201-F12 Flush Bolt Lever Action, with threaded bolt, Silver Finish with nut and bolt in clear packaging on a white background.
  • Axim FB-6201-F12 Flush Bolt Lever Action, with threaded bolt, Silver Finish with nut and bolt in clear packaging on a white background.

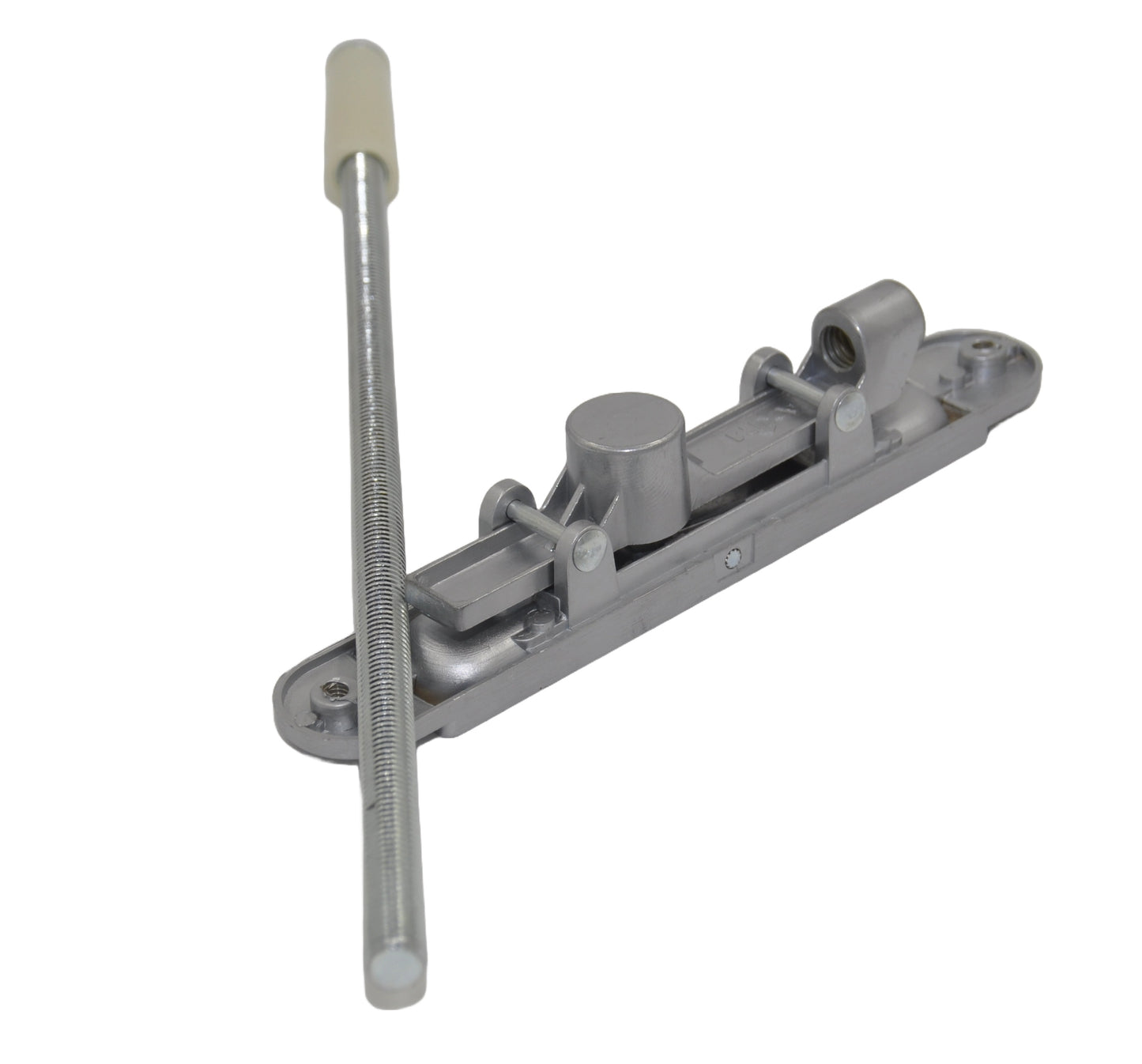

  • Axim FB-6201-F12 Flush Bolt Lever Action, with threaded bolt, Silver Finish on a white background.

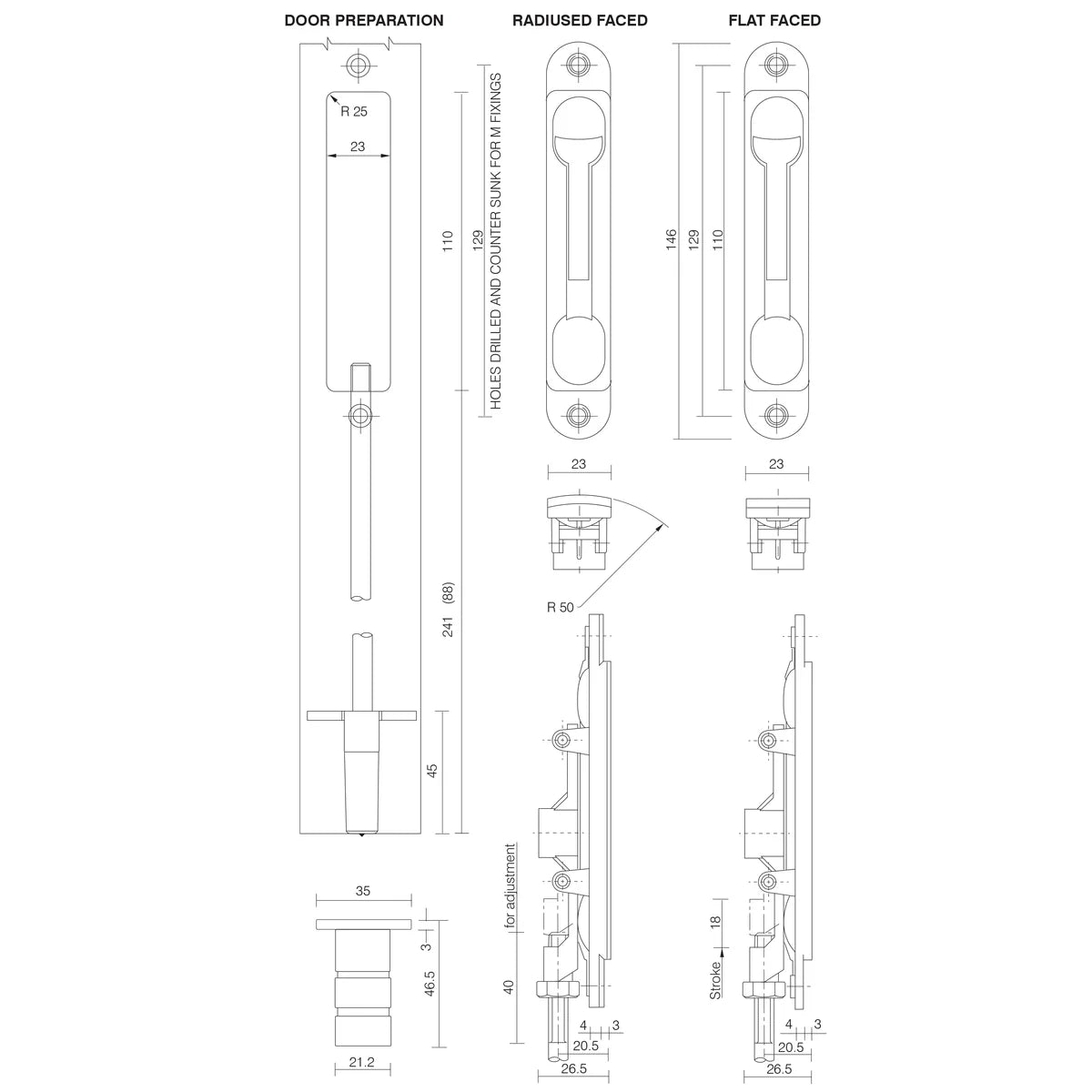

  • White Installation template for a Axim FB-6201-F12 Flush Bolt Lever Action.
1 5

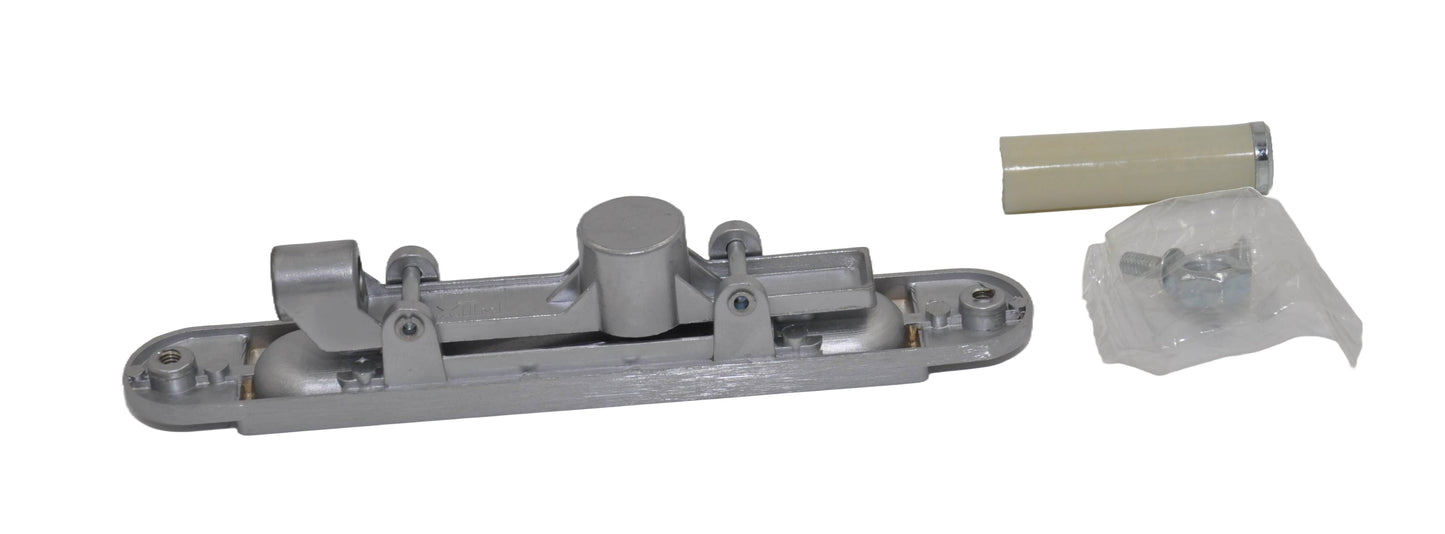

Axim FB-6201-F12 Flush Bolt Lever Action, Silver Finish

Axim FB-6201-F12 Flush Bolt Lever Action, Silver Finish

Net: £10.70
Incl. VAT: £12.84
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Axim FB-6201-F12 Flush Bolt –  Lever Action, Silver Finish

The Axim FB-6201-F12 Flush Bolt is a robust, high-security door bolt specifically designed to secure the inactive leaf of double doors. Featuring a flat-faced, lever-action design in an attractive silver finish, this flush bolt ensures discreet installation and ease of operation. With a fully threaded rod that can easily be cut to the desired length, the FB-6201-F12 offers versatility, durability, and maximum door security.

Key Features & Benefits:

  • Maximum Security:
    Designed with a hardened, zinc-plated steel bolt and anti-rattle sleeve to ensure reliable protection and secure locking of doors.

  • Flat-Faced Lever Action:
    Smooth, flat design with easy-to-operate lever for quick and comfortable bolt engagement.

  • Flexible Threaded Rod:
    Fully threaded rod can be effortlessly trimmed to the required length, ensuring a customised fit for any door height.

  • Discreet & Professional Appearance:
    Sleek, flat-faced design in a silver finish seamlessly integrates into modern doors, offering an unobtrusive aesthetic.

  • Durable & Long-Lasting:
    Robust construction using high-quality materials, guaranteeing extended performance and resistance to wear and corrosion.

Technical Specifications:

  • Model: Axim FB-6201-F12

  • Bolt Type: Flush, lever-action, flat face

  • Width Options:

    • Flat – 23mm wide

    • Radius – 23mm wide

    • Narrow Flat – 20mm wide

  • Bolt Material: Hardened steel, zinc-plated

  • Finish: Silver

  • Installation: Rebated into door (morticed top and bottom)

  • Adjustability: Fully threaded rod, can be cut to length

View full details

FAQ's

What is the Axim FB-6201-F12 Flush Bolt used for?

It is designed to secure the inactive leaf of a compatible double-door set.

What type of operation does the flush bolt use?

The FB-6201-F12 is listed as a flat-faced lever-action flush bolt.

Can the flush-bolt rod be shortened?

Yes. The listing states that the fully threaded rod can be cut to the required length.

What material is the bolt made from?

The bolt is described as hardened zinc-plated steel with an anti-rattle sleeve.

Which face widths are listed?

The product information lists 23mm flat, 23mm radius and 20mm narrow-flat face options.
