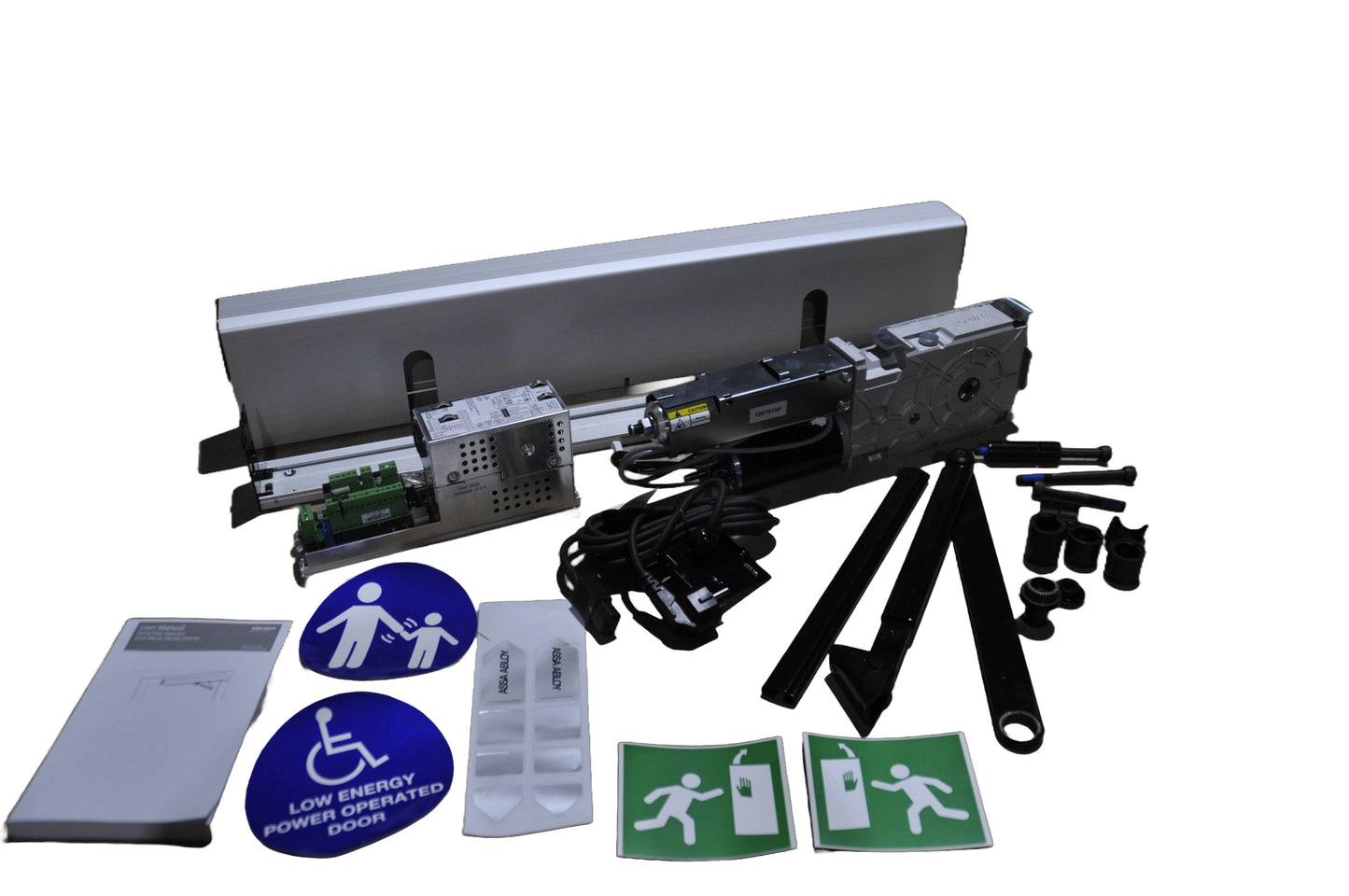

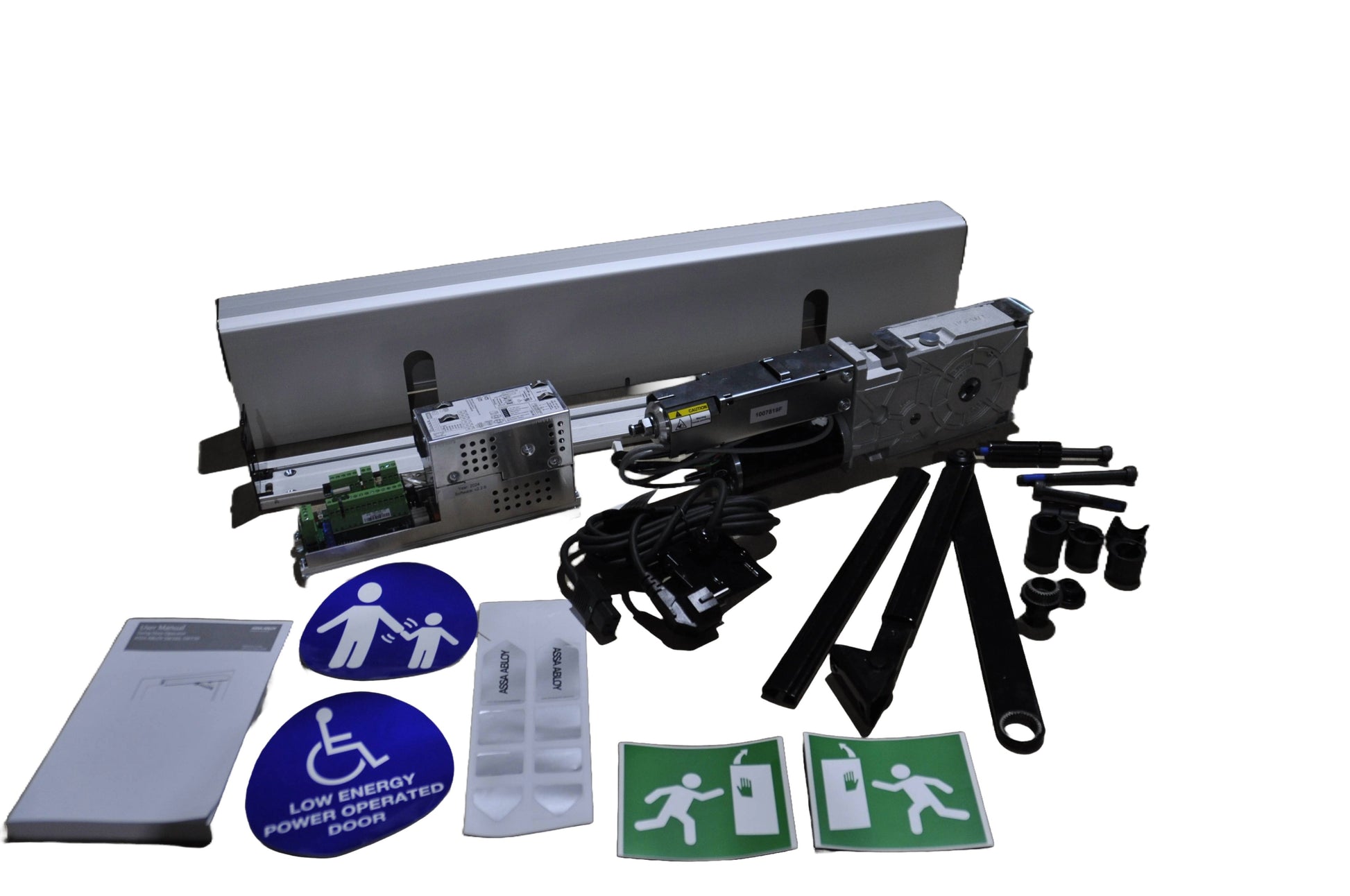

Assa Abloy - SW300 Push - BK

ASSA ABLOY SW300 Automatic Swing Door Operator - Push -  Black Endcaps and arm

The ASSA ABLOY SW300 is a robust, high-performance automatic swing door operator engineered for heavy-duty use. Designed to operate large and heavy doors — including fire-rated and high-traffic applications — the SW300 delivers smooth, quiet, and reliable automation in demanding environments.

It offers full compliance with safety and accessibility standards, with advanced functionality and configuration flexibility to suit a wide range of installations.

Key Features & Benefits

Heavy-Duty Capacity – Up to 450 kg
Capable of automating extremely heavy swing doors, including wide or high-inertia leaves, without compromising performance.

Certified for Fire Door Applications
Approved for use on fire-rated doors with compatible hardware. Double-door coordinator options available for compliant installations.

Dual Operation Modes
Supports both low-energy and fully automatic operation — adjustable to meet accessibility needs or security preferences.

Obstacle Detection & Safety Reversal
Advanced safety logic ensures the door reacts to obstructions and supports compliance with EN16005 and BS7036standards.

Flexible Configuration
Adjust opening and closing speeds, hold-open times, activation methods (e.g. push & go), and more via on-board controls or external selectors.

Quiet, Electro-Mechanical Drive
Smooth and near-silent in operation, making it ideal for environments where quiet automation is essential — such as healthcare, offices, and residential care.

Push or Pull Mounting Options

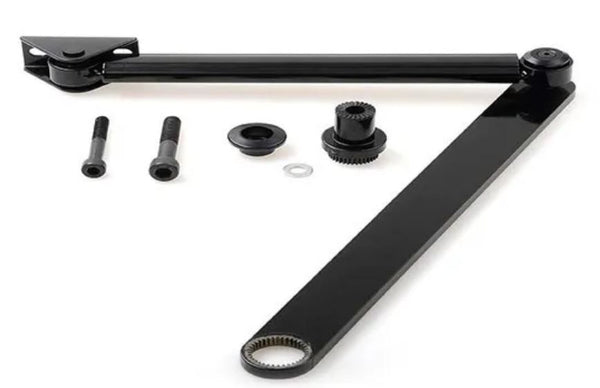

Available with both push-arm and pull-arm kits to accommodate different door and frame types.

Technical Summary

• Power Supply: 100–240 V AC, 50/60 Hz

• Motor Type: Electro-mechanical, 24 V DC

• Maximum Door Weight: Up to 450 kg

• Max Door Width: Typically up to 1600 mm (depending on door leaf type and arm system)

• Max Inertia:
    • Push: 140 kg·m²
    • Pull: 80 kg·m²

• Temperature Range: –20 °C to +45 °C

• Protection Class: IP20

• Compliance: EN16005, EN1634, EN1158, DIN 18263-4

• Installation: Surface mounted (push or pull side)

• Supports Accessories: Safety sensors, fire alarms, battery backup, key switches, programme selectors

The ASSA ABLOY SW300 is the ideal solution for locations that demand maximum strength, safety, and flexibility— whether automating large entrance doors, escape routes, or fire-rated access points.
