Assa Abloy - SW200 Push, Black

SSA ABLOY SW200 Automatic Swing Door Operator – Push Version with Black Endcaps and Arm

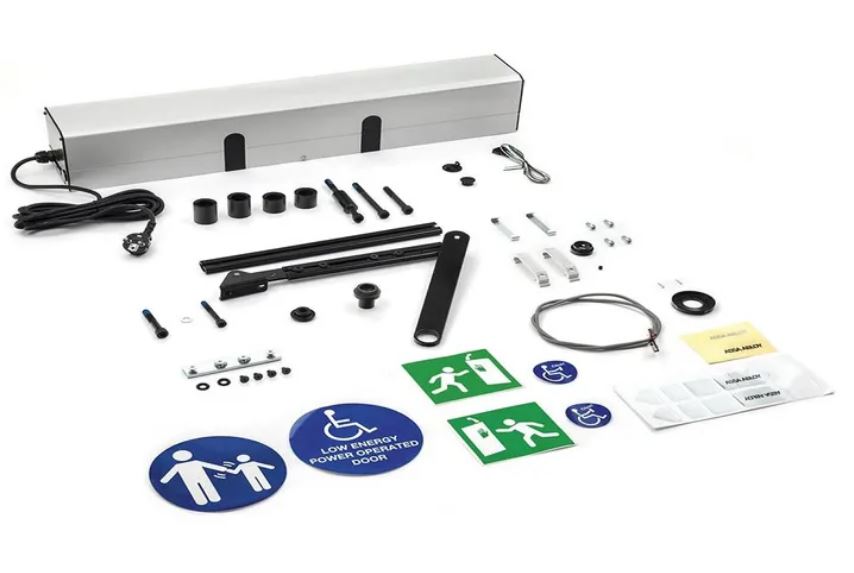

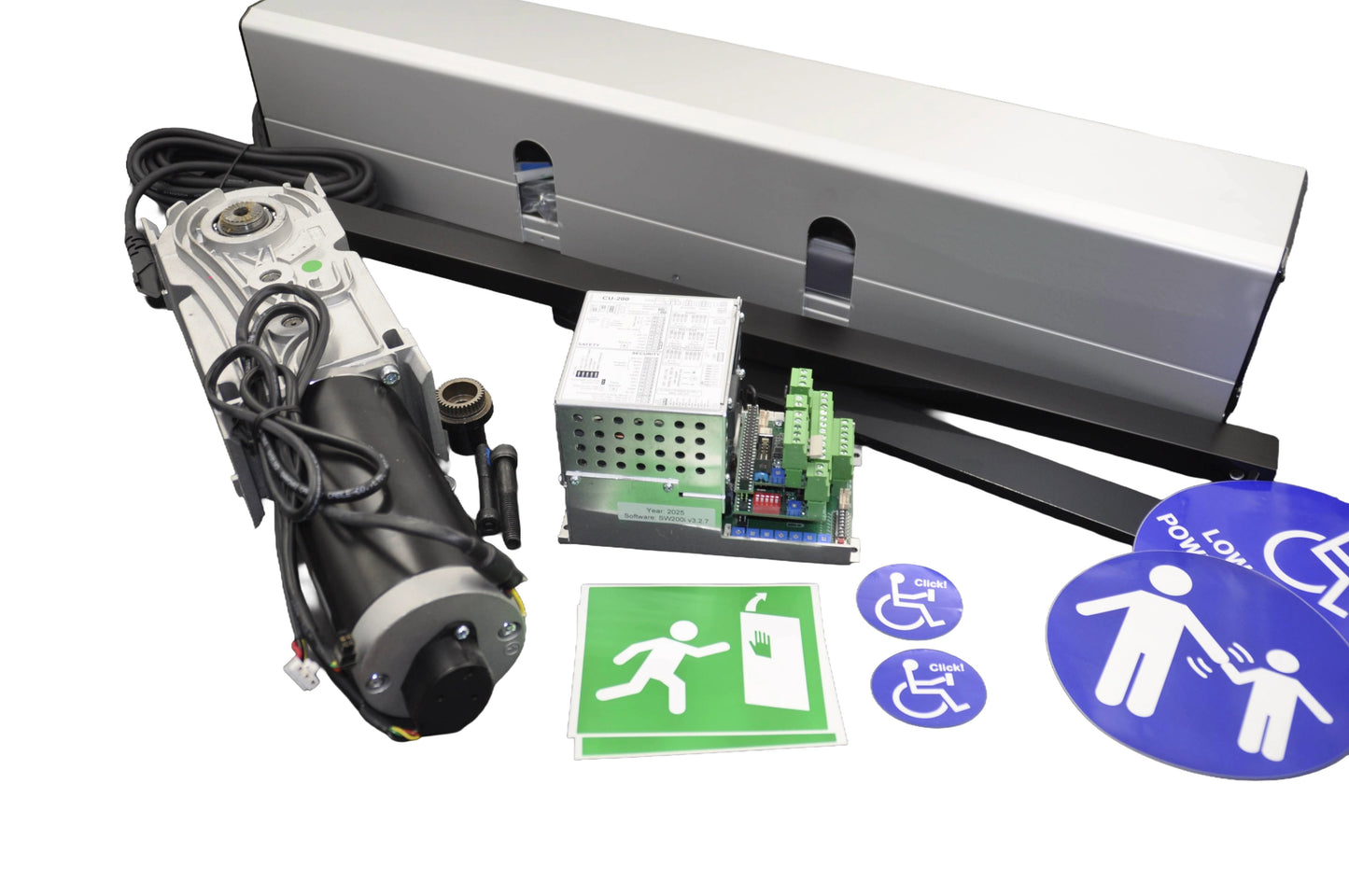

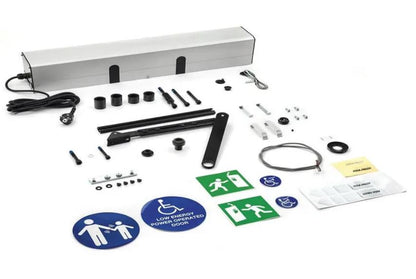

Complete operator package with shaft extension kit 20/50/70 mm, Telescopic part for reveal A=110-235 mm, Joint assemble,
Micro switch, cam kit, ON/OFF/Hold open switch, EXU-SI, SA-boards, silver anodized cover and Black arm system.

The ASSA ABLOY SW200 Push Operator is a powerful, intelligent automatic swing door system designed for heavy-duty applications. Supplied with black endcaps and a matching black push arm, this version offers a modern, architectural finish ideal for commercial and public-facing environments.

With support for large door sizes and high-use areas, the SW200 is suitable for fire-rated doors, escape routes, and DDA-compliant access points. Its electro-mechanical drive ensures smooth, quiet operation with adjustable functionality to suit a wide range of installations.

Key Features & Benefits

• High Load Capacity
  Handles large and heavy door leaves with ease — ideal for busy, high-traffic environments.

• Push Configuration
  Designed for hinge-side (push-side) installation, this version is supplied with a black push arm and black endcaps for a professional finish.

• Full Opening Angle
  Capable of opening up to 180°, offering clear and wide access in demanding environments. (Separate arm Required)

• Low-Energy and Fully Automatic Modes
  Operates in either low-energy mode (assisted opening) or fully automatic mode, configurable to suit user requirements and safety regulations.

• Fire Door Compatible
  Can be used on fire-rated doors when installed with approved accessories and configured appropriately.

• Battery Backup Support
  Optional battery backup ensures continued function during power outages, helping maintain accessibility and safety.

• Built-In Safety Logic
  Includes intelligent obstacle detection, safety reversal, and manual override — fully compliant with EN16005.

• Quiet & Reliable Operation
  Electro-mechanical drive ensures smooth, silent operation, ideal for use in hospitals, care homes, and offices.

Technical Summary

• Power Supply: 100–240 V AC, 50/60 Hz

• Power Consumption: Max. 300 W

• Motor Type: Electro-mechanical, 24 V DC

• Max Door  (Push): Up to 160 kg·m²

• Opening Angle: Up to 180°

• Mounting: Surface-mounted – push arm

• Finish: Black endcaps and black push arm

• Operating Temperature: –20 °C to +45 °C

• Protection Rating: IP20

• Compliance: EN16005, EN1634, EN1158, DIN 18263-4

• Supports: Safety sensors, access control, key switches, battery backup, fire coordination kits
