Assa Abloy - SW100 Pull, Black

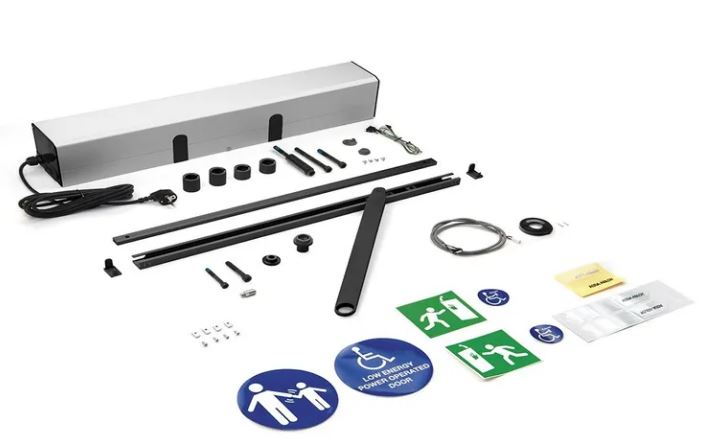

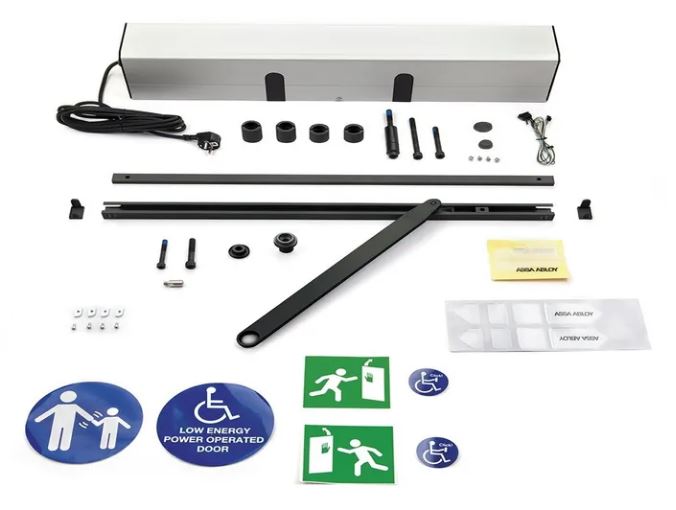

Assa Abloy SW100 – Pull Version with Black Endcaps and Arm

The Assa Abloy SW100 is a low-energy swing door operator, designed for smooth, safe, and efficient door automation in commercial and public buildings. This pull-arm version is supplied with black endcaps and a black pull arm, offering a clean, modern look that complements contemporary architectural styles.

Comes with an SA Card for safety. SI Cards are available separately.

Key Features & Benefits

• Pull Configuration
  Designed for mounting on the opposite side to the door hinges, this version pulls the door open. Suitable for inward-opening applications.

• Black Endcaps and Arm Assembly
  A sleek visual upgrade featuring a black pull arm and matching black endcaps—ideal for design-conscious installations.

• Low-Energy Operation
  Provides assisted opening and closing for improved accessibility, while maintaining quiet and energy-efficient operation. Fully compliant with low-energy door standards.

• Customisable Settings
  Adjustable hold-open time, opening/closing speed, and manual push resistance for tailored door behaviour.

• Compact, High-Reliability Unit
  Slim operator housing suitable for surface mounting on single or double swing doors. Engineered for durability and minimal servicing.

• Safety Integration
  Compatible with safety sensors, access control, and emergency systems. Fully suitable for use in EN16005-compliant installations.

Technical Summary

• Operator Type: Electro-mechanical swing door operator

• Mounting: Pull-side installation (opposite hinge side)

• Finish: Black endcaps and black articulated pull arm

• Power Supply: 230V AC input / 24V DC motor

• Door Weight Capacity: Up to 250 kg (depending on configuration)

• Opening Angle: Up to 115°

• Handing: Non-handed (configurable left or right)
