Assa Abloy - SW100 (Pair)

ASSA ABLOY SW100 Automatic Swing Door Operators (Pair) – Double Door Kit

The ASSA ABLOY SW100 Double Operator Kit includes two SW100 swing door operators, purpose-built to automate a pair of swing doors with smooth, quiet, and energy-efficient operation. Ideal for internal or external double-leaf doors, this kit is suitable for use in care homes, hospitals, offices, and other public buildings where accessibility, safety, and low-energy performance are essential.

The SW100 supports low-energy and full-power modes, offering quiet movement, adjustable functionality, and full compliance with EN16005 and DDA standards.

Key Features & Benefits

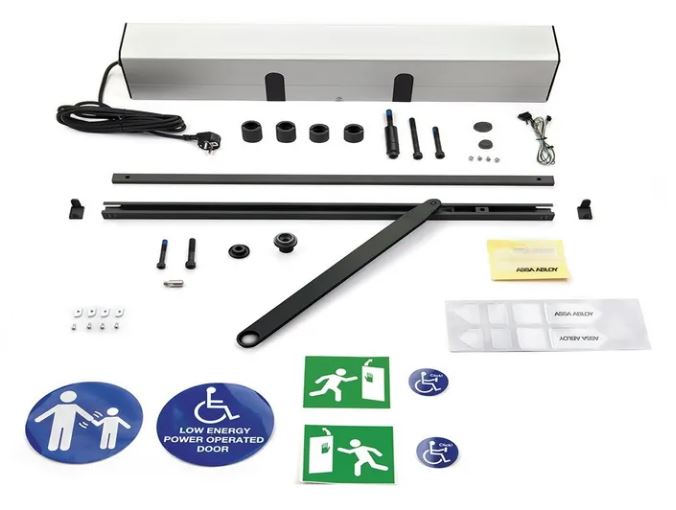

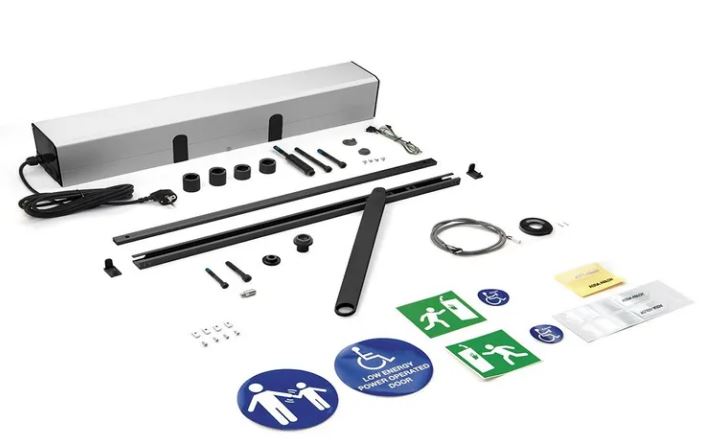

Double Operator Kit for Paired Doors
Supplied as a coordinated set of 2x SW100 operators, perfect for double-door installations with or without a rebated centre stile.

Low-Energy and Full-Power Operation
Programmable to run in low-energy mode for assisted opening or fully automatic mode for hands-free access — adaptable to meet various accessibility requirements.

Quiet and Efficient Performance
Electro-mechanical operation ensures low noise levels, smooth movement, and reduced power consumption — ideal for noise-sensitive environments such as hospitals or offices.

Push or Pull Arm Compatible
Both units can be fitted with push or pull arms, allowing flexible mounting based on door handing and installation layout.

Fire Door Ready
Can be used on fire-rated doors when installed with approved hardware and accessories. Supports double-door coordination if required.

Built-In Safety Logic
Obstacle detection and safety reversal features support full compliance with EN16005, protecting users and maintaining safe operation in all settings.

Technical Summary (Per Operator)

• Power Supply: 100–240 V AC, 50/60 Hz

• Motor Type: Electro-mechanical, 24 V DC

• Max Door Weight: Up to 250 kg

• Max Door Width: Up to 1100 mm

• Mounting: Surface-mounted (push or pull)

• Operating Temp: –20 °C to +50 °C

• Ingress Protection: IP30

• Compliance: EN16005, EN1634, EN1158, DIN 18263-4

• Supports: Safety sensors, access control, programme selectors, battery backup, fire door coordination

Applications

• Double swing door sets

• Healthcare facilities and care homes

• Offices, retail, and commercial buildings

• Public sector entrances and corridors

• Fire escape routes and DDA-compliant access points

The ASSA ABLOY SW100 Dual Operator Kit is a reliable, energy-efficient solution for automating paired swing doors, offering smooth operation, high safety standards, and flexible configuration for a wide range of building environments.
