Assa Abloy - Slide-Track arm system PUSH-180 - SI - SW200

Assa Abloy - Slide-Track arm system PUSH-180 - SI - SW200

Net: £608.30
Incl. VAT: £729.96
Taxes included.

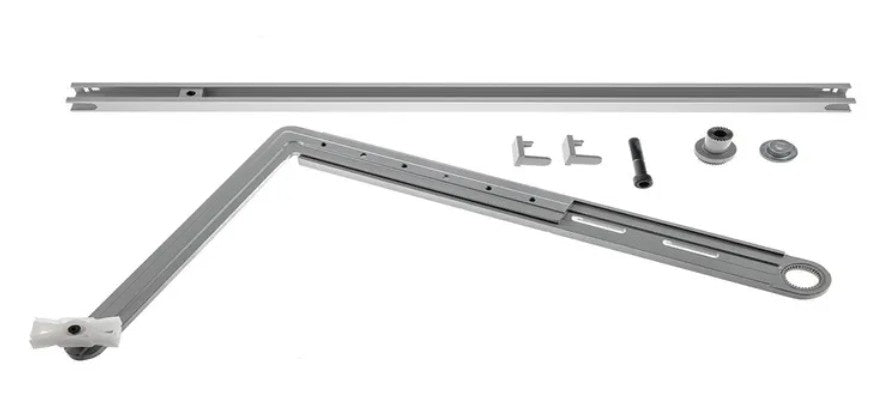

ASSA ABLOY Slide-Track Arm System – PUSH-180, Silver (SI) – For SW200 – Article No. 1012012SI

The ASSA ABLOY PUSH-180 Slide-Track Arm System (Article No. 1012012SI) is specifically designed for use with the SW200 automatic swing door operator. Supplied in silver (SI) finish, this arm system enables push-side installation with an opening angle of up to 180°, making it ideal for wide-clearance applications in commercial and public buildings.

Engineered for energy efficiency and smooth operation, the PUSH-180 system is suitable for reveals ranging from 0 to 305 mm, and supports energy performance rating 095, aligning with thermally efficient door setups.

Key Features & Benefits

  • 180° Opening Capability
    Allows the door to fully open for maximum accessibility and wide clearances — ideal for high-traffic environments.



  • Push-Side Configuration
    Designed for mounting on the hinge side of the door, pushing the leaf open via a slide-track mechanism.



  • Silver Finish (SI)
    Clean, satin aluminium appearance that matches standard operator covers and blends seamlessly with modern door frames.



  • Extended Reveal Support
    Compatible with reveal depths from 0 to 305 mm, offering flexible installation in varied wall or frame conditions.



  • Energy Performance Rated
    Supports energy class 095, making it suitable for thermally improved or efficiency-conscious installations.



  • Optimised for SW200
    Designed and approved for use with the ASSA ABLOY SW200 operator only, ensuring proper mechanical and operational compatibility.

Technical Summary

  • Article Number: 1012012SI
  • Product Type: Slide-track arm system
  • Configuration: Push-side (hinge side)
  • Opening Angle: Up to 180°
  • Finish: SI (Silver – Satin Anodised Aluminium)
  • Reveal Range: 0–305 mm
  • Energy Class: 095
  • Compatible Operator: ASSA ABLOY SW200 only
  • Mounting: Surface mount to frame and door leaf via slide channel
View full details

FAQ's

Which system is the Assa Abloy - Slide-Track arm system PUSH-180 - SI - SW200 compatible with?

The Assa Abloy - Slide-Track arm system PUSH-180 - SI - SW200 is designed for use with use with the SW200 automatic swing door operator. Confirm your operator or door model matches before ordering to ensure a correct fit.

Which system is the Assa Abloy - Slide-Track arm system PUSH-180 - SI - SW200 compatible with?

ASSA ABLOY Slide-Track Arm System – PUSH-180, Silver (SI) – For SW200 – Article No.

How can I confirm this is the correct part?

This part carries article number 1012012. Quote that number against your parts list or the number on your existing component to confirm it is the right replacement.

How is the Assa Abloy - Slide-Track arm system PUSH-180 - SI - SW200 fitted?

The Assa Abloy - Slide-Track arm system PUSH-180 - SI - SW200 is surface mount to frame and door leaf via slide channel. Confirm this suits your installation and existing preparation before fitting.

Where is this typically used?

It is ideal for wide-clearance applications in commercial and public buildings. That makes it well suited to commercial and high-traffic automatic door installations.
