Assa Abloy - Sensor SP56-M IXIO ST

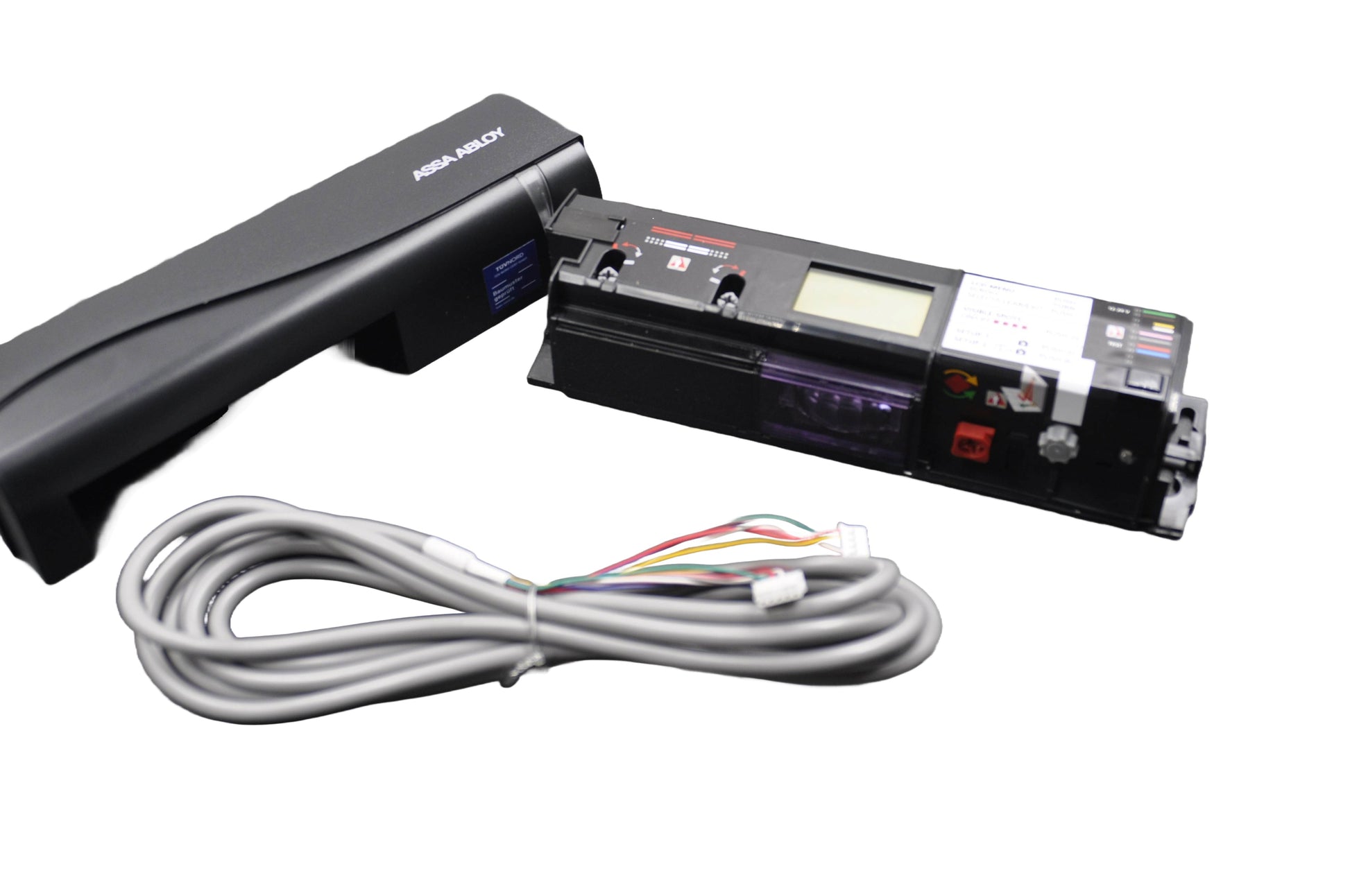

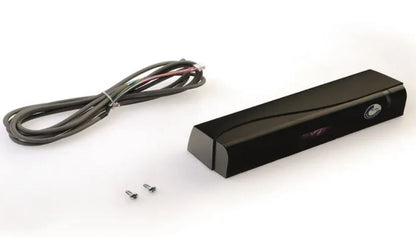

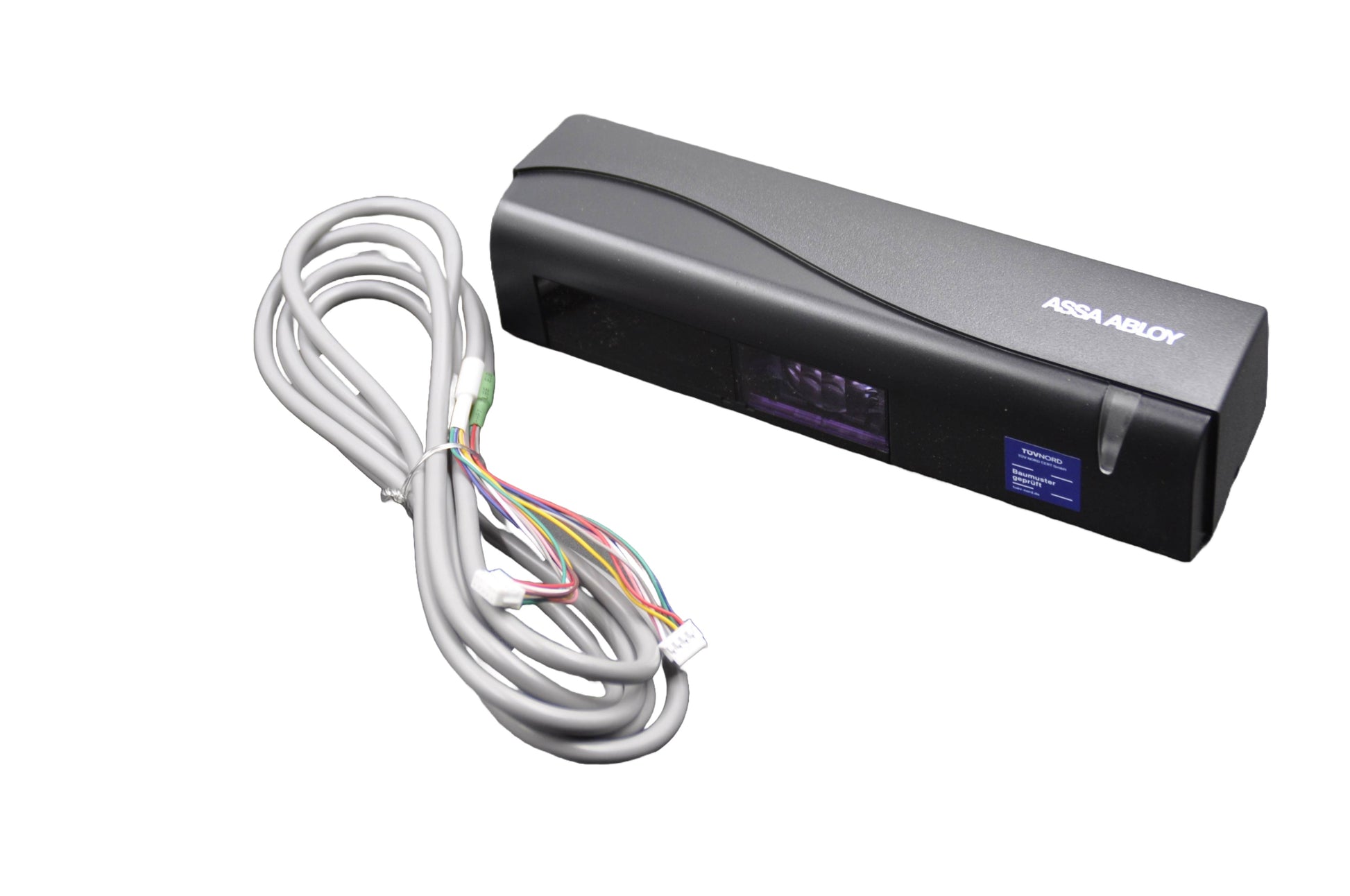

ASSA ABLOY SP56-M IXIO-ST Presence Sensor – For Automatic Sliding Doors

The ASSA ABLOY SP56-M IXIO-ST is a precision-engineered active infrared presence sensor designed for automatic sliding door systems. It offers reliable detection across both the door opening and side-lite areas, enhancing user safety and ensuring compliance with modern door automation standards.

Equipped with dual infrared curtains, a user-friendly LCD interface, and robust self-monitoring features, this sensor is ideal for high-traffic environments requiring dependable safety performance.

Key Features & Benefits

• Dual Infrared Curtain Technology
  Provides highly accurate detection using two rows of active infrared spots to monitor the presence of people or objects across the entire door threshold and side-lite area.

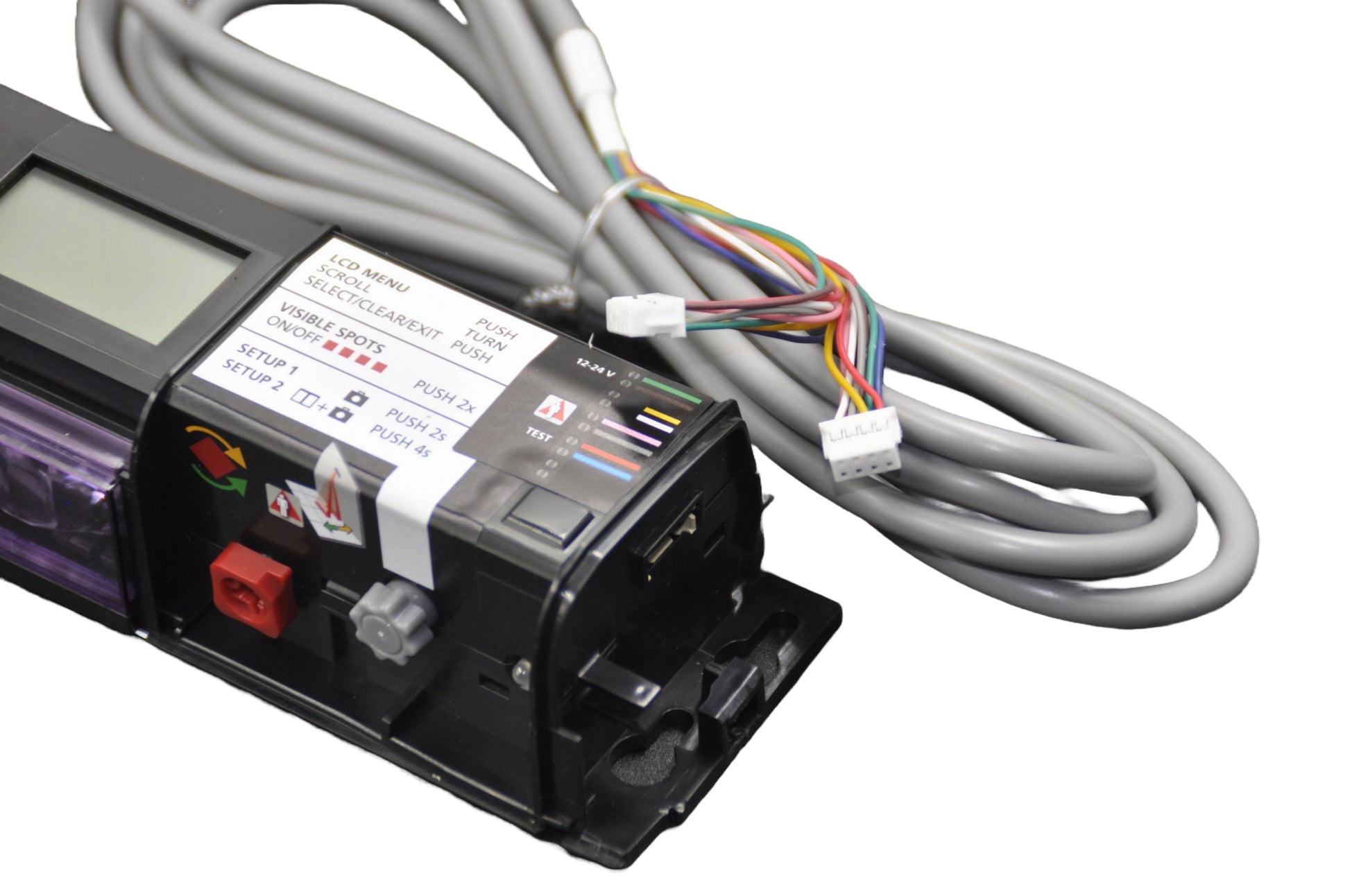

• Built-In LCD Programming Display
  Allows quick setup and on-site adjustments with intuitive visual feedback—no external tools or software required.

• Side-Lite and Threshold Protection
  Ensures extended coverage beyond the clear door opening, minimising the risk of accidental contact with the moving door leaf.

• Monitored Output for Safety Compliance
  Integrated monitoring supports compliance with EN16005 and other automatic door safety standards.

• Manual Alignment Beams
  Simplifies sensor alignment during installation for accurate and consistent positioning.

• Durable and Weather Resistant
  Rated to IP54 for resistance to dust and moisture, making it suitable for both indoor and sheltered outdoor use.

Technical Summary

• Sensor Type: Active infrared presence detector

• Detection Zones: Dual curtain, up to 24 spots per curtain

• Mounting Height: 2.0 – 3.5 metres (recommended maximum)

• Supply Voltage: 12–24 V AC / 12–30 V DC

• Power Consumption: Less than 2.5 W

• Output Type: Solid-state relay, potential-free

• Response Time: Typically less than 200 milliseconds

• Hold Time: Adjustable, 0.3 to 1 second

• Protection Class: IP54 (dust and splash resistant)
