Assa Abloy - PULL-600 Arm system - BK - SW200/300/300S

ASSA ABLOY PULL‑600 Arm System – Heavy‑Duty Slide‑Track (Black Finish, BK) – Compatible with SW200 / SW300 / SW300‑S

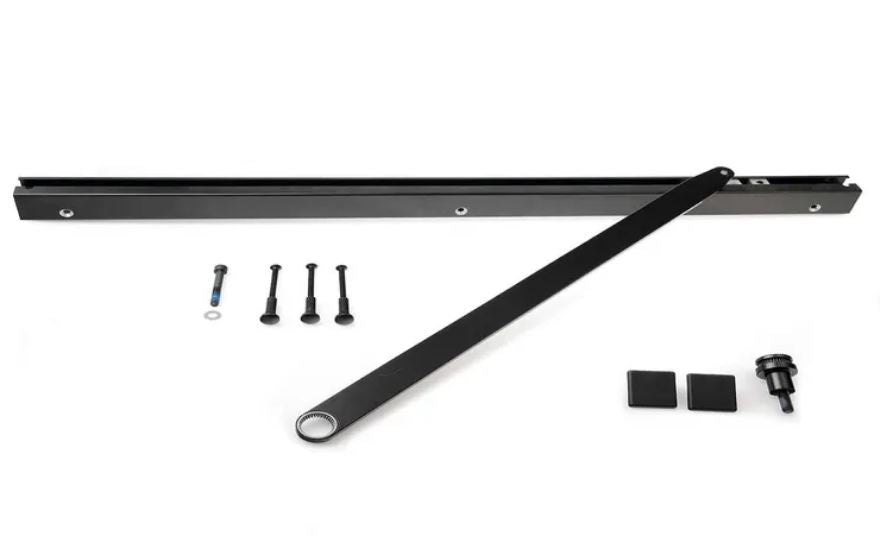

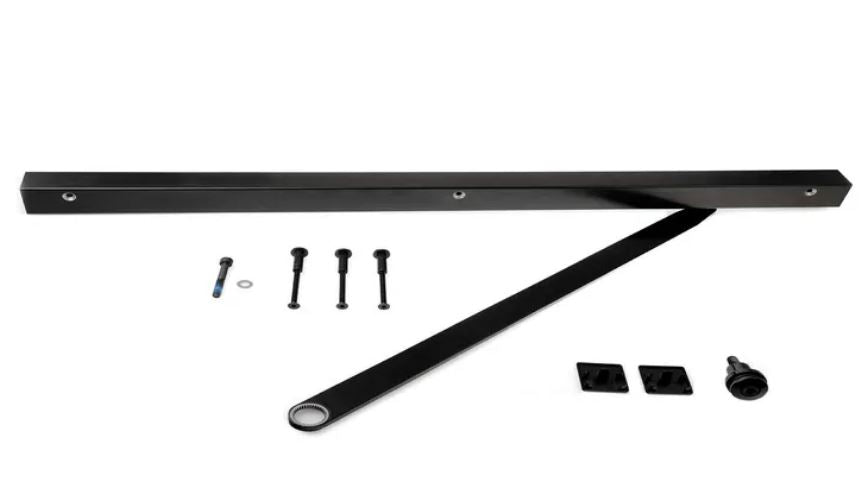

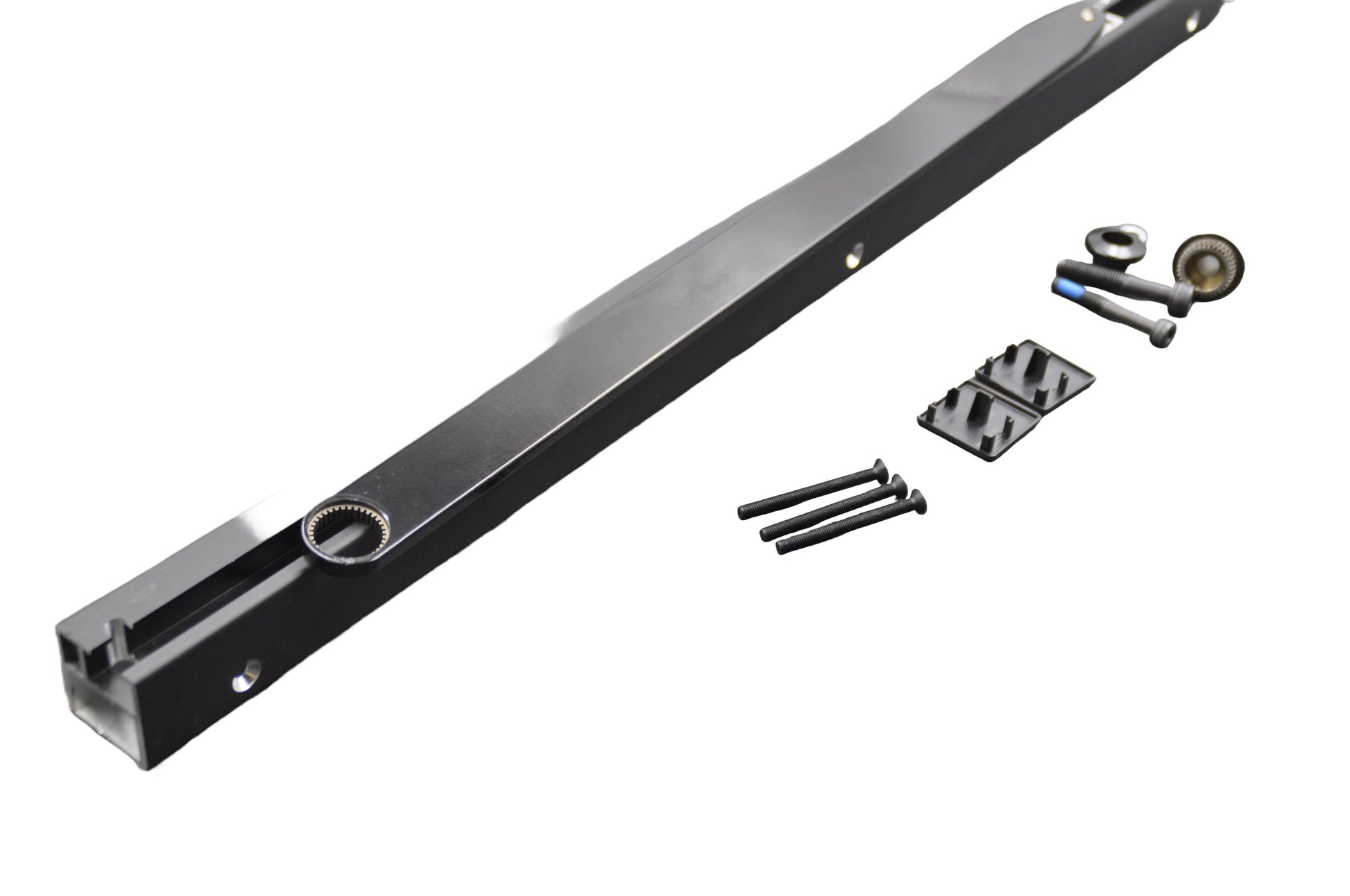

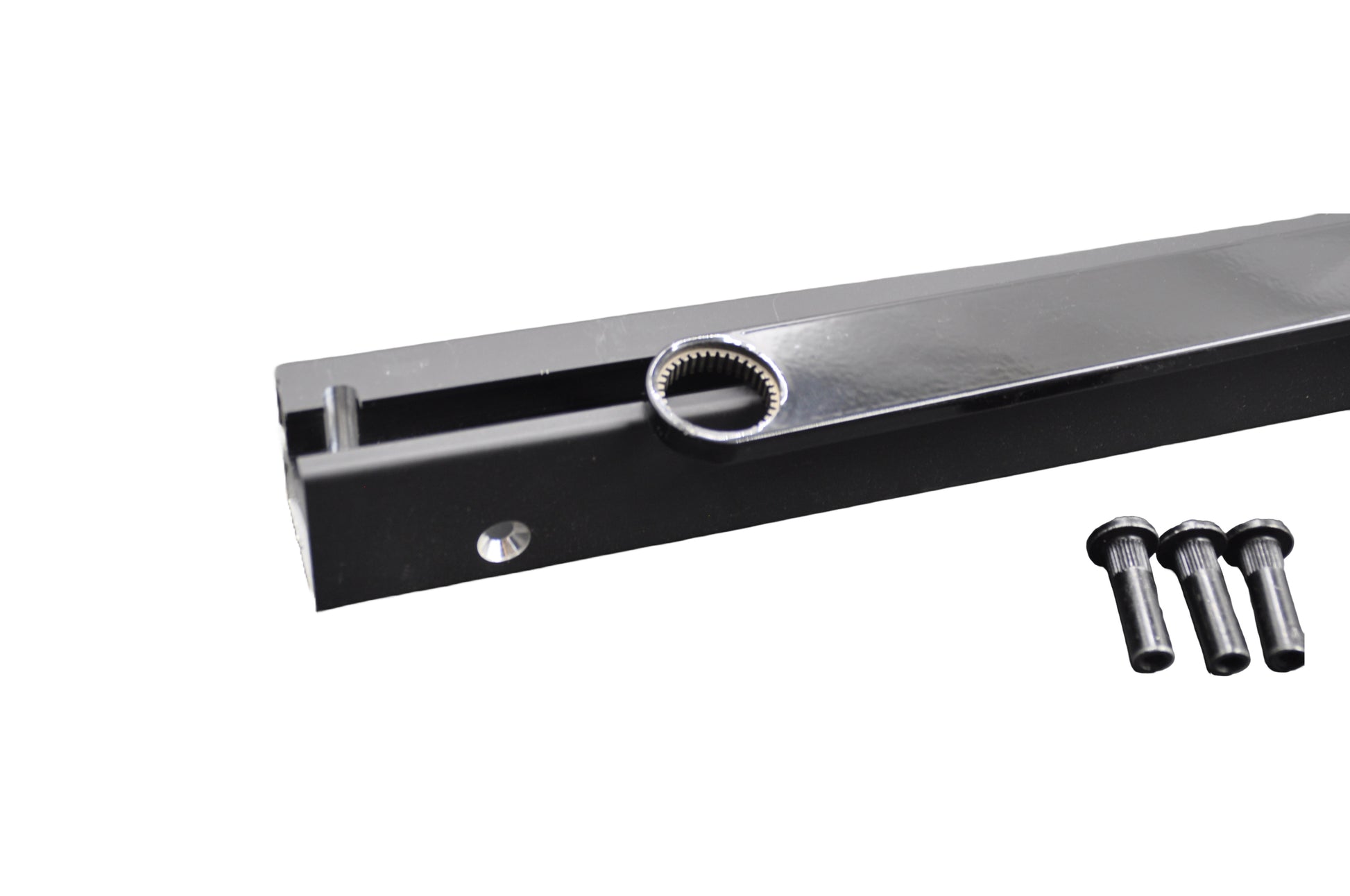

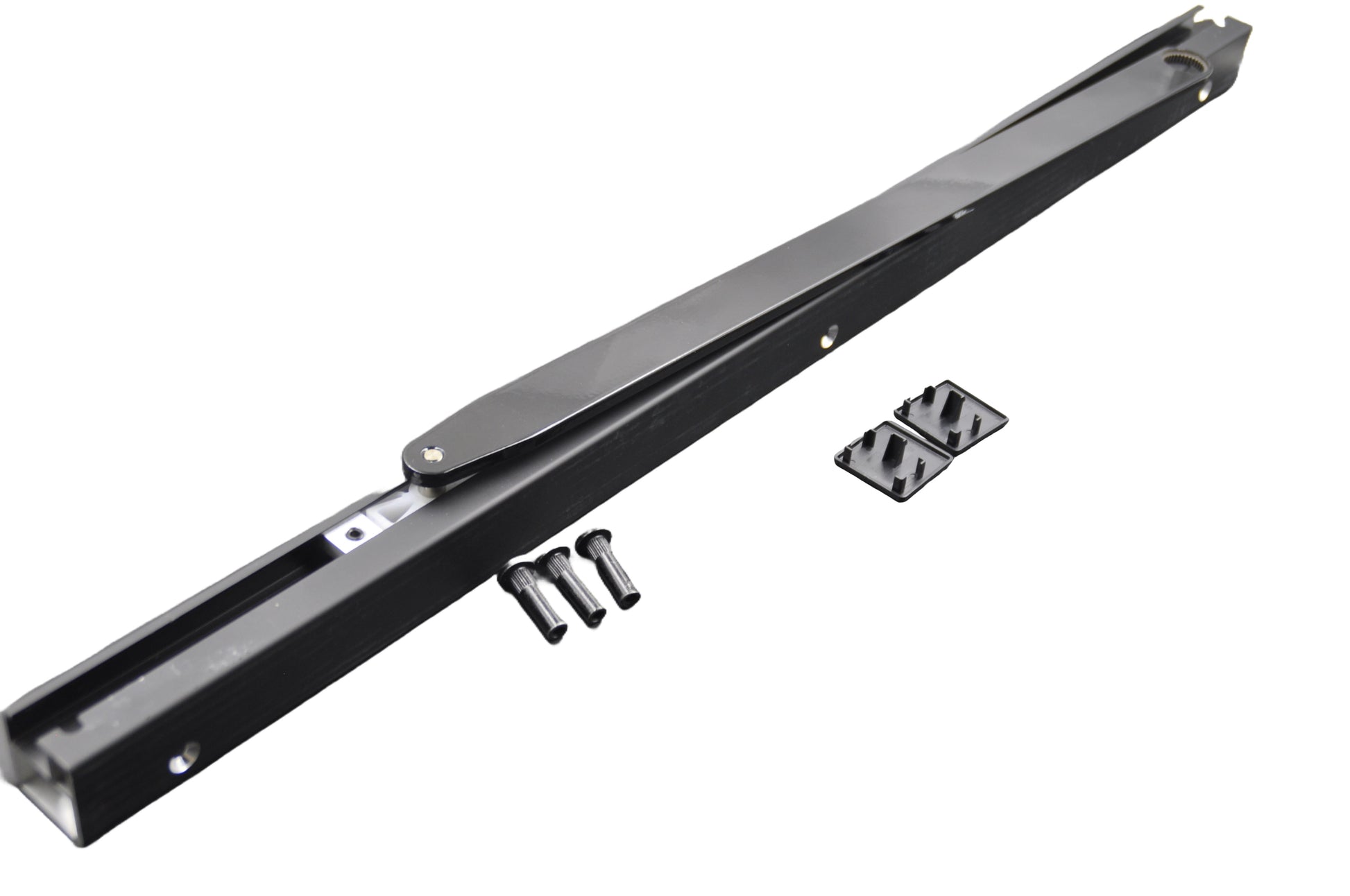

The PULL‑600 Arm System (BK) is a high‑specification slide‑track arm accessory designed for pull‑side (non‑hinge side) installations with the ASSA ABLOY SW200, SW300, or SW300‑S automatic swing door operators. Finished in black (BK), this heavy‑duty system is built for demanding commercial or public‑access environments, where large door leaves, wide reveals or higher usage demand a robust solution.

Key Features & Benefits

• Heavy‑Duty Slide‑Track Design
  Built to meet the rigours of busy entrances and large‑leaf swing doors, enabling reliable pull‑side operation under heavy use.

• Black Finish (BK Variant)
  Delivered in a sleek black finish for a visually refined entrance appearance — ideal for architectural hardware match‑ups and dark‑framed doors.

• Wide Reveal Range
  Supports installations with reveal depths from ‑20 mm up to 230 mm, offering flexibility for deep or non‑standard mounting conditions.

• Minimum Door Width Applicable
  Suitable for door leaves from 1050 mm minimum width, ensuring compatibility with the larger door sizes often found in commercial environments.

• Slide‑Track Length Specification

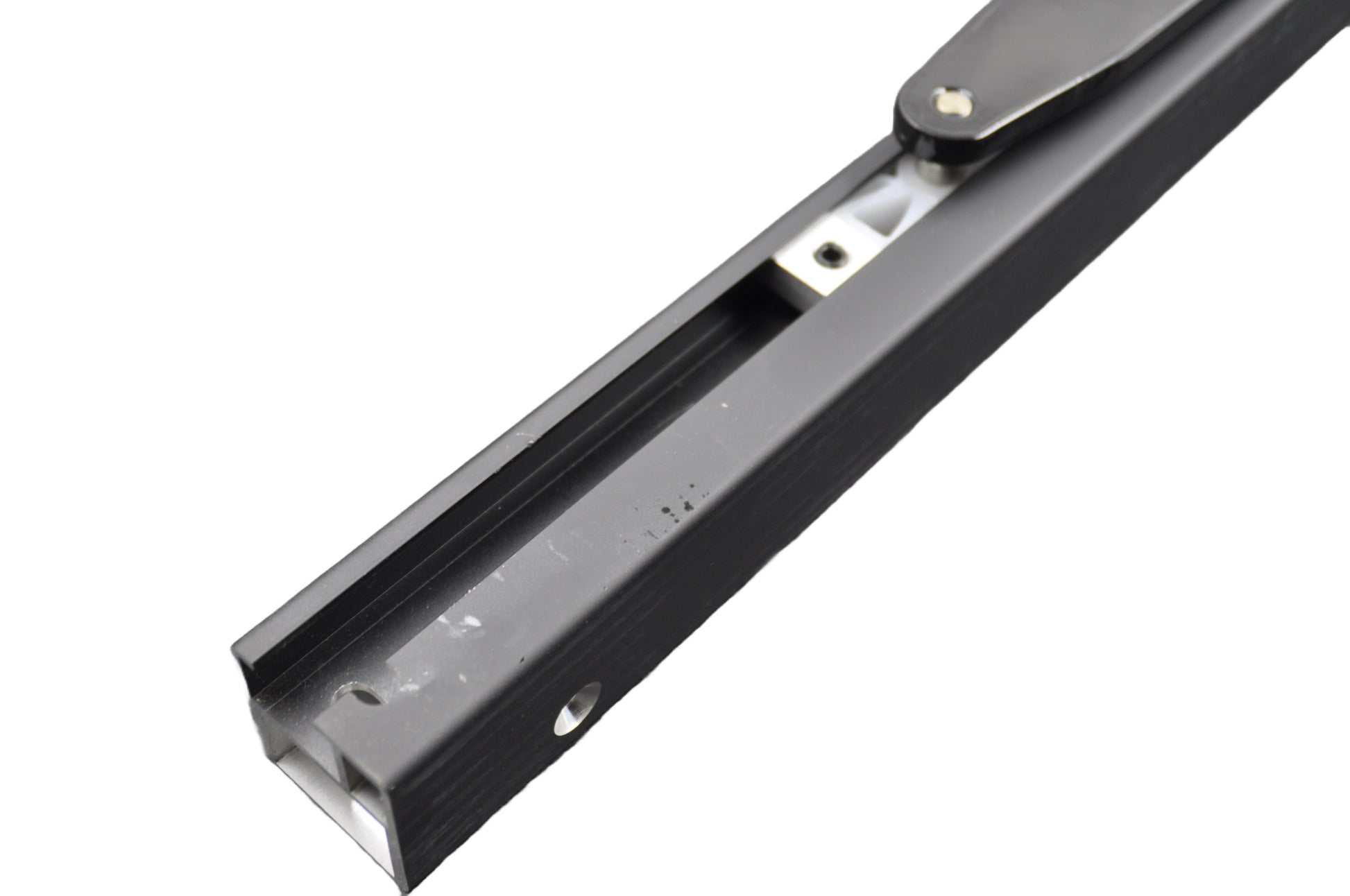

  Features a standard slide‑track length of 890 mm, engineered to provide smooth motion and accurate geometry across broad door spans.

• Optimised for Pull & Sliding Push Applications
  While primarily designed for pull‑side operation, the system is versatile enough to support certain sliding‑push configurations when specified.

• Operator Compatibility
  Designed for use with ASSA ABLOY SW200, SW300 and SW300‑S operators, ensuring correct mounting geometry, mechanical alignment and performance integration.

Technical Summary

• Model: PULL‑600 Arm System

• Finish: Black (BK) variant

• Mounting Type: Pull‑side slide‑track (non‑hinge side)

• Support Reveal Range (A): ‑20 mm to 230 mm

• Minimum Door Width: 1050 mm

• Slide‑Track Length: 890 mm

• Compatible Operators: SW200, SW300, SW300‑S

• Application: Heavy‑duty automatic swing doors in demanding environments requiring high usage or large door leaves
