ASSA ABLOY PULL-220 Arm System – Slide-Track, Black (BK) for SW100 / SW200 / SW300 / SW300-S

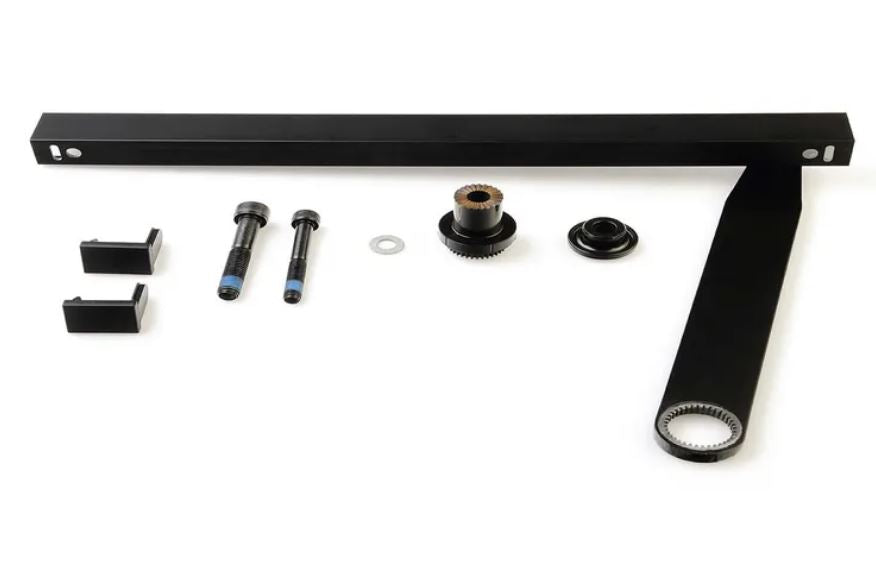

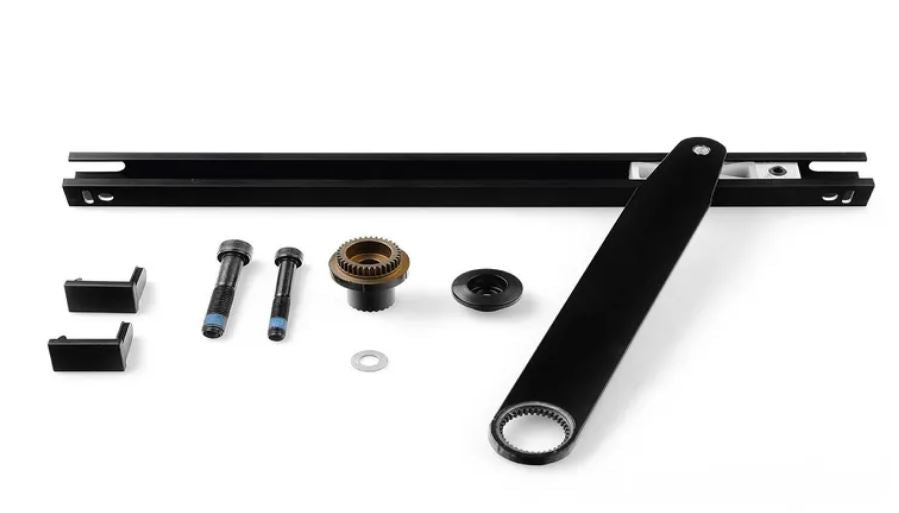

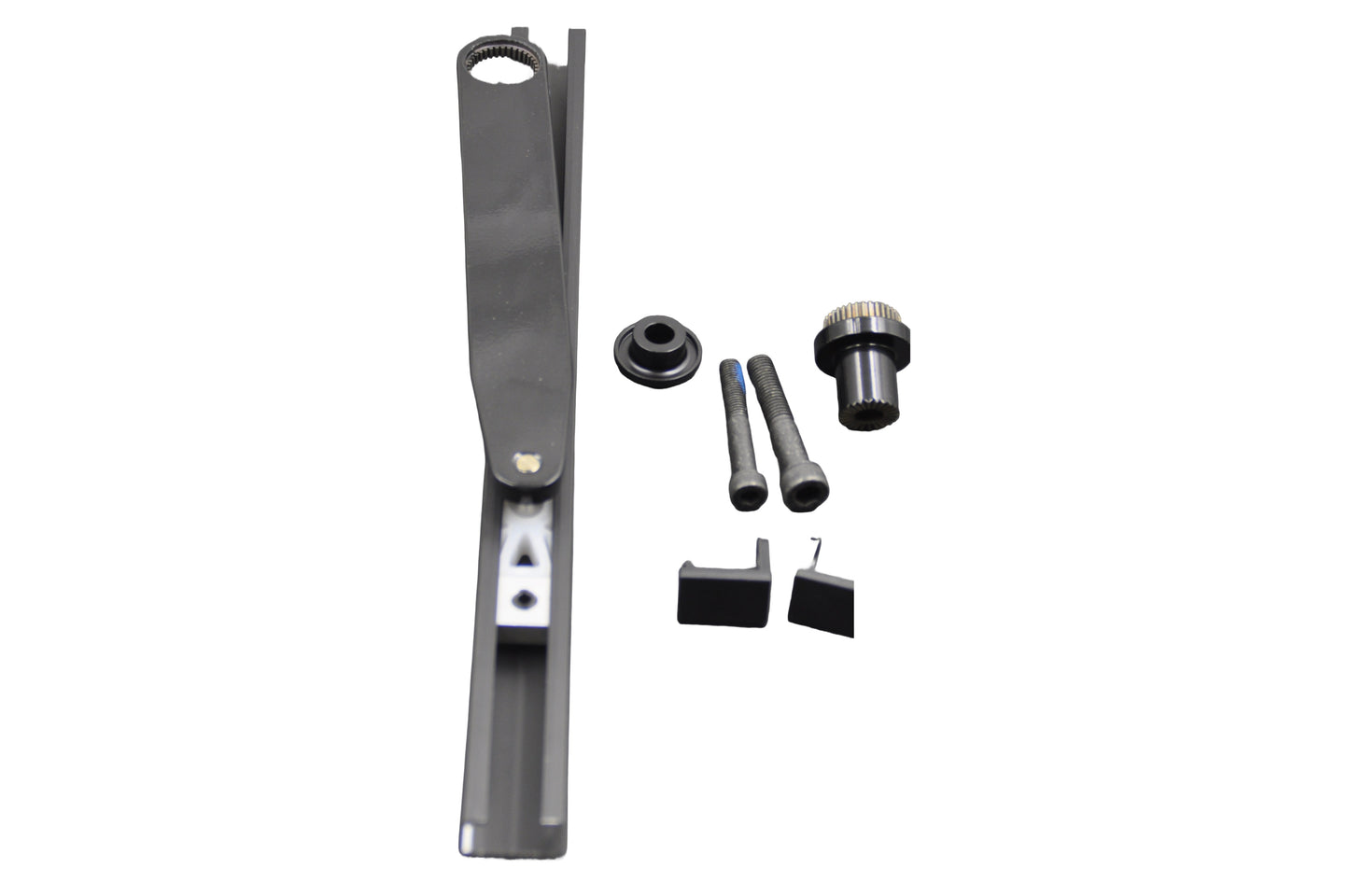

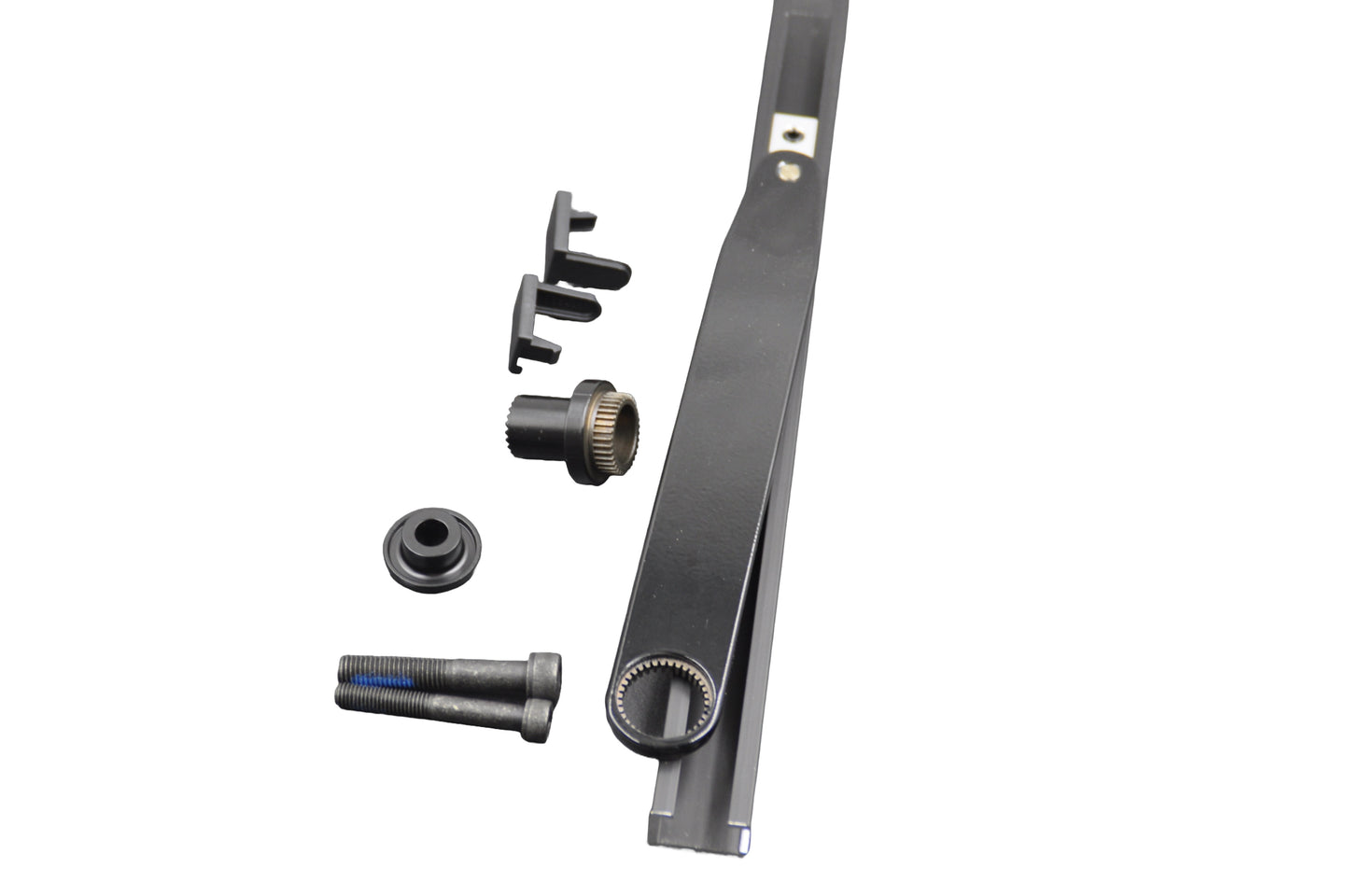

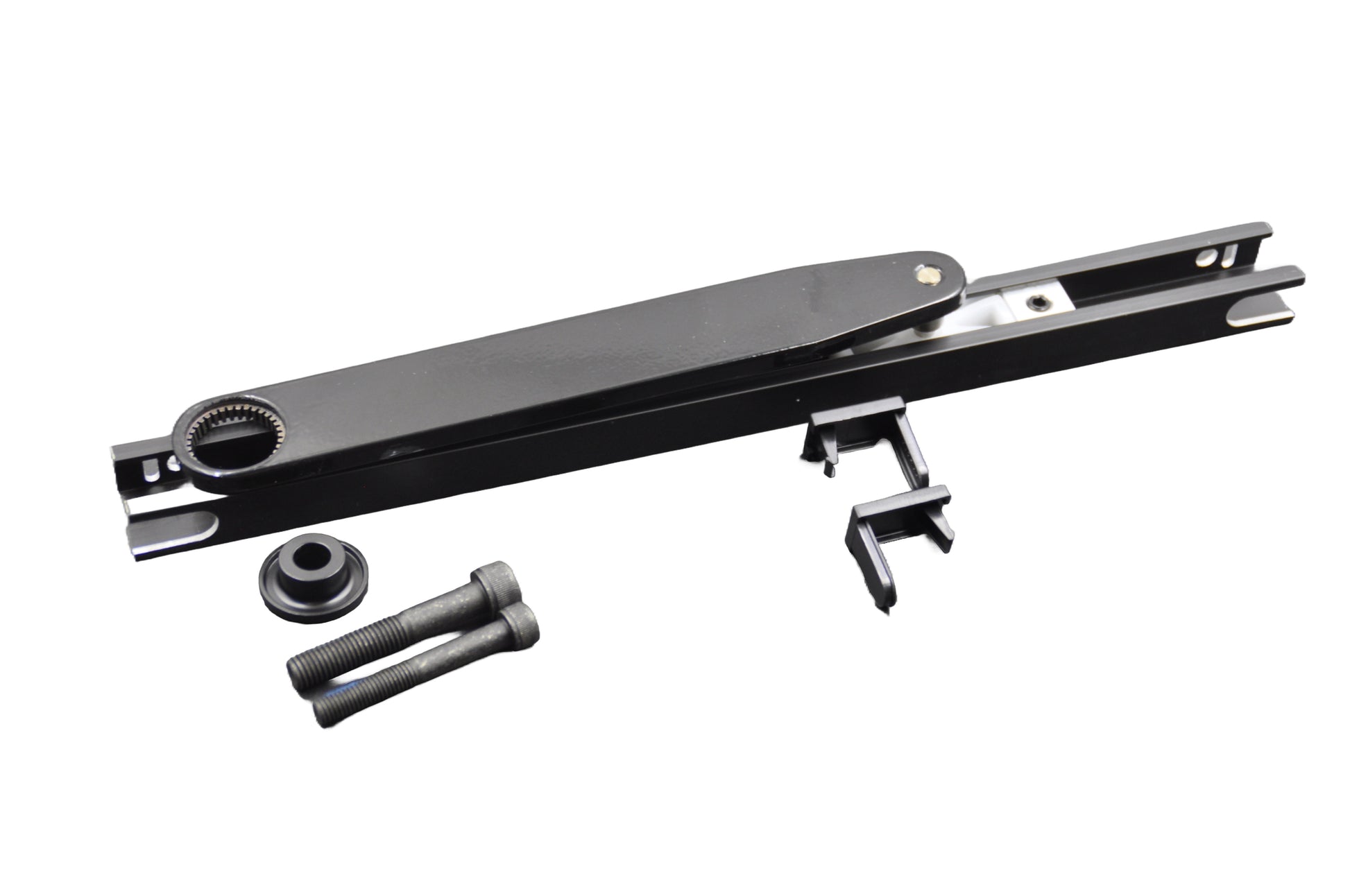

The ASSA ABLOY PULL-220 is a compact slide-track pull arm system designed for use with the SW100, SW200, SW300, SW300-S, and PowerSwing automatic swing door operators. Finished in black (BK), this arm system is purpose-built for narrow door widths and confined spaces, delivering reliable performance where a full-size arm system is not suitable.

Ideal for pull-side installations, the PULL-220 offers a space-saving solution for door widths between 450–750 mm, such as access-controlled internal doors, healthcare rooms, and corridor doors.

Key Features & Benefits

• Compact Slide-Track Design
  Optimised for narrow doors with leaf widths from 450 mm to 750 mm, making it ideal for tight spaces and slim-profile installations.

• Pull-Side Mounting
  Designed for pull applications where the operator is installed on the non-hinge side of the door, pulling it open via a slide-track mechanism.

• Modern Black Finish (BK)
  Supplied in black to match modern architectural hardware and complement dark-framed doors or interior design schemes.

• Short Slide Track and Limited Reveal
  Features a 380 mm slide-track and supports a maximum reveal of 65 mm, offering versatility for compact installations with limited frame depth.

• Operator Compatibility
  Fully compatible with SW100, SW200, SW300, SW300-S, and PowerSwing automatic swing door operators.

Technical Summary

• Model: PULL-220

• Type: Slide-track arm system (short reach)

• Mounting Side: Pull (non-hinge side)

• Finish: Black (BK)

• Slide-Track Length: 380 mm

• Maximum Reveal (A): 65 mm

• Door Width Range: 450–750 mm

• Compatible Operators: SW100, SW200, SW300, SW300-S, PowerSwing
