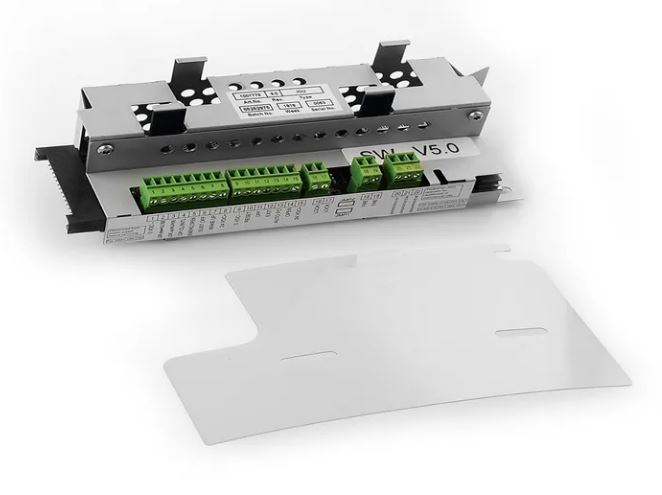

• Assa Abloy - MUK IO Board Kit consisting of Electronic module with green connectors on a white background.

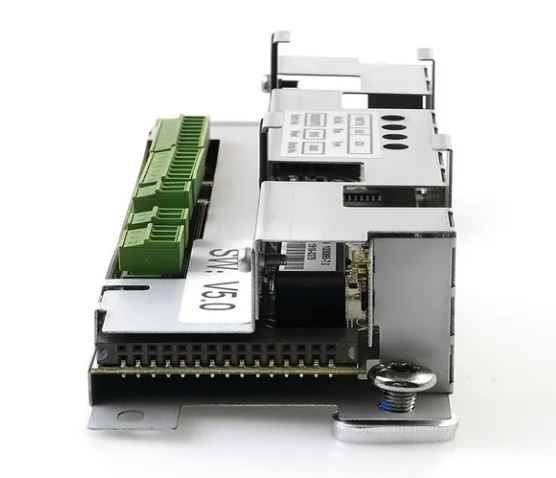

  • Side view of an Assa Abloy - MUK IO Board Kit consisting of Electronic module with green connectors on a white background.
1 7

Assa Abloy - MUK IO Board Kit - MUK I/O board kit for GEZE Slimdrive SL NT / TORMAX iMotion 2202 and Third party operators

Assa Abloy - MUK IO Board Kit - MUK I/O board kit for GEZE Slimdrive SL NT / TORMAX iMotion 2202 and Third party operators

Net: £164.46
Incl. VAT: £197.35
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

ASSA ABLOY – MUK I/O Board Kit

The MUK I/O Board Kit from ASSA ABLOY is a control expansion module designed for use with compatible automatic door operators. It provides additional input and output channels for integrating external control devices, safety systems, and access features into sliding or swing door installations.

Ideal for both new installations and retrofit projects, this kit enhances system functionality without replacing the main control unit.

Key Features & Benefits

  • Expanded Control Options
    Allows connection of additional devices such as push buttons, key switches, emergency open/close triggers, fire alarm inputs, and access control interfaces.

  • Flexible Input/Output Configuration
    Supports programmable logic to accommodate a variety of on-site requirements including monitored locking, external status signals, or alarm integration.

  • Installation-Ready Design
    Supplied as a complete board kit, ready to install within the door operator’s header or control cabinet.

  • Supports Safety & Compliance Functions
    Enables compliance with EN16005 and other door safety standards by supporting sensor monitoring, fail-safe logic, and emergency override features.

  • Compatible with Assa Abloy Systems
    Designed for use with selected ASSA ABLOY automatic door operators, including sliding and swing systems (model compatibility to be confirmed per installation).

Technical Summary

  • Product Type: Input/Output Expansion Board (MUK I/O)

  • Function: Provides additional programmable I/O ports

  • Inputs Supported: Push buttons, fire alarms, key switches, emergency open/close

  • Outputs Supported: Door status, lock control, remote signalling

  • Installation: Typically installed in the operator header or adjacent control housing

  • System Compatibility: For use with compatible ASSA ABLOY sliding and swing door controllers

  • Monitoring: Supports monitored sensor input/output configurations for enhanced safety

View full details

Manufacturer Part Number

1016058

FAQ's

What is the ASSA ABLOY MUK I/O Board Kit used for?

It is an input/output expansion board used to add extra control, monitoring and interface connections to compatible automatic door operator installations.

Which third-party operator applications are named in this listing?

The product title specifically names GEZE Slimdrive SL NT and TORMAX iMotion 2202, as well as third-party operator applications. Confirm the exact MUK interface arrangement required before ordering.

Which types of inputs can the MUK I/O Board Kit support?

The listing names inputs for devices such as push buttons, fire alarms, key switches and emergency open or close signals.

Which output functions are listed for the MUK I/O Board Kit?

The product information lists functions including door-status signalling, lock control and remote signalling, depending on the compatible installation configuration.

Should operator compatibility be confirmed before ordering the MUK I/O Board Kit?

Yes. Confirm the operator model, MUK configuration and required I/O functions before ordering, particularly on third-party operator installations.
