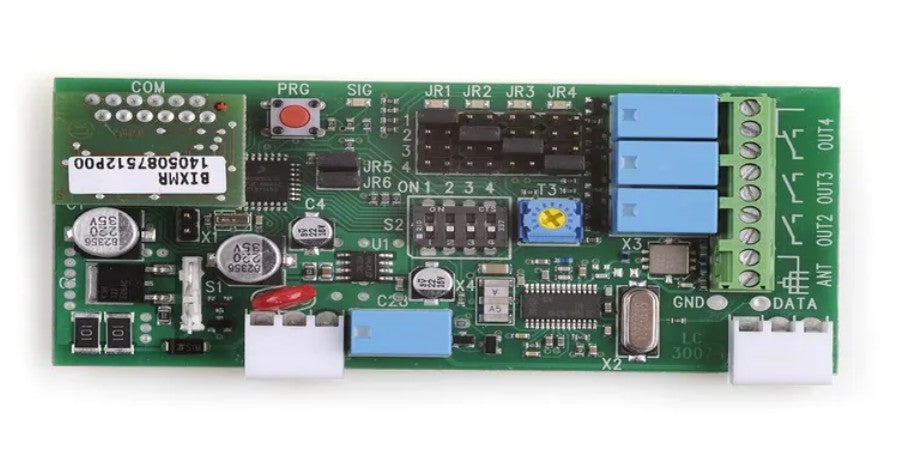

Assa Abloy - MA144-3 Radio receiver

Assa Abloy MA144-3 Radio Receiver (4 Channel) for Automatic Doors

The Assa Abloy MA144-3 Radio Receiver is a versatile four-channel wireless receiver designed for use with automatic door systems. It enables reliable remote activation of doors via compatible transmitters, making it ideal for access control, push button replacement, or multi-door control applications in commercial and industrial environments.

4 Channel Wireless Receiver
Supports control of up to four separate doors or functions, providing flexible system integration.

Compatible with Automatic Door Systems
Designed for use with Assa Abloy automatic sliding and swing door operators.

Wide Voltage Input (12–24V AC/DC)
Powered directly from the operator, allowing simple integration without additional power supplies.

Multiple Relay Outputs (4 x NO Contacts)
Each channel provides a normally open (NO) contact for connection to door activation inputs or control systems.

Reliable Wireless Control
Enables remote activation via compatible transmitters, improving convenience and accessibility

Product Type: Radio receiver

Channels: 4

Outputs: 4 x Normally Open (NO) contacts

Power Supply: 12–24V AC/DC (from operator)

Dimensions: 70mm (W) x 130mm (H) x 26mm (D)

Application: Automatic door activation and access control

Installation: Internal or enclosure-mounted within operator system

The Assa Abloy MA144-3 Radio Receiver provides a reliable and flexible solution for wireless control of automatic doors, supporting multi-channel operation and easy integration into existing systems.
