Assa Abloy - MA111-1 Elbow switch AK

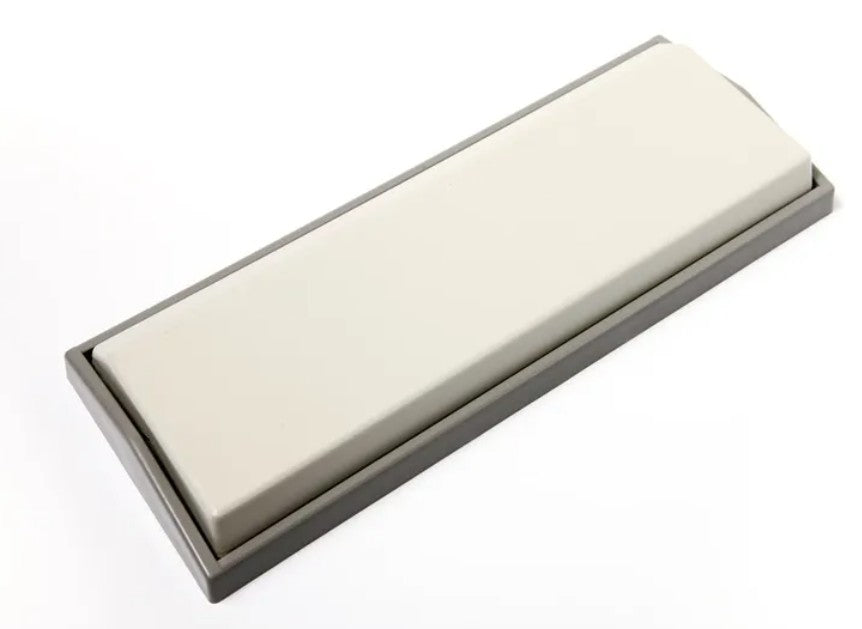

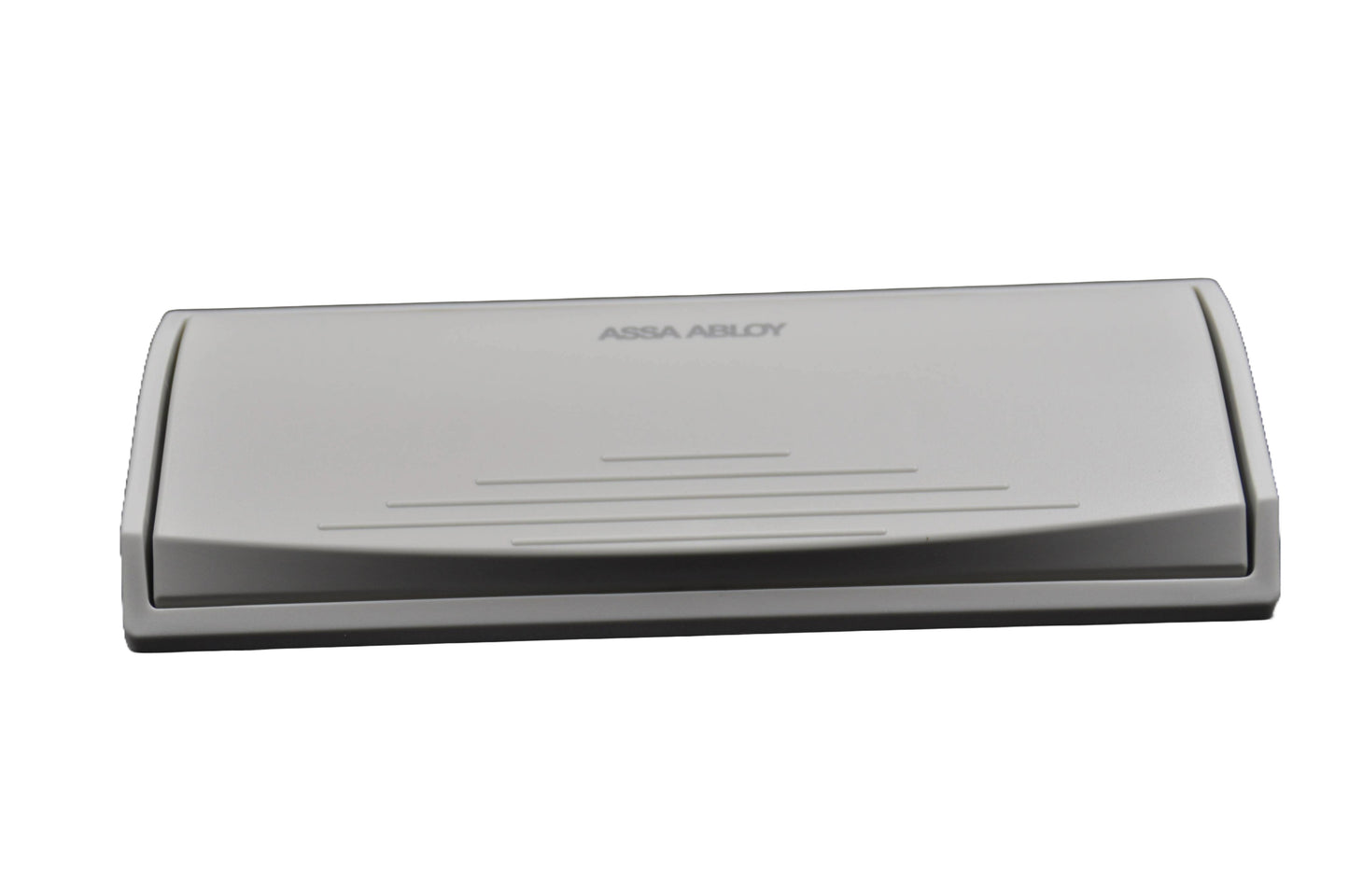

ASSA ABLOY MA111-1 Elbow Switch – Grey Plastic, 95 × 250 mm, 1x NO Contact – Article No. 1007581

The ASSA ABLOY MA111-1 is a durable, elbow-operated switch designed for activating automatic doors in environments where hands-free access is essential. Constructed from robust grey plastic and measuring 95 x 250 mm, it provides a hygienic and user-friendly solution for high-traffic areas.

This version features a single normally open (1x NO) contact for straightforward connection to door controllers. It is also compatible with the optional radio transmitter board (Article No. 1007633) for wireless activation, which can be ordered separately.

Key Features & Benefits

• Hands-Free Operation
  Activated by elbow, forearm, or body pressure — ideal for hygiene-critical environments or users with limited hand mobility.

• Durable Grey Plastic Housing
  Tough and impact-resistant design suitable for commercial and public settings.

• Simple NO Contact Output
  Equipped with one normally open contact for direct wiring into automatic door systems.

• Wireless-Ready Design
  Compatible with optional radio transmitter board (sold separately) to enable wireless door control.

• Large Activation Surface
  Generously sized 95 × 250 mm activation plate ensures easy use, even with minimal contact.

• Ideal for Retrofit or New Installations
  Suitable for mounting at elbow height beside automatic swing or sliding doors.

Technical Summary

• Article Number: 1007581
• Model: MA111-1
• Dimensions: 95 mm (W) × 250 mm (H)
• Material: Grey plastic
• Contact Type: 1x Normally Open (NO)
• Activation Method: Elbow/body contact
• Wireless Option: Compatible with radio transmitter board (Art. No. 1007633 – ordered separately)
• Mounting: Wall surface mount near automatic door access points
