Assa Abloy - FGB-R Floor guide

Assa Abloy - FGB-R Floor guide

Net: £22.39
Incl. VAT: £26.87
Taxes included.

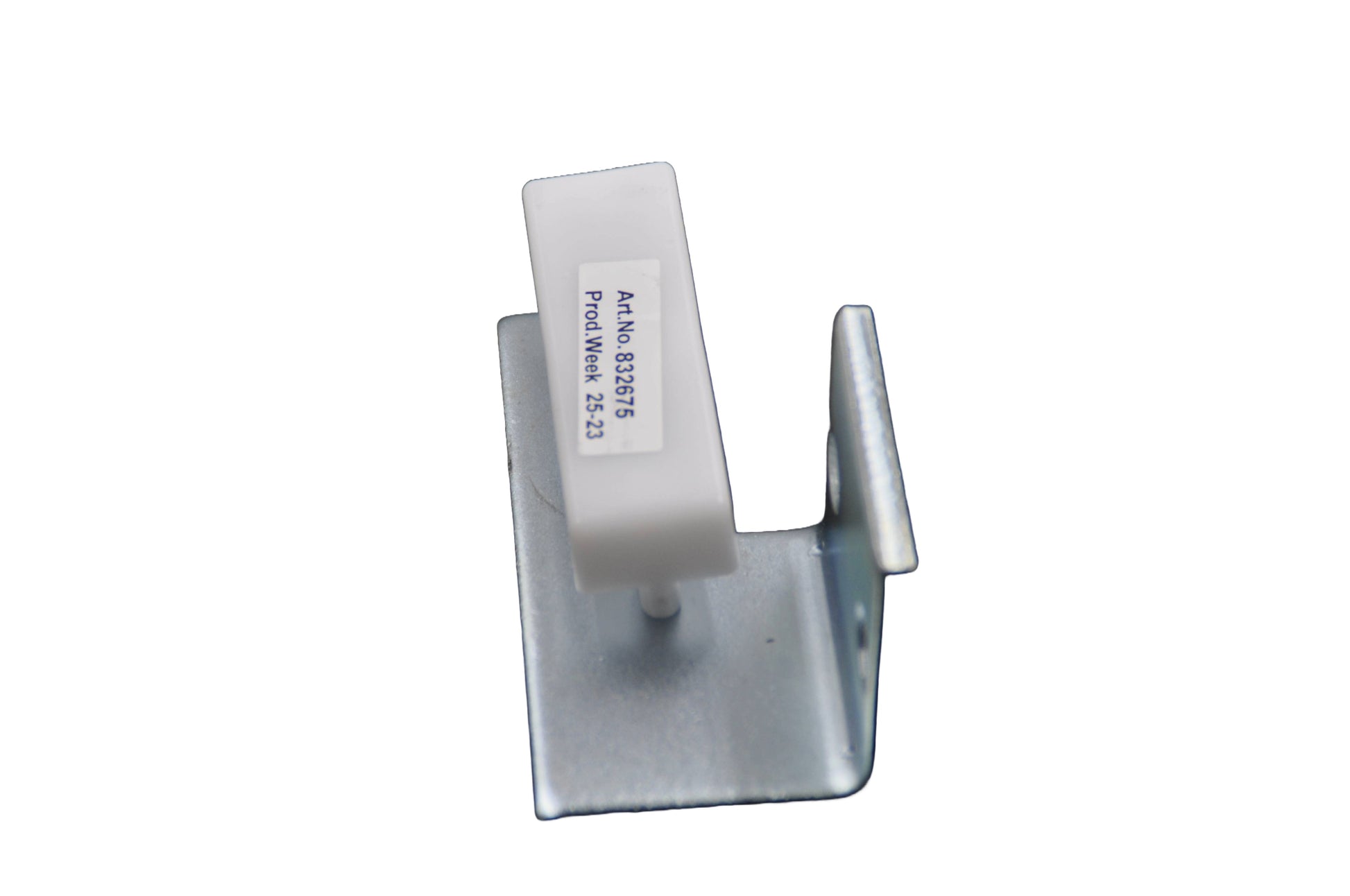

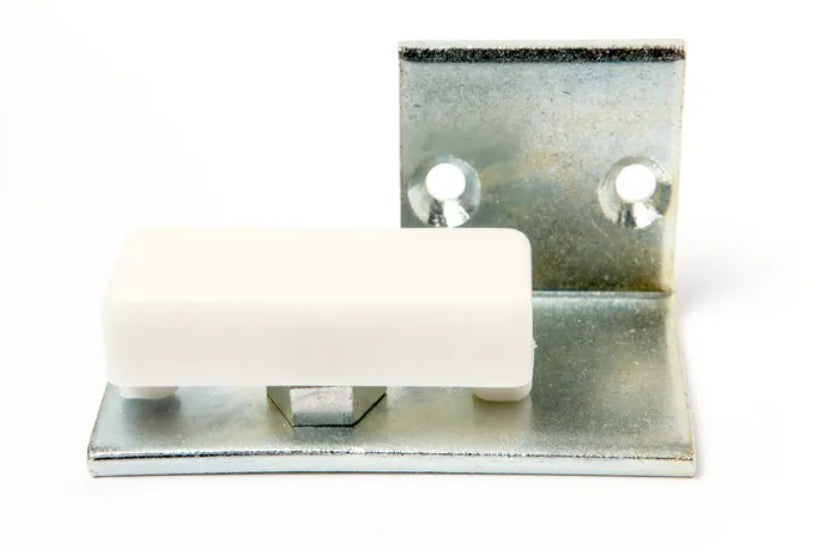

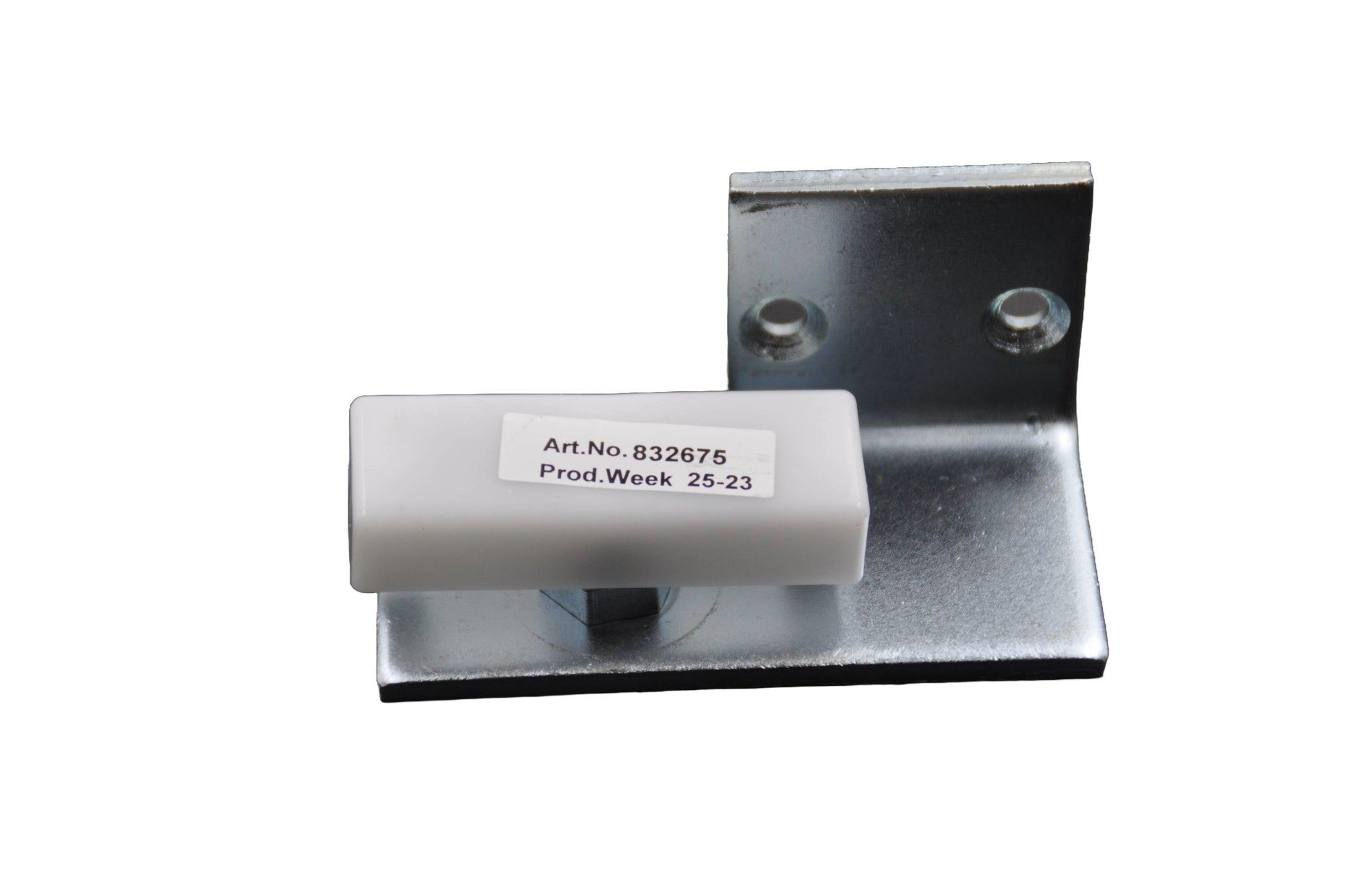

ASSA ABLOY FGB-R Floor Guide – Right-Hand, 35 mm (Side-Lite Mounted) – Article No. 832675

The ASSA ABLOY FGB-R is a right-hand floor guide designed to be mounted on the side-lite of an automatic sliding door system. With a compact 35 mm profile, it ensures precise door leaf alignment and smooth lateral guidance during operation. This version is intended specifically for right-hand installations.

Key Features & Benefits

  • Right-Hand Configuration
    Designed for right-side installation when facing the door from the secure side — ideal for right-travel door leaves.



  • Side-Lite Mounted
    Fixes directly to the side-lite or fixed glass panel, eliminating the need for floor drilling or visible floor hardware.



  • Slim 35 mm Profile
    Compact size provides reliable guidance while maintaining a clean and minimal aesthetic.



  • Improves Door Stability
    Keeps the moving leaf correctly aligned during operation, reducing lateral movement and long-term mechanical wear.



  • Durable and Discreet
    Built for commercial-grade use with a discreet footprint suitable for modern aluminium or glass-framed systems.

Technical Summary

  • Article Number: 832675
  • Product Type: Side-lite mounted floor guide
  • Mounting Side: Right-hand
  • Body Width: 35 mm
  • Material: Durable metal housing (with compatible nylon guide block)
  • Mounting Method: Fixed to side-lite or frame
  • Application: Lateral guidance for sliding door leaves in automatic door systems
FGB-R Floor guide mounted on side light, 35 mm, right version.
View full details

FAQ's

What is the Assa Abloy - FGB-R Floor guide and what is it used for?

ASSA ABLOY FGB-R Floor Guide – Right-Hand, 35 mm (Side-Lite Mounted) – Article No.

What size is the Assa Abloy - FGB-R Floor guide?

The listed size is 35 mm. Check this matches your installation, as fit depends on the operator length or opening it needs to suit.

How do I know if I need the left-hand or right-hand version?

This is the right-hand version. Handing is determined by the direction of travel when viewed from the secure side of the door, so confirm your door's handing (and order the opposite hand if needed) before purchasing.

How can I confirm this is the correct part?

This part carries article number 832675. Quote that number against your parts list or the number on your existing component to confirm it is the right replacement.

What is the Assa Abloy - FGB-R Floor guide made from?

The Assa Abloy - FGB-R Floor guide is made from durable metal housing (with compatible nylon guide block). This is chosen for durable, reliable performance in commercial automatic door use.
