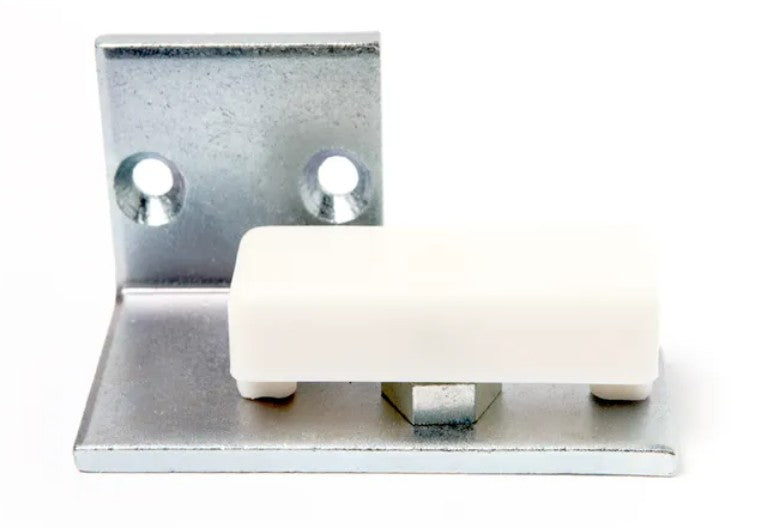

Assa Abloy - FGB-L Floor guide

Assa Abloy - FGB-L Floor guide

Net: £22.39
Incl. VAT: £26.87
Taxes included.

ASSA ABLOY FGB-L Floor Guide – Left-Hand, 35 mm (Side-Lite Mounted) – Article No. 832674

The ASSA ABLOY FGB-L is a left-hand floor guide designed to be mounted on the side-lite of an automatic sliding door system. With a compact 35 mm body, it provides precise lateral guidance and stability for the door leaf during operation. This version is specifically shaped and configured for left-hand installations.

Key Features & Benefits

  • Left-Hand Configuration
    Shaped for left-side installation when facing the door from the secure side — ensures correct guide alignment for left-travel door leaves.



  • Side-Lite Mounted Design
    Fixes directly to the fixed side panel (side-lite) rather than the floor — ideal for glass façades or installations where floor fixing is not possible.



  • Compact 35 mm Profile
    Slim, unobtrusive design suitable for narrow frame applications or minimal visual impact requirements.



  • Secure Leaf Guidance
    Ensures smooth, stable door travel and prevents lateral movement, reducing wear and improving long-term performance.



  • Durable Construction
    Built for continuous use in commercial and public entrances, with reliable performance in high-traffic environments.

Technical Summary

  • Article Number: 832674
  • Product Type: Floor guide (side-lite mounted)
  • Mounting Side: Left-hand
  • Mounting Method: Fixed to side-lite frame
  • Body Width: 35 mm
  • Application: Lateral guidance for sliding door leaves
  • Compatibility: Suitable for use with ASSA ABLOY automatic sliding door systems (model dependent)
FGB-L Floor guide mounted on side light, 35 mm, left version.
View full details

FAQ's

Which system is the Assa Abloy - FGB-L Floor guide compatible with?

The Assa Abloy - FGB-L Floor guide is designed for use with ASSA ABLOY automatic sliding door systems (model dependent) FGB-L Floor. Confirm your operator or door model matches before ordering to ensure a correct fit.

What is the Assa Abloy - FGB-L Floor guide and what is it used for?

ASSA ABLOY FGB-L Floor Guide – Left-Hand, 35 mm (Side-Lite Mounted) – Article No

What size is the Assa Abloy - FGB-L Floor guide?

The listed size is 35 mm. Check this matches your installation, as fit depends on the operator length or opening it needs to suit.

How do I know if I need the left-hand or right-hand version?

This is the left-hand version. Handing is determined by the direction of travel when viewed from the secure side of the door, so confirm your door's handing (and order the opposite hand if needed) before purchasing.

How can I confirm this is the correct part?

This part carries article number 832674. Quote that number against your parts list or the number on your existing component to confirm it is the right replacement.
