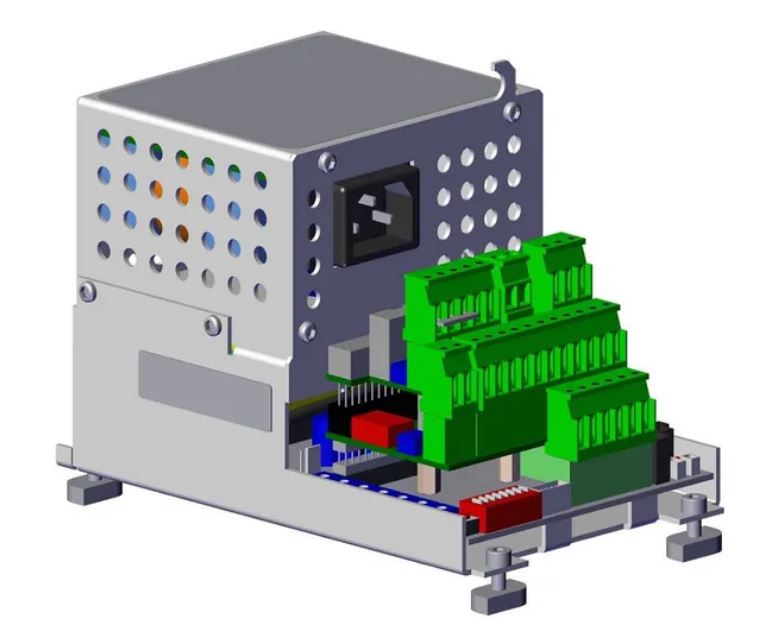

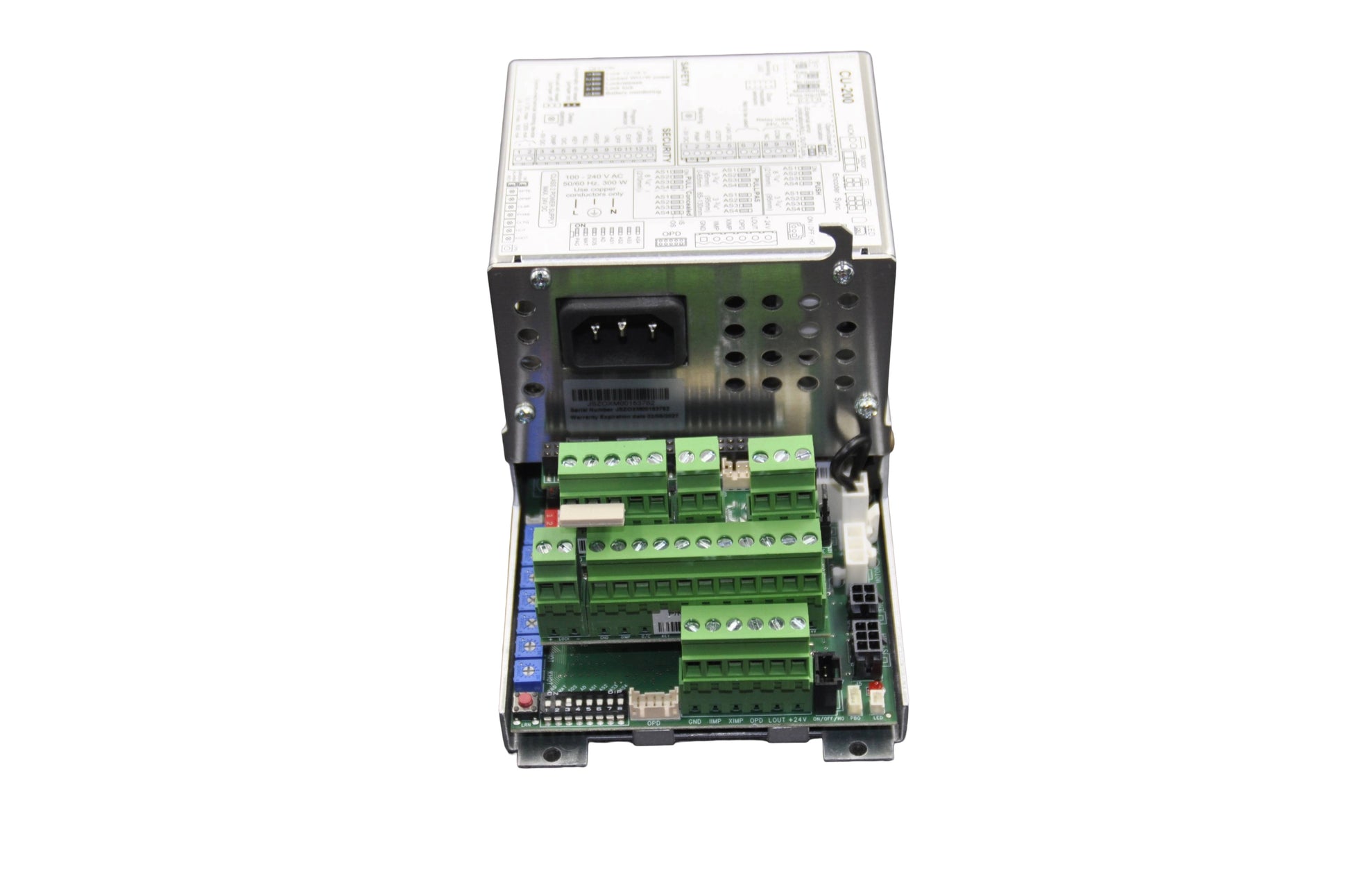

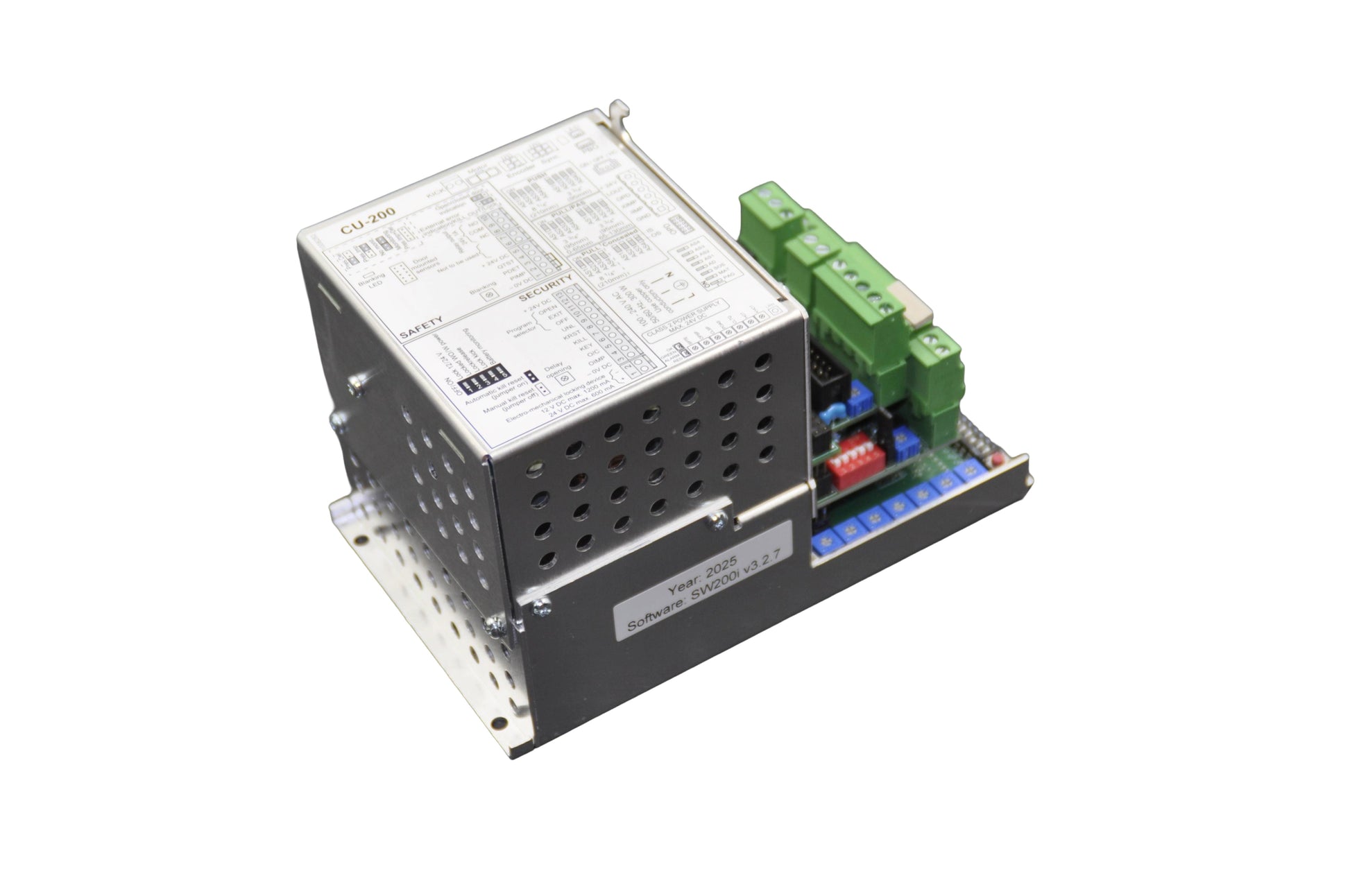

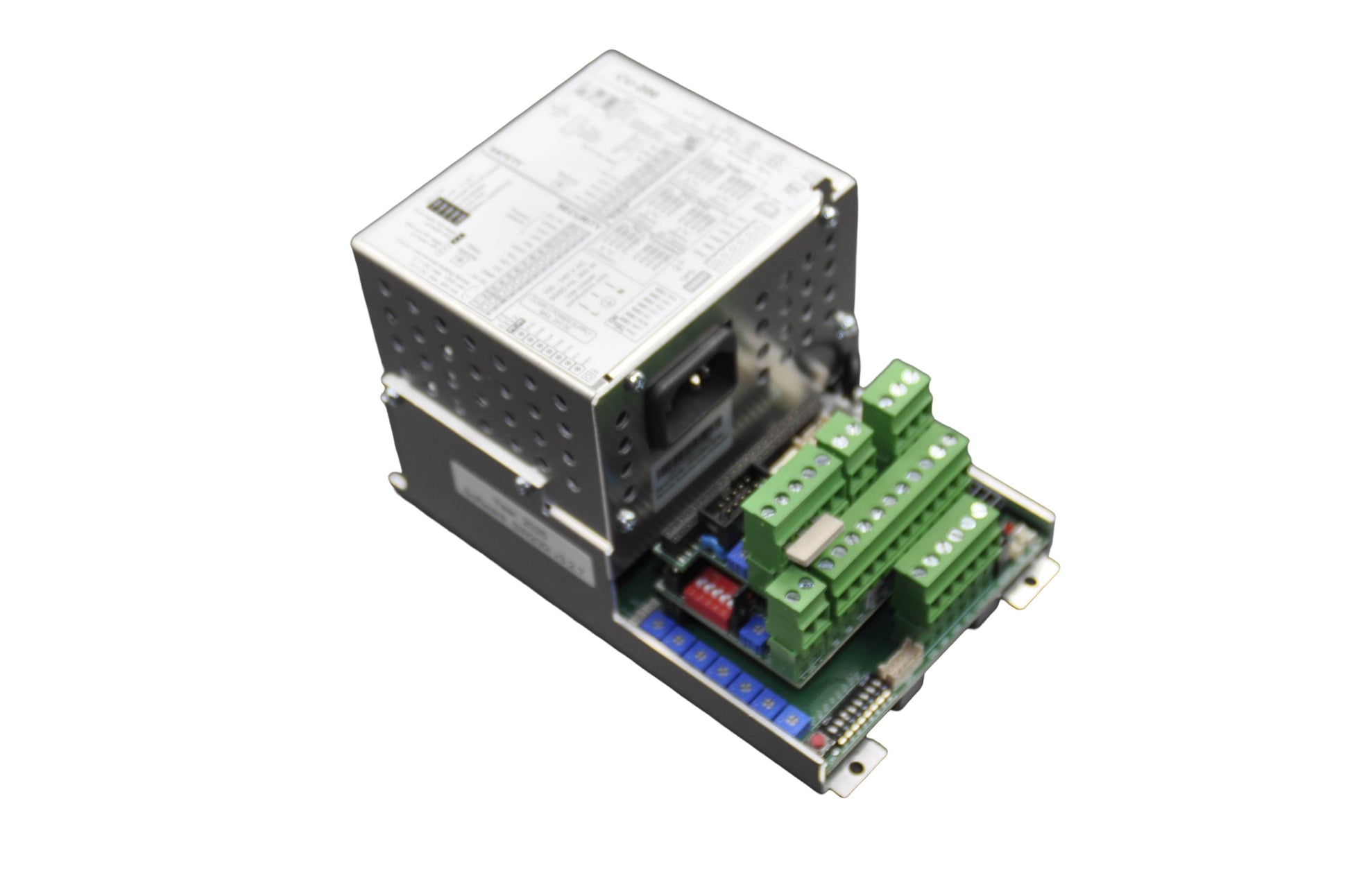

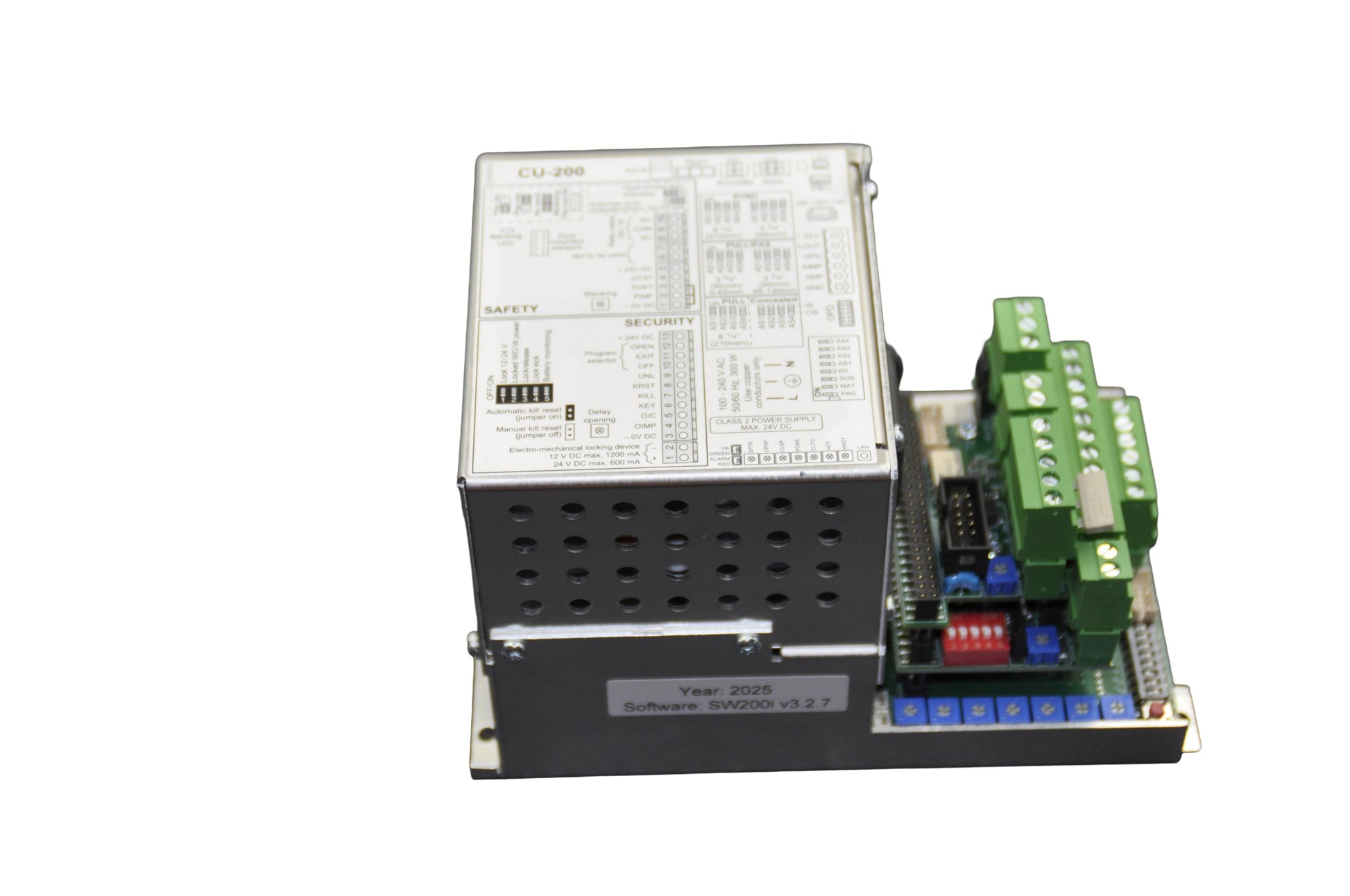

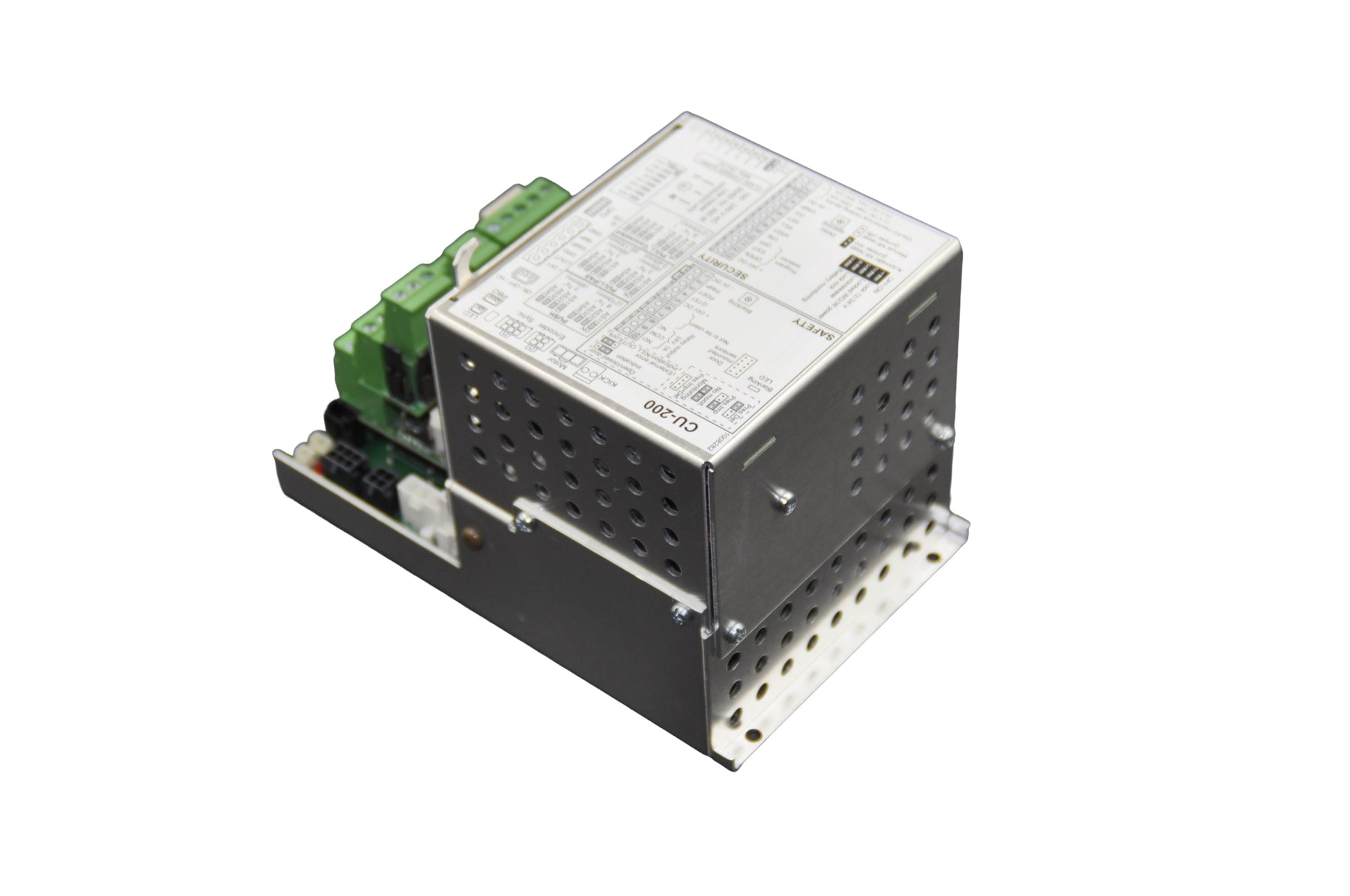

ssa Abloy SW200 – CU-200 Control Unit with EXU-SI and EXU-SA

The Assa Abloy CU-200 Control Unit is the main electronic controller for the SW200 swing door operator. This version is supplied complete with the EXU-SI and EXU-SA extension boards, providing expanded input/output capacity for advanced safety, monitoring, and access control integration. It restores full system functionality and supports complex door configurations in demanding commercial environments.

Key Features & Benefits

• Complete Control Package – Includes CU-200 main control unit plus EXU-SI and EXU-SA extension boards for full system capability.

• Advanced Safety Integration – EXU-SI board supports monitored safety devices, ensuring compliance with modern safety standards.

• Enhanced Access Control – EXU-SA board provides additional inputs and outputs for keypads, readers, and building management interfaces.

• Precise Door Motion Control – Manages motor behaviour, opening/closing curves, push-force levels, and hold-open times.

• Reliable Commercial-Grade Electronics – Designed for high-duty environments requiring stable and consistent performance.

• Direct Replacement Unit – Fits SW200 operators using existing wiring looms and mounting points for straightforward servicing.

Technical Summary

• Product type: Complete control system (CU-200 + EXU-SI + EXU-SA)

• Compatibility: Assa Abloy SW200 swing door operator

• Functions: Motor control, activation handling, safety integration, access control expansion

• Included modules:

  • CU-200: Main MCU board

  • EXU-SI: Safety expansion module

  • EXU-SA: Access/logic expansion module

• Inputs supported: Safety sensors, monitored devices, push pads, access control

• Outputs: Motor drive, lock signals, status indicators

• Installation: Direct-fit replacement using OEM connectors
