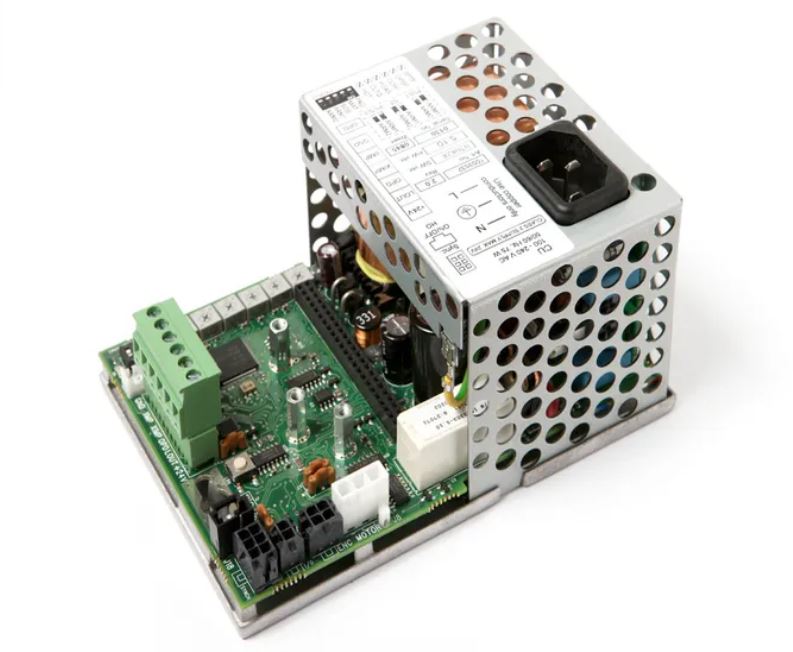

Assa Abloy SW100 – Control Unit (Swing Door Operator)

The Assa Abloy SW100 Control Unit is the primary electronic module for SW100 swing door operators, managing all core functions including motor control, activation signals, safety inputs, and system logic. This genuine replacement unit restores full operational performance and ensures the operator functions to original manufacturer standards.
Note: This control unit does not include extension boards such as the SA Card or SI Card. These are available separately.

Key Features & Benefits

• Full Operator Control – Regulates motor drive, opening and closing speeds, hold-open times, and push-force settings.

• Supports Safety and Activation Inputs – Integrates push pads, sensors, access control devices, and monitored safety systems.

• Genuine SW100 Component – Provides exact compatibility and stable operation with SW100 swing door operators.

• Advanced Diagnostics – Offers fault reporting and status indicators for efficient service work.

• Commercial-Grade Reliability – Designed for continuous duty in demanding environments.

• Easy Replacement – Direct-fit installation using existing wiring looms and mounting hardware.

Technical Summary

• Component type: Main control unit

• Compatibility: Assa Abloy SW100 swing door operator

• Function: Controls motor behaviour, safety inputs, activation devices, and system logic

• Supported inputs: Safety sensors, access control, push pads, monitored devices

• Outputs: Motor control, lock signals, status indicators

• Included: SW100 control unit only

• Not included: SA Card, SI Card (sold separately)

• Installation: Direct replacement using OEM connectors
