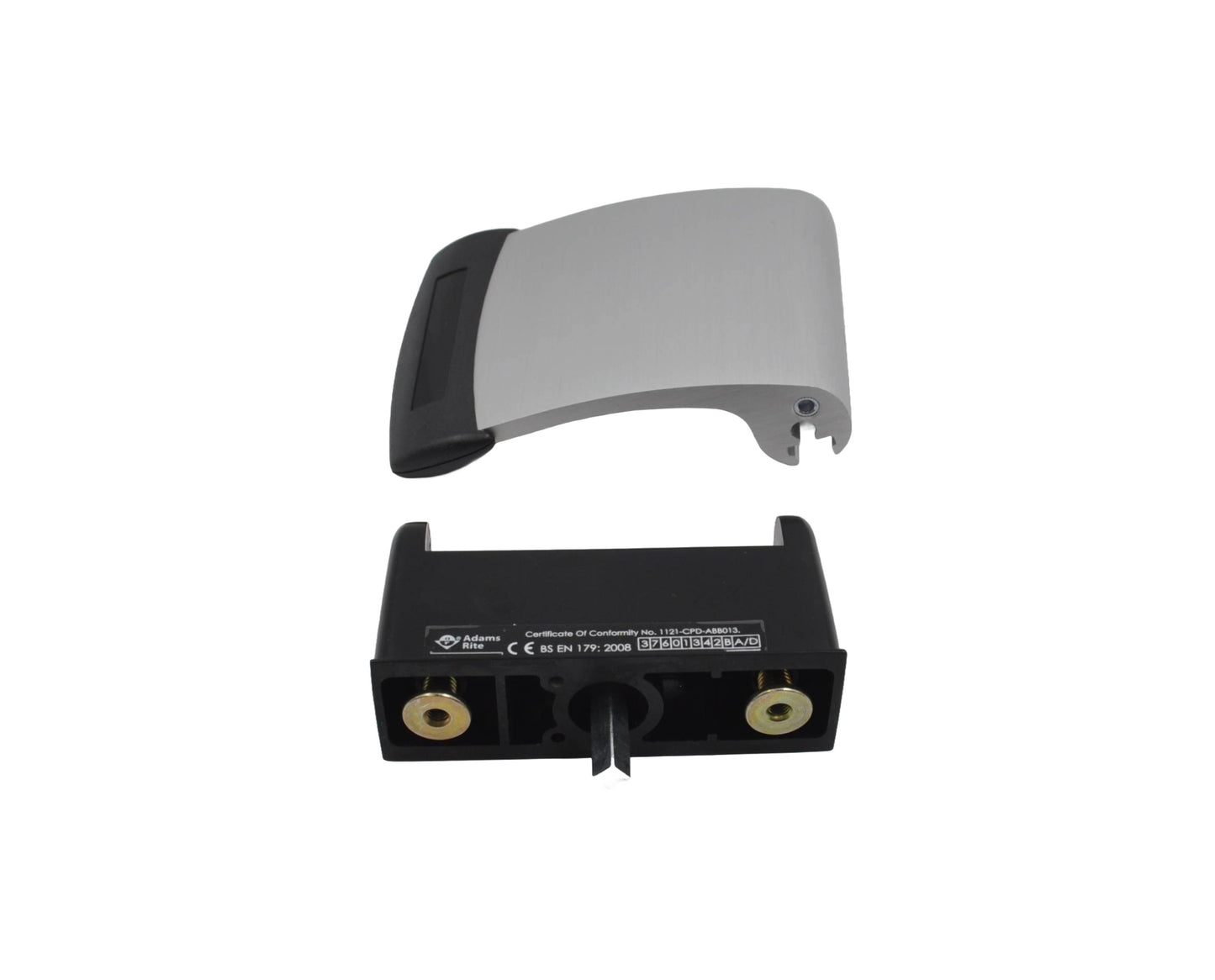

• Front view os a Adams Rite Push Paddle Handle components, including the paddle and dogging mechanism, separated from each other. On a white back ground.

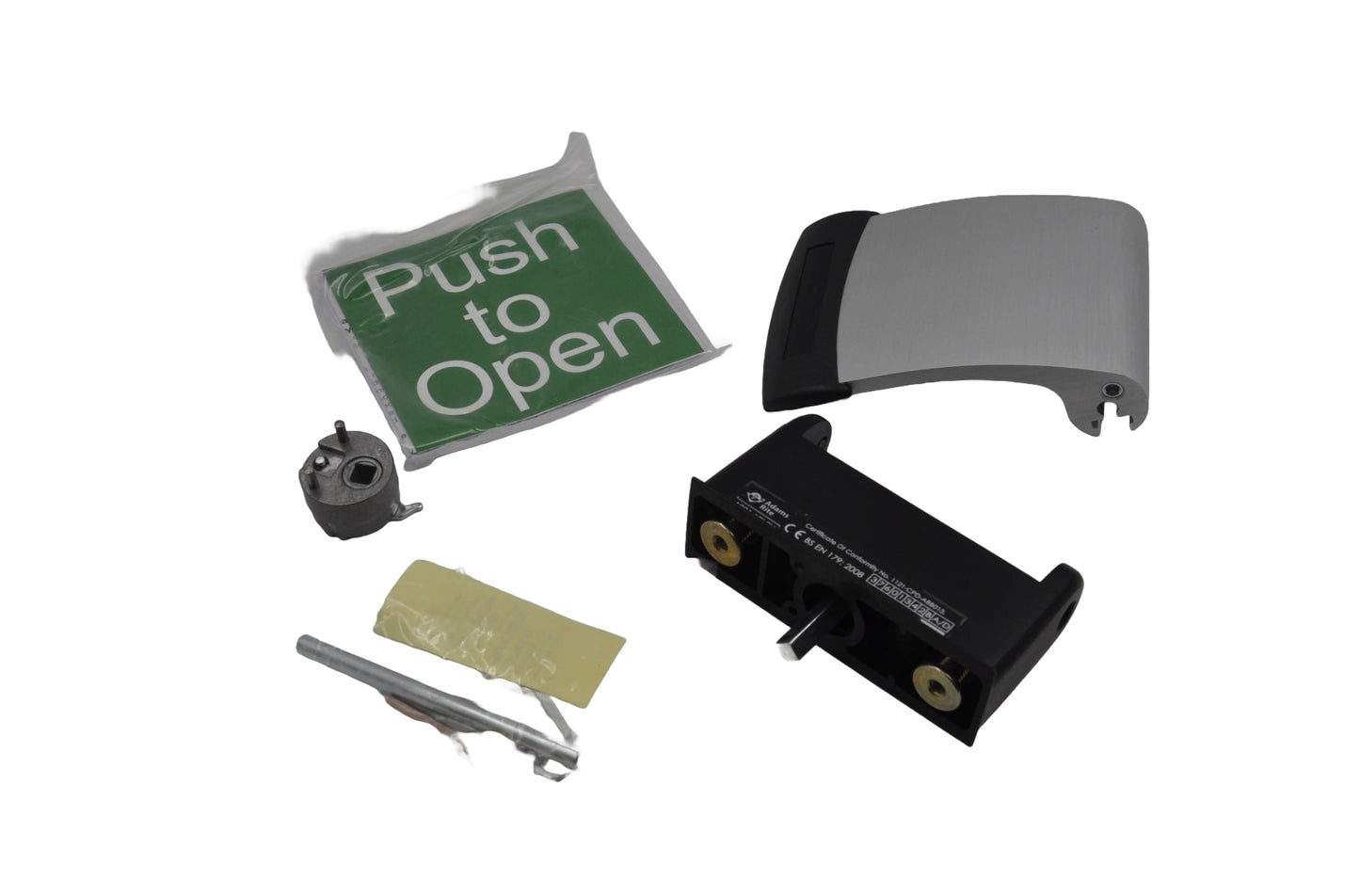

  • Front view of a Adams Rite Push Paddle Handle components, including the paddle and dogging mechanism, A green square sticker that says Push to Open , fixings and cam separated from each other. On a white back ground.
  • White square box that has Adams Rite, Assa Abloy printed on. On a white background.

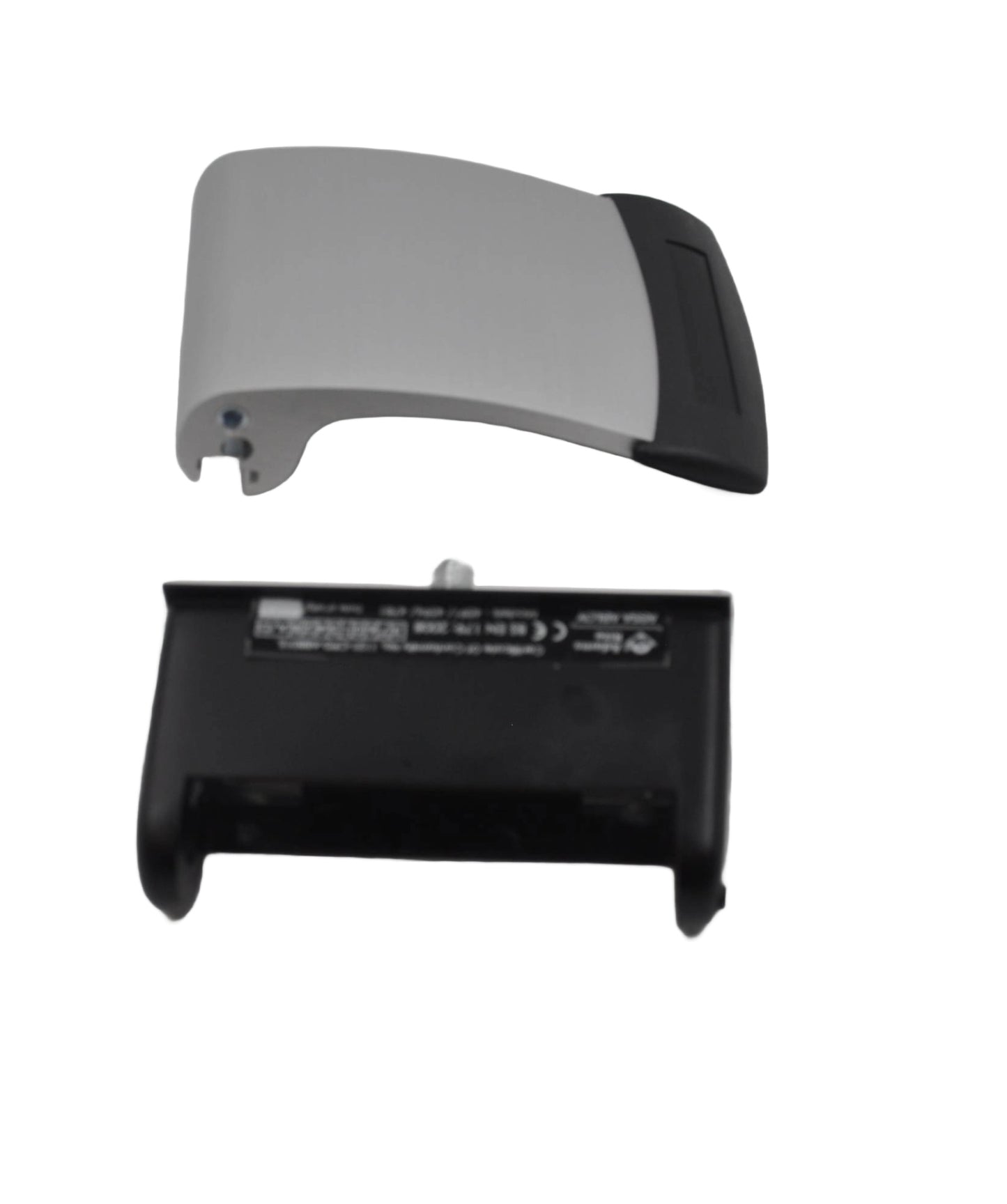

  • Front view os a Adams Rite Push Paddle Handle components, including the paddle and dogging mechanism, separated from each other. On a white back ground.

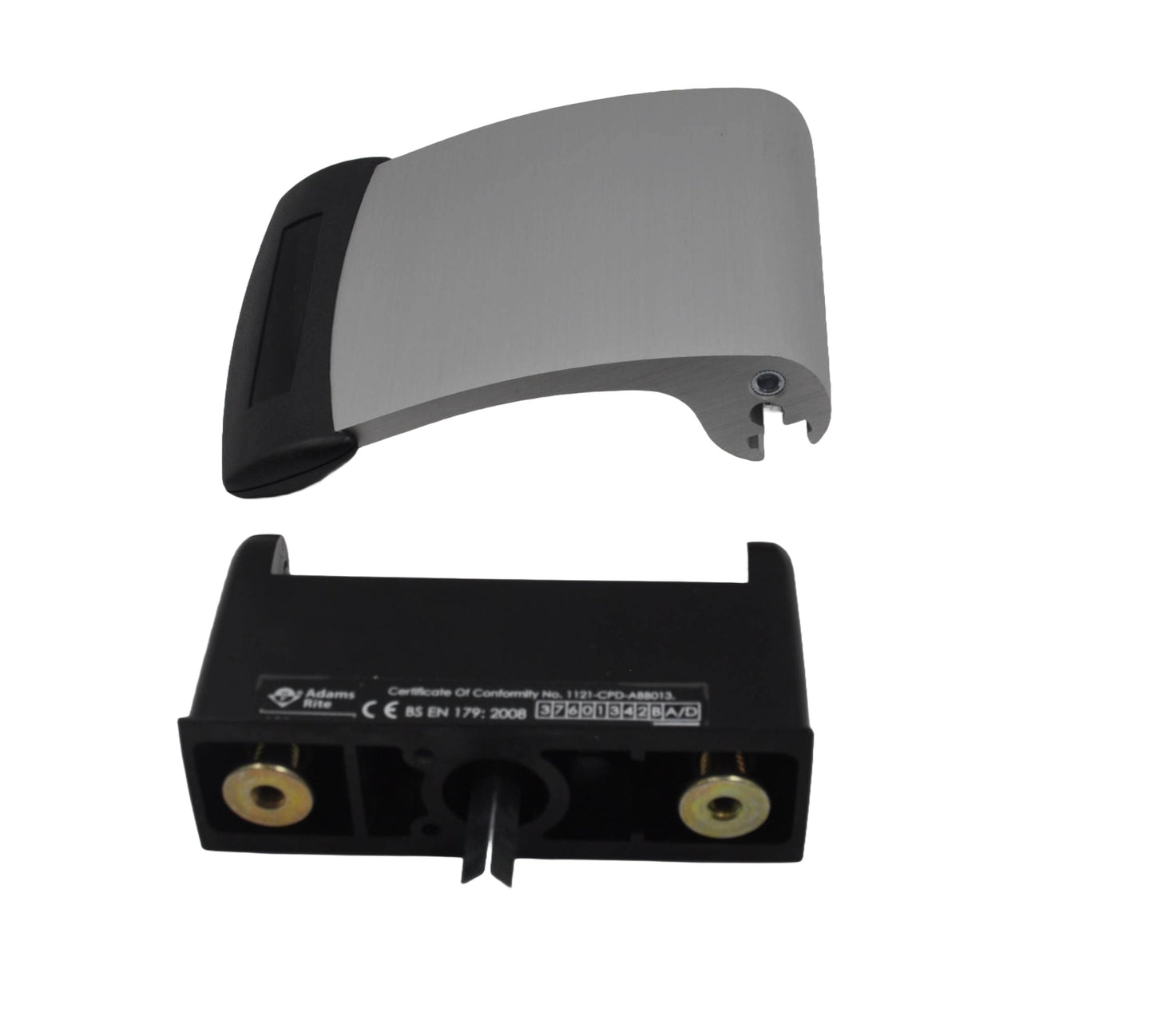

  • Front view os a Adams Rite Push Paddle Handle components, including the paddle and dogging mechanism, separated from each other. On a white back ground.

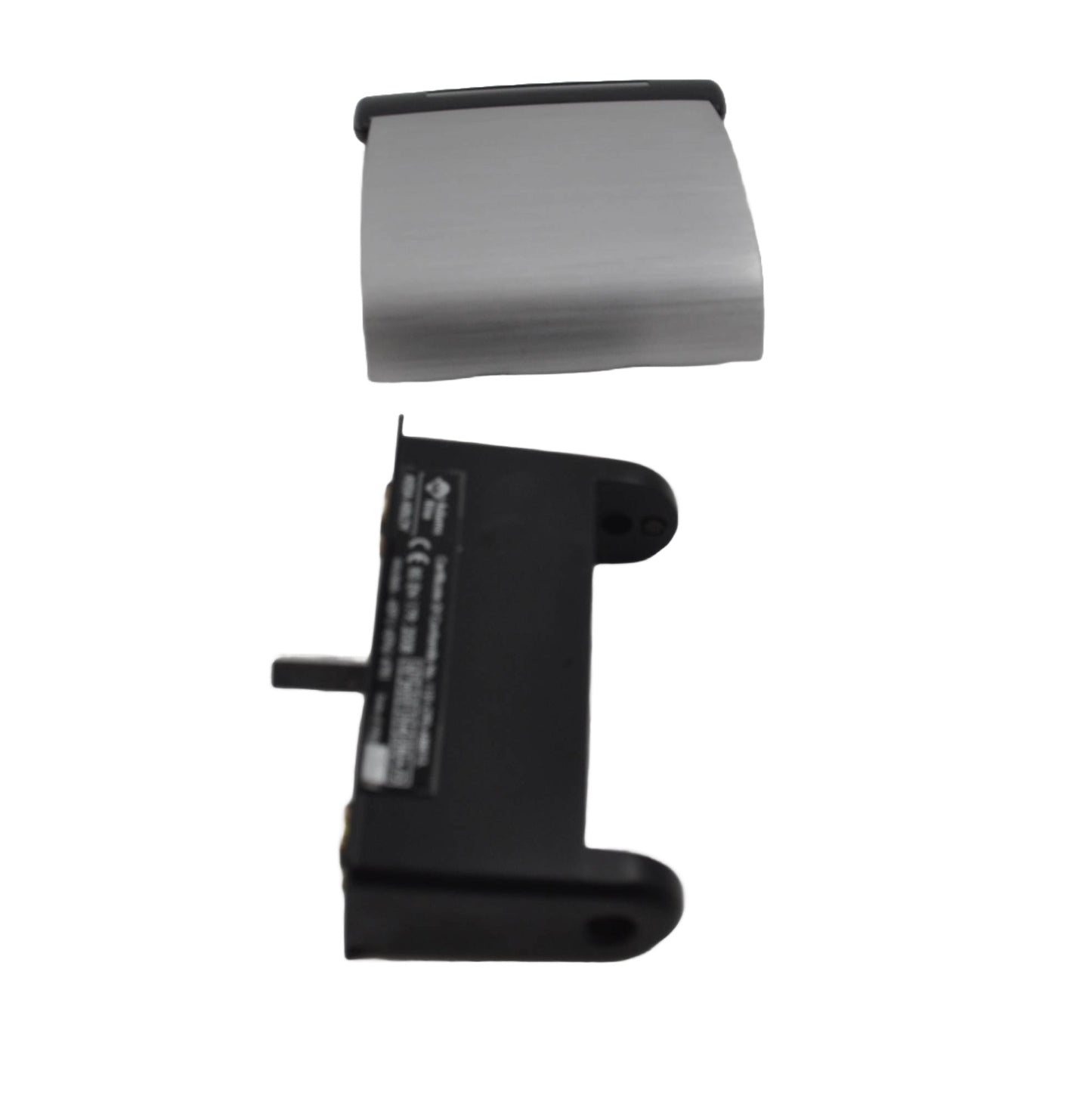

  • Top view os a Adams Rite Push Paddle Handle components, including the paddle and dogging mechanism, separated from each other. On a white back ground.

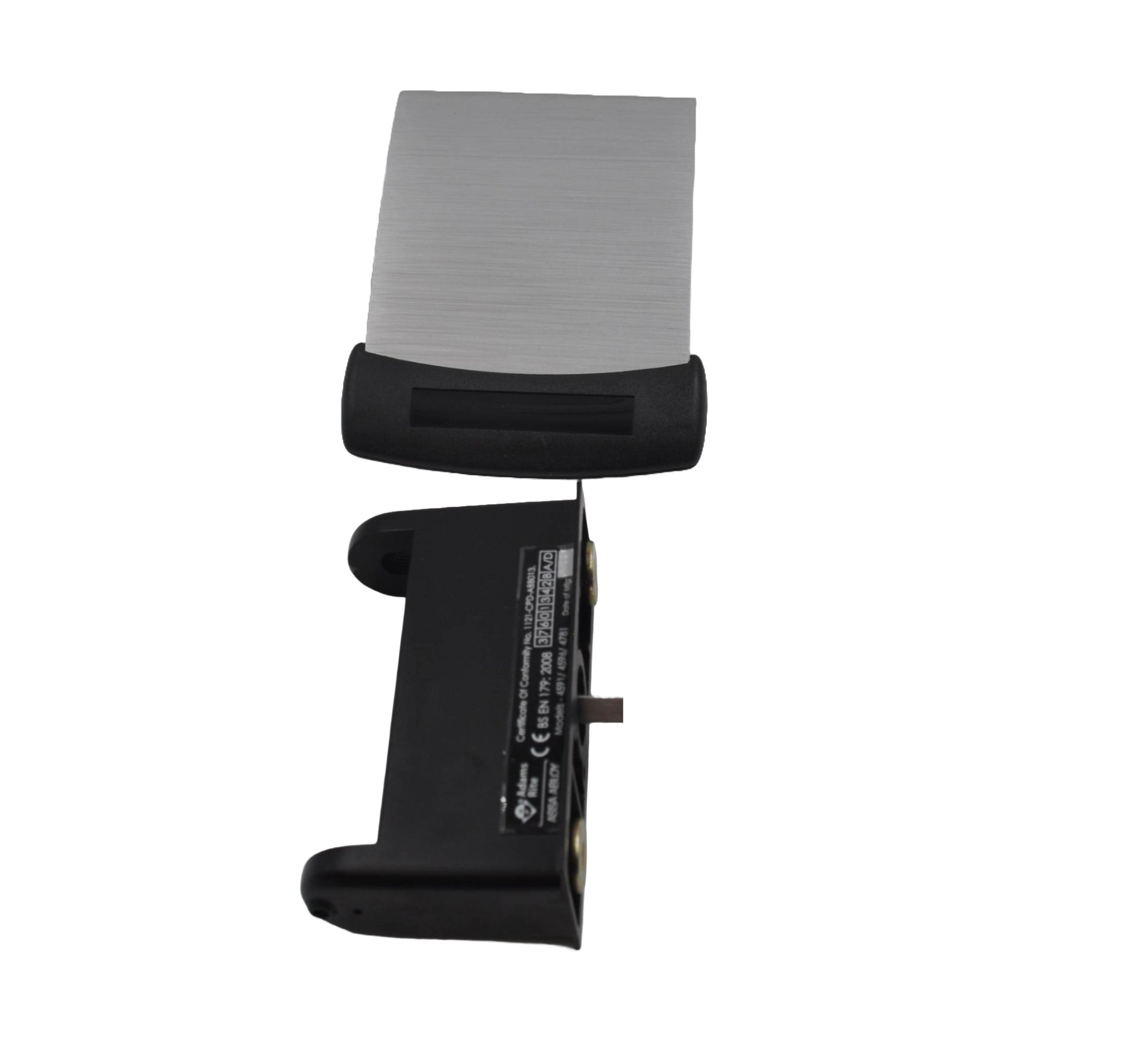

  • Top view os a Adams Rite Push Paddle Handle components, including the paddle and dogging mechanism, separated from each other. On a white back ground.
1 7

Adams Rite Push Paddle Handle - SAA

Adams Rite Push Paddle Handle - SAA

Net: £227.05
Incl. VAT: £272.46
Taxes included.

Adams Rite 4596 Europrofile Operation Paddle Handle – Push/Pull Function with Dogging Feature

The Adams Rite 4596 Paddle Handle provides a simple, robust alternative to traditional lever or knob handles on latched aluminium and steel doors. Designed for easy push or pull operation, this paddle handle is compatible with a wide range of Adams Rite deadlatches, including the 4750 Series, and features a Euro profile cut-out for added versatility in commercial access control applications.

Key Features & Benefits:

  • Push or Pull Operation:
    Easily configured for Push Left, Push Right, Pull Left, or Pull Right orientations. (Note: Dogging function is not supported in pull configurations.)

  • Euro Profile Cut-Out:
    Designed to accommodate euro cylinders, offering compatibility with access control and keyed entry systems.

  • Wide Compatibility:
    Suitable for use with Adams Rite 4300, 4500, 4700, 4750, 4900 Series Deadlatches, MS+1890 Deadlocks, and 2190/2290 Deadbolt/Deadlatch combos.

  • Durable Construction:
    Built to withstand high-traffic usage, tested to over 1 million cycles, making it ideal for demanding commercial environments.

  • Dogging Function:
    All versions come standard with dogging capability (excluding pull configurations), allowing the latch to remain retracted for free access when required.

  • Universal Fit:
    Designed for aluminium and steel doors with a thickness range of 44.45mm to 80mm, ensuring wide application compatibility.

  • Certified Performance:
    Tested and compliant with BS EN 179:2008, suitable for emergency exit applications.

Technical Specifications:

Specification Details
Operation Push or Pull (Left/Right Hand Configurable)
Dogging Function Included (Not for pull use)
Compatibility 4300, 4500, 4700, 4750, 4900, MS+1890, 2190/2290
Door Material Aluminium or Steel
Door Thickness Range 44.45mm – 80mm
Cycle Testing Tested to 1 million+ cycles
Standards Compliance BS EN 179:2008
Paddle Dimensions 85mm (W) x 125mm (H), 74.25mm max projection
Escutcheon Dimensions 105mm (H) x 34mm (W) x 58.7mm (D)
View full details

FAQ's

Which Adams Rite locks is the 4596 paddle handle compatible with?

The listing states compatibility with Adams Rite 4300, 4500, 4700, 4750 and 4900 Series deadlatches, MS+1890 deadlocks and 2190/2290 deadbolt/deadlatch combinations.

Can the paddle handle be configured for push or pull operation?

Yes. It can be configured as Push Left, Push Right, Pull Left or Pull Right.

Does the paddle handle include a dogging function?

The listing states that dogging is included on push configurations but is not supported in pull configurations.

What door thickness range is stated?

The handle is listed for compatible aluminium or steel doors from 44.45mm to 80mm thick.

Which standard is stated for the 4596 paddle handle?

The listing states compliance with BS EN 179:2008.
