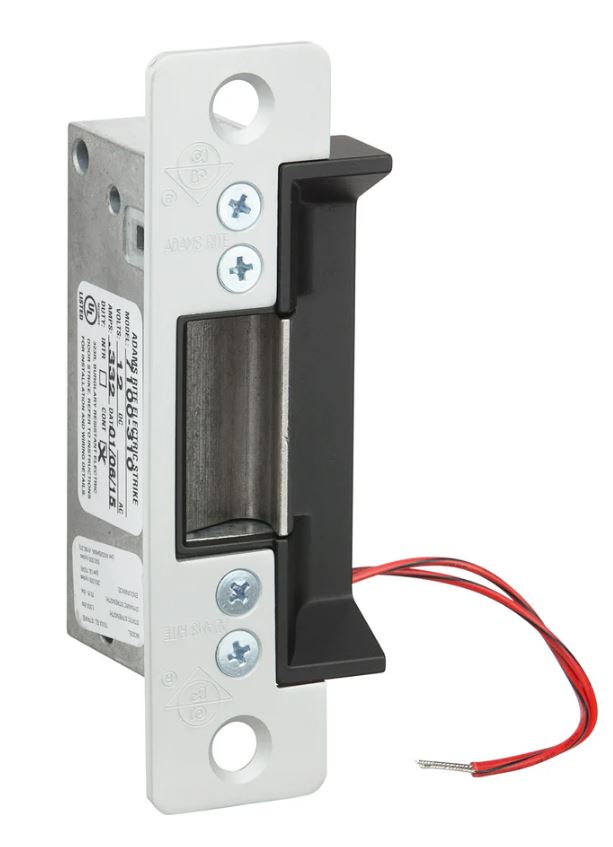

Adams Rite 7100 Series Electric Strikes – For Deadlatches & Cylindrical Locks
The Adams Rite 7100 Series is a versatile range of electric strikes designed for use with Adams Rite 4500, 4700 (discontinued), and 4900 series deadlatches, as well as cylindrical locksets with ½" to ⅝" latchbolt projection. Suitable for aluminium, hollow metal, and timber door applications, these strikes provide secure remote access control with reliable performance.
Key Features & Benefits
-
Compatible with Deadlatches & Cylindrical Locks:
Accepts latchbolts with ½"–⅝" projection, including Adams Rite deadlatches and most cylindrical locks. -
Remote Access Control:
Electrical actuation releases the keeper, allowing the latchbolt to be withdrawn without operating the lock manually. -
Field Selectable Fail Safe / Fail Secure:
Configurable at installation. Note: AC intermittent solenoids are not designed for continuous duty. -
Certified Security:
-
UL 1034 burglary-resistant listed
-
UL 294 (6th Edition) listed for access control applications
-
-
Durable Stainless Steel Keeper:
Ensures long service life and resistance to tampering. -
Flexible Installation Options:
-
Supplied with mounting screws, clips, and adhesive shims to accommodate different jamb or stile extrusions.
-
Lip extension kits available (flat faceplates only) for non-standard door/jamb conditions.
-
-
Monitoring Options Available:
Certain models can be supplied with dual monitoring switches for latch engagement and jaw status (not available on 7130/7131, 7140).
Models & Faceplate Options
| Model | Dimensions (W × H) | Faceplate Style | Notes |
|---|---|---|---|
| 7100 | 1-1/4" × 4-7/8" | Flat, radius corners | Standard model |
| 7101 | 1-1/4" × 4-7/8" | Radiused | For narrow stile double doors (inactive leaf) |
| 7110 | 1-7/16" × 7-15/16" | Flat, radius corners | Longer plate for extended coverage |
| 7111 | 1-7/16" × 10-1/4" | Flat, radius corners | Extra-long coverage plate |
| 7130 | 1-1/4" × 6-7/8" | Flat, radius corners | Covers strike opening when converting MS® to latch |
| 7131 | 1-1/4" × 6-7/8" | Radiused | As above, for narrow stile inactive leaf |
| 7140 | 1-1/4" × 4-7/8" | Flat, square corners | Supplied with clips and shims (no welded tabs) |
⚡ Electrical Specifications
-
Current Draw:
-
0.33A @ 12VDC, 1.42A @ 12VAC
-
0.22A @ 16VDC, 0.63A @ 16VAC
-
0.17A @ 24VDC, 0.74A @ 24VAC
-
-
Voltage Options: 12V, 16V, or 24V (AC or DC)
-
DC Continuous: Silent operation
-
AC Intermittent: Buzzing operation
-
-
Shipping Weight: 2 lbs (0.91 kg)
Ideal Applications
-
Commercial aluminium shopfronts
