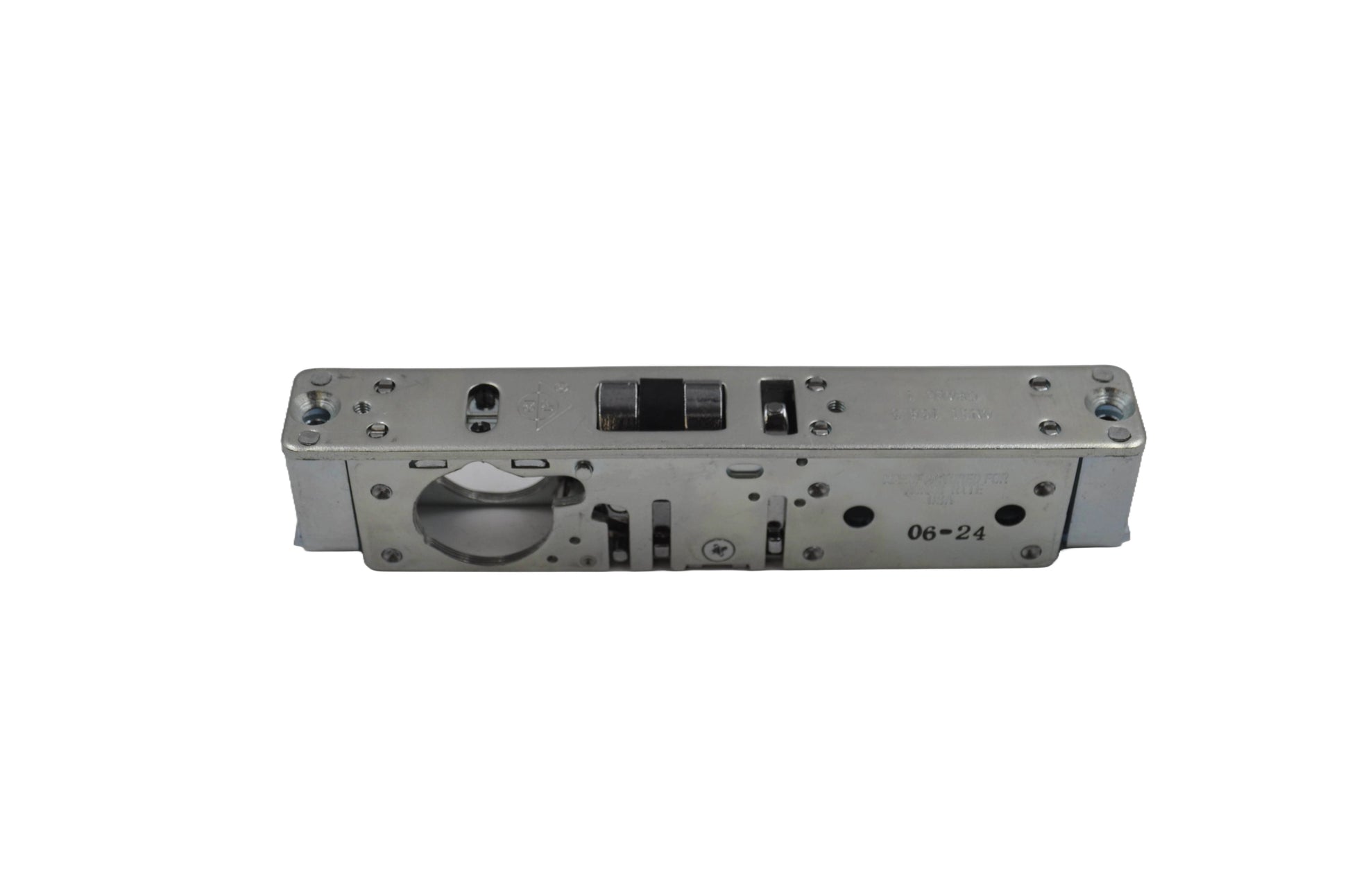

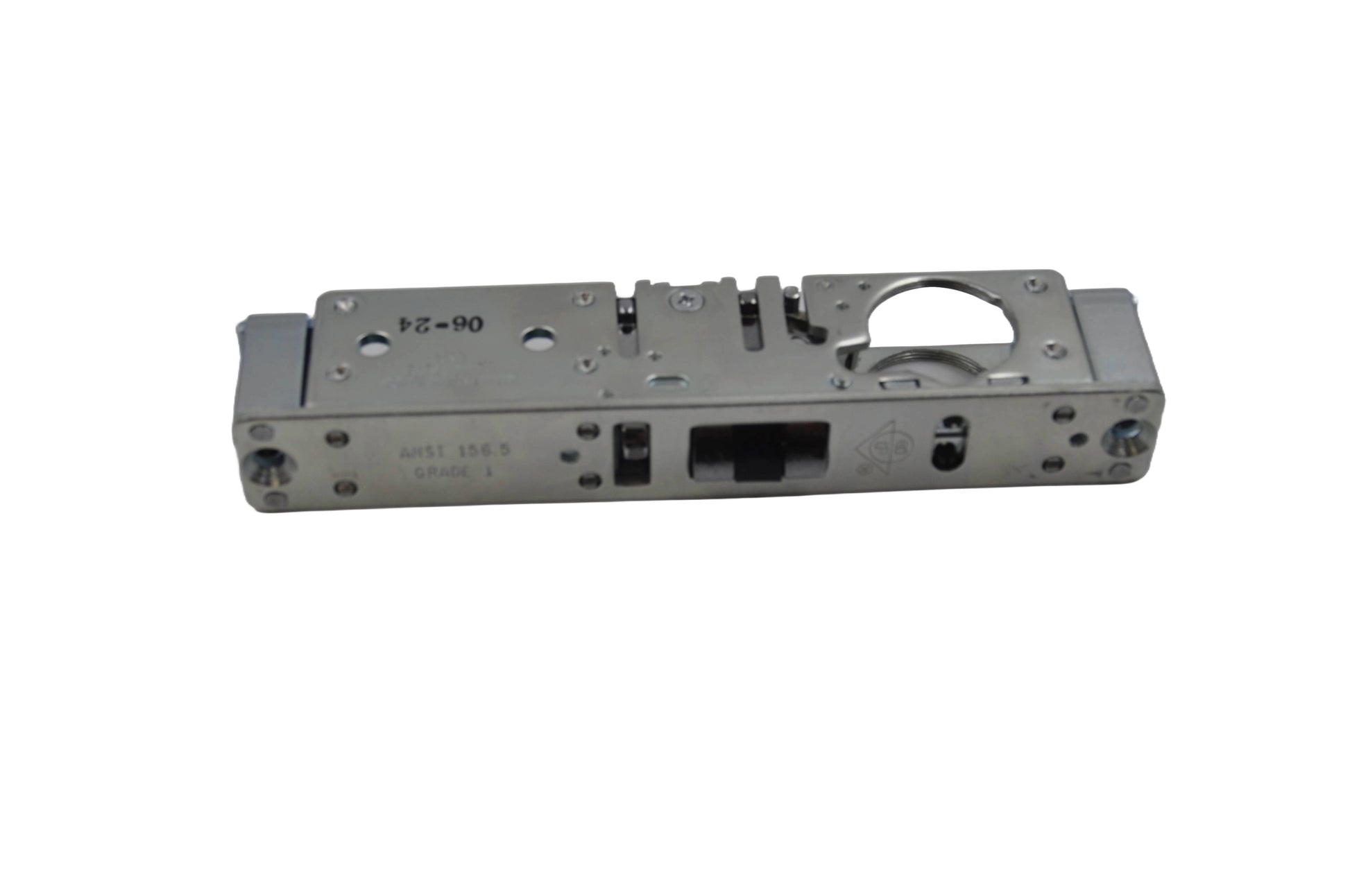

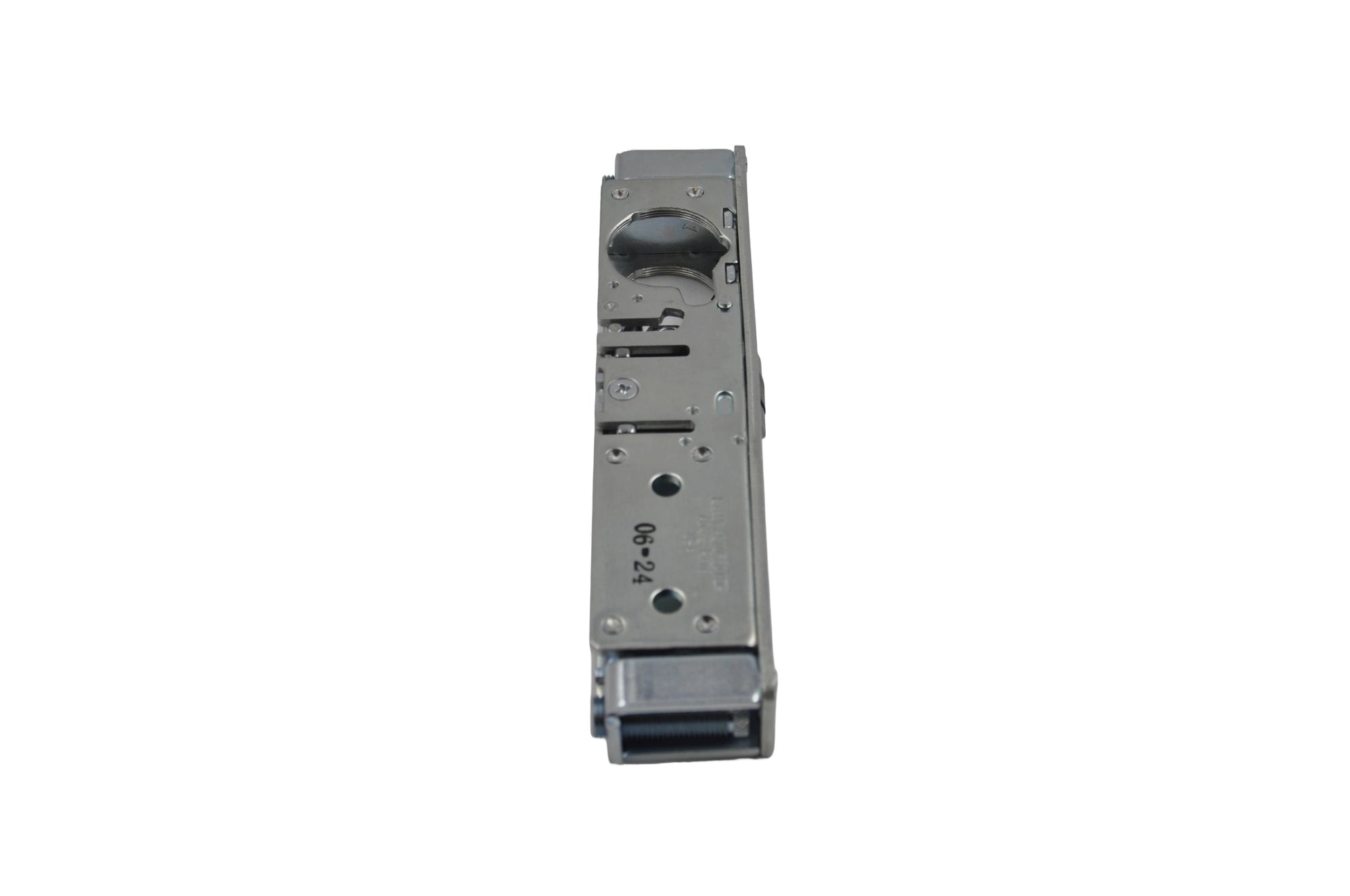

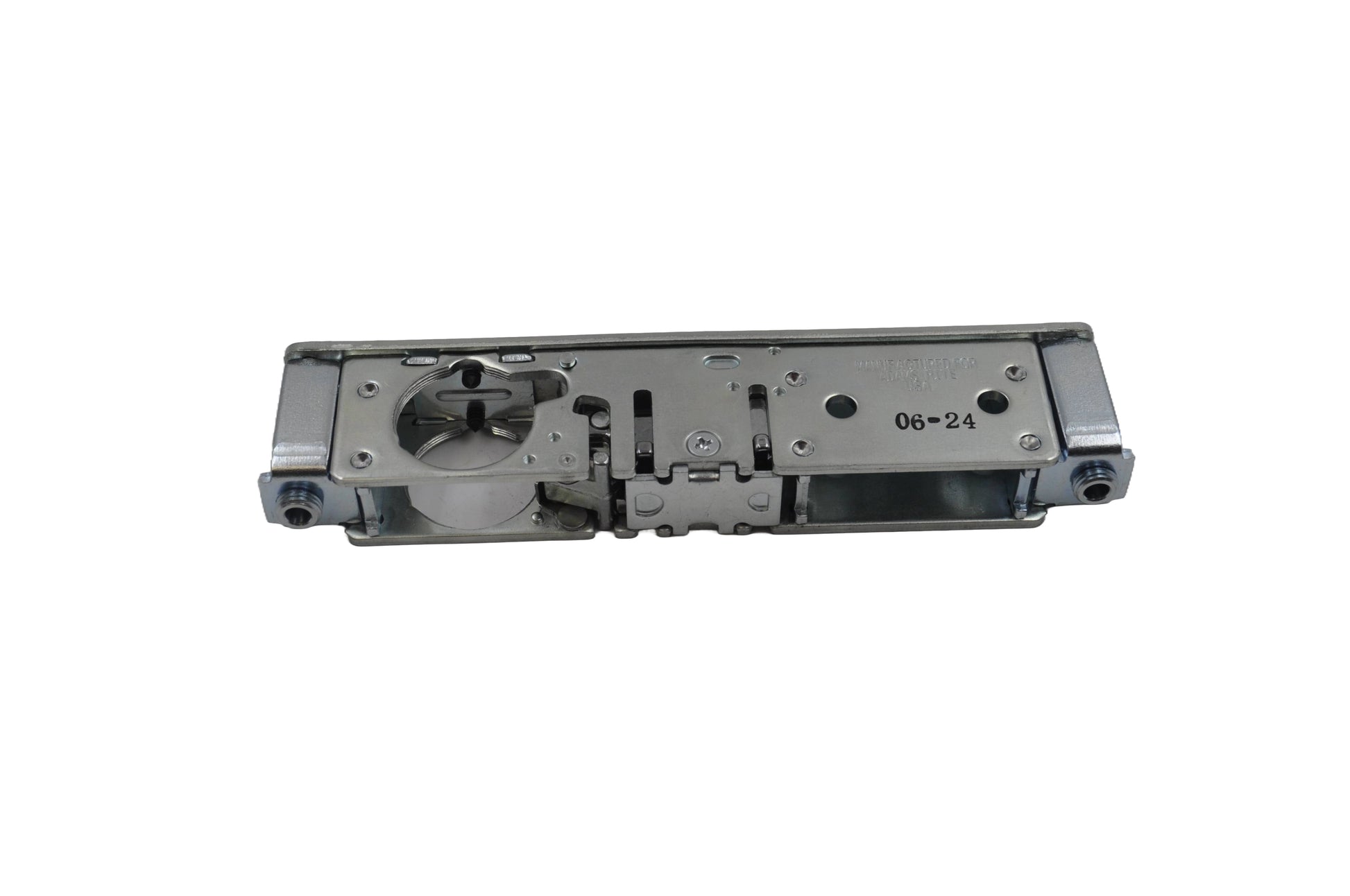

Adams Rite 4750 Euro Deadlatch Case

Adams Rite 4750 Euro Cylinder Profile Mortice Deadlatch – Commercial Aluminium Door Lock

The Adams Rite 4750 Deadlatch is a high-security mortice deadlatch designed specifically for narrow stile aluminium doors. Featuring a Euro cylinder profile, it allows flexible access control integration and is ideal for both new installations and retrofit applications in commercial and retail environments. This case-only unit enables the installer to specify the exact cylinder and furniture setup required.

Key Features & Benefits

Built for Aluminium Doors
Engineered to suit narrow stile commercial aluminium doors, providing a secure and durable locking solution.

Euro Cylinder Compatibility
Designed for use with standard Euro profile cylinders, offering wide compatibility with thumbturns, keys, and access control systems.

Case-Only Flexibility
Supplied as a lock case only, the 4750 allows the installer to choose their preferred cylinder and handle or paddle furniture.

Electric Strike Ready
Compatible with electric strikes for easy integration into electronic access systems, ideal for controlled entry in busy environments.

Security-Focused Design
Hardened steel pins in the latch bolt and an internal anti-pick shield enhance resistance to tampering and forced entry.

Available Backset Options
Choose from 24mm, 28mm, or 37mm backset sizes to suit various door configurations.

Technical Specifications

• Cylinder Type: Euro profile

• Backset Options: 24.6mm, 28.6mm, or 38.1mm

• Case Depths:

  • 40.6mm (for 24mm backset)

  • 44.7mm (for 28mm backset)

  • 54.4mm (for 37mm backset)

• Case Dimensions: 173mm (Height) x 25mm (Width)

• Maximum Door Gap: 3–5mm

• Latch Throw: 12.7mm

• Faceplate: Aluminium (ordered separately)

• Forend Material: Steel

• Latch Security: Hardened latch bolt with steel pins and anti-pick baffle

Ideal for commercial shopfronts, offices, and controlled access points, the Adams Rite 4750 Euro Profile Deadlatchoffers secure performance and complete flexibility in cylinder and furniture selection.
