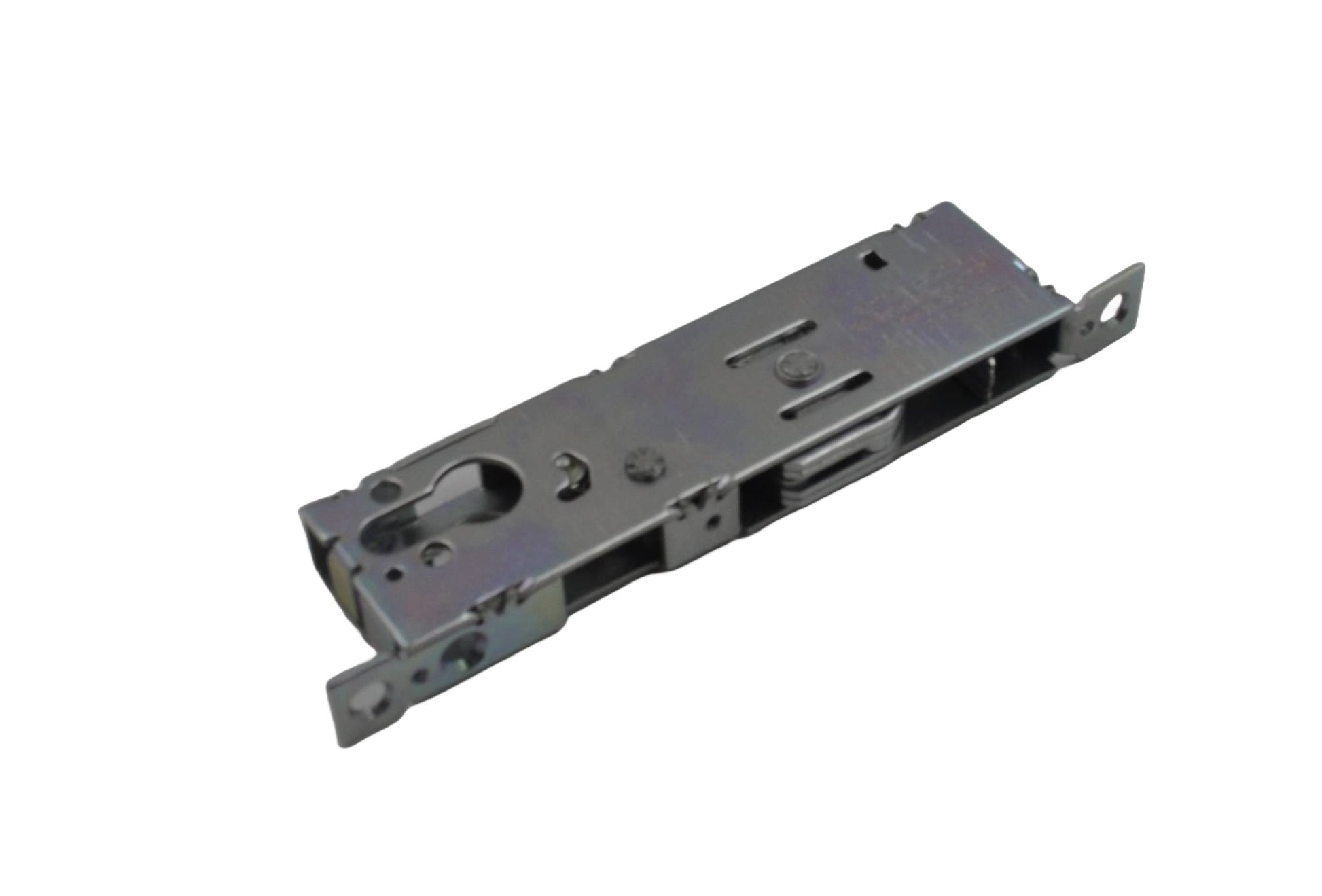

• Top view of a silver-colored Adams Rite 30mm backset hook bolt case made of zinc-plated steel, designed for use with aluminium doors and Euro Profile cylinders on a white background.

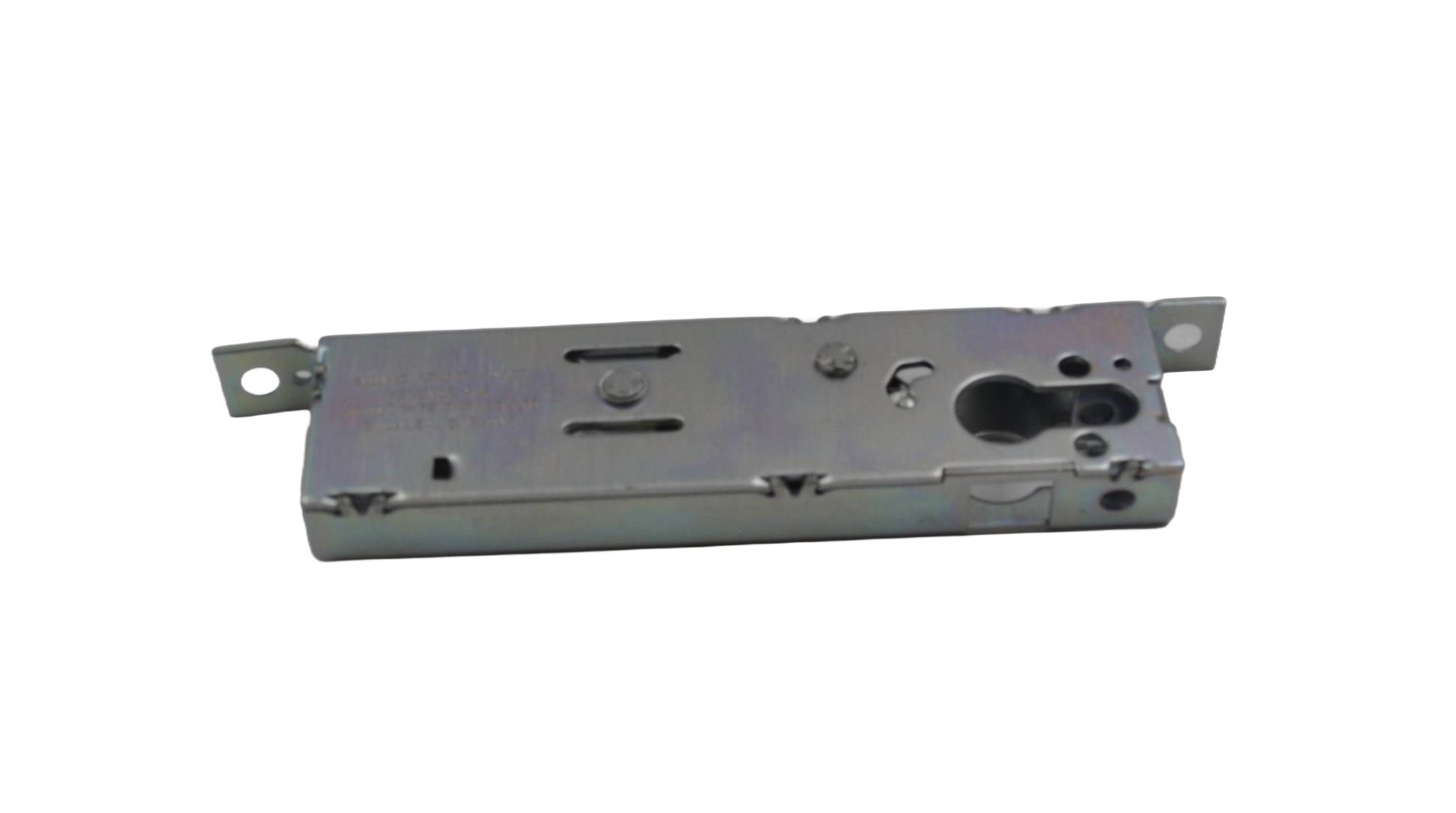

  • Top rearview of a silver-colored Adams Rite 30mm backset hook bolt case made of zinc-plated steel, designed for use with aluminium doors and Euro Profile cylinders on a white background.

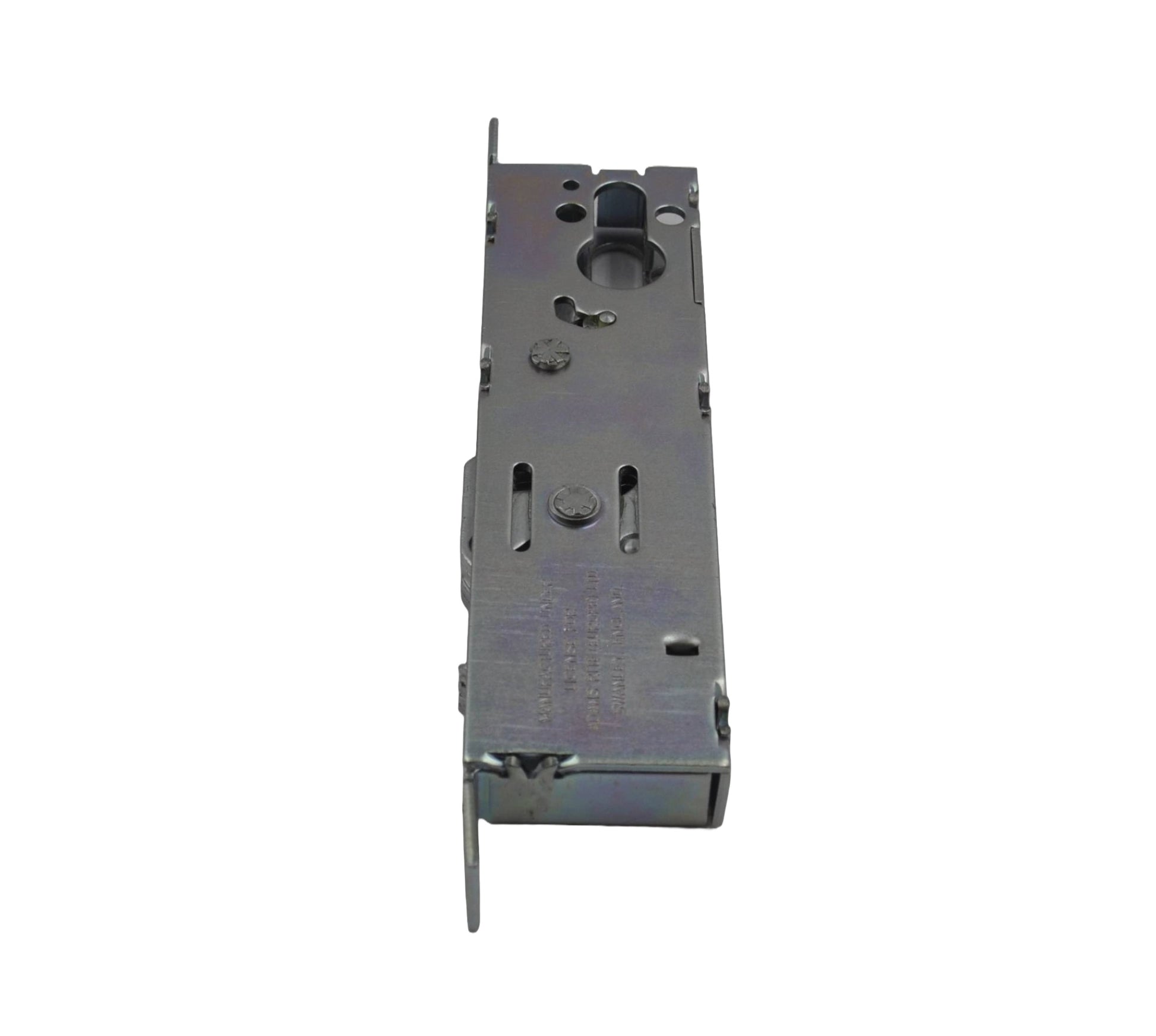

  • Top side view of a silver-colored Adams Rite 30mm backset hook bolt case made of zinc-plated steel, designed for use with aluminium doors and Euro Profile cylinders on a white background.

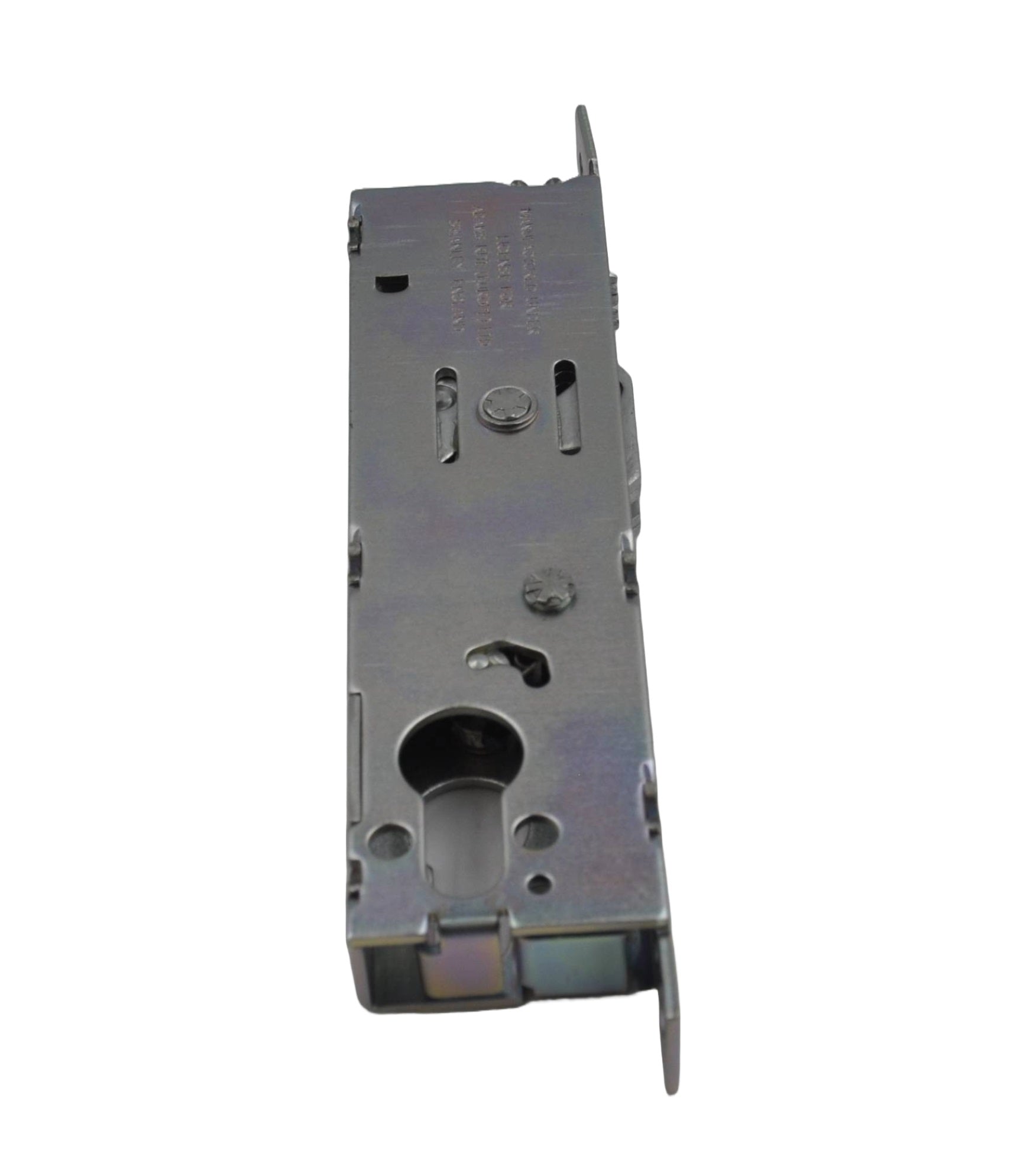

  • Top side view of a silver-colored Adams Rite 30mm backset hook bolt case made of zinc-plated steel, designed for use with aluminium doors and Euro Profile cylinders on a white background.

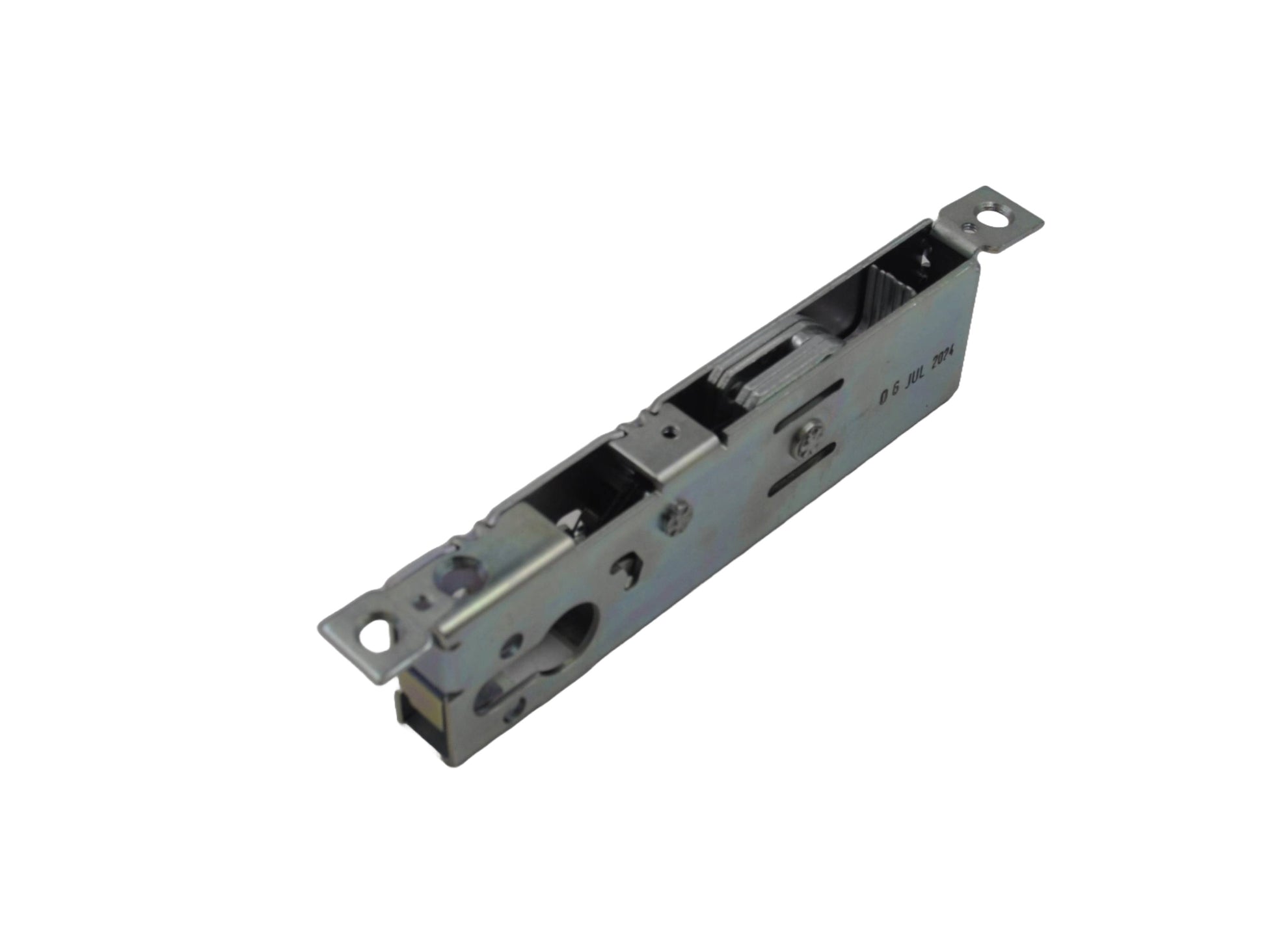

  • Top view of a silver-colored Adams Rite 30mm backset hook bolt case made of zinc-plated steel, designed for use with aluminium doors and Euro Profile cylinders on a white background.
1 5

Adams Rite 30mm Backset Hook Bolt

Adams Rite 30mm Backset Hook Bolt

Net: £28.44
Incl. VAT: £34.13
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

The Adams Rite MS2200 hook-bolt lock case in this listing has a 30mm backset and accepts a Euro profile cylinder. It is intended for compatible aluminium swing and sliding doors, including narrow-stile shopfront applications.

30mm hook-bolt version

The plated steel case contains a laminated steel hook bolt with an alumina-ceramic core for resistance to sawing. The hook bolt has a 20mm throw and is operated by the separately supplied Euro profile cylinder or thumbturn.

  • Backset: 30mm.
  • Overall dimensions: approximately 195 × 25 × 46mm.
  • Handing: non-handed lock case.
  • Cylinder profile: 17mm Euro profile.
  • Doorparts stock code: 222702.

Supply and fitting checks

One hook-bolt lock case is supplied. The faceplate and cylinder are not included. This listing is the 30mm version; there is no 25mm size selector on this page.

Measure the existing backset and compare the lock case, fixings, hook position and faceplate profile before ordering. Match the cylinder length and strike arrangement to the door. For help choosing a replacement, send us the existing lock markings and photographs.

View full details

Manufacturer Part Number

FAQ's

What type of doors is the Adams Rite 2200 Series hook bolt designed for?

It is designed for compatible aluminium swing and sliding doors using a euro-profile cylinder arrangement.

Which backset options are listed?

The product information lists 25mm and 30mm backset options.

What security feature is built into the hook bolt?

The hook bolt contains an alumina ceramic core intended to improve resistance to hacksaw attack.

Is the lock handed?

No. The listing states that the lock is non-handed and can be used on compatible left- or right-hand doors.

Are the faceplate and euro cylinder included?

No. The listing states that the faceplate is supplied separately and the euro-profile cylinder is not included.
