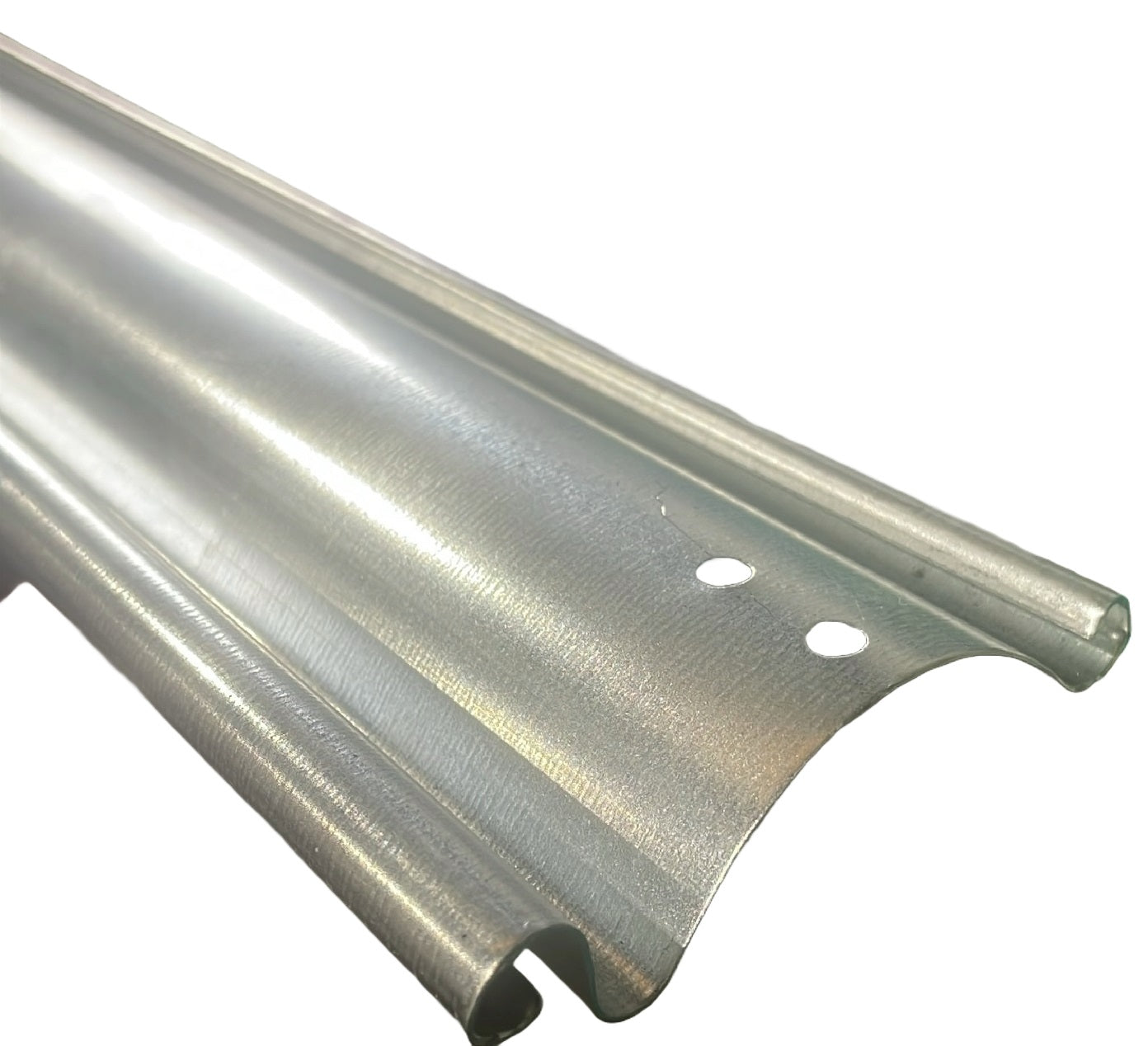

• Top view close-up of a 76mm galvanised steel solid shutter lath with a slightly brushed metal finish. On a white background.
1 1

75mm Steel Shutter lath

75mm Steel Shutter lath

per metre (inc. VAT) – charged by total whole metres

75mm Galvanised Steel Solid Shutter Lath – 22SWG (0.7mm Thick) - Price is per Linear MTR. Max Delivery Length 4500mm

The 75mm Galvanised Steel Solid Shutter Lath is a durable and cost-effective solution, ideal for commercial and industrial roller shutters. Manufactured from high-quality, pre-galvanised steel coil (DX51 Z2 275g to BS EN 10346:2009), these cold-rolled steel laths interlock securely, forming robust and long-lasting shutter curtains. This 0.7mm (22SWG) version is lightweight yet resilient, widely used across the UK for its strength, easy installation, and straightforward maintenance.



Key Features & Benefits:

  • High-Quality Galvanised Steel:
    Made from pre-galvanised steel coil (DX51 Z2 275g), offering excellent corrosion resistance and durability.



  • Solid and Secure Construction:
    Robust interlocking design ensures maximum strength, security, and reliability for shutters in demanding environments.



  • Cost-Effective and Versatile:
    Offers excellent value and durability, ideal for various commercial, industrial, and retail applications.



  • Easy Maintenance & Repair:
    Designed for straightforward installation and simple repair, minimising downtime and costs.



  • Windload Resistance:
    Capable of meeting windload standards up to Class 5 at 5000mm widths (when fitted with windlock guides).

Technical Specifications:

  • Material: Galvanised Steel, DX51 Z2 275g to BS EN 10346:2009
  • Thickness: 22SWG (0.7mm)
  • Lath Width: 75mm
  • Weight: Approx. 9kg per square metre
  • Windload Class: Up to Class 5 (with appropriate windlock guide system)
  • Finish: Galvanised Steel
  • Common Applications: Commercial & industrial roller shutter doors

Price is per Linear MTR. Max Delivery Length 4500mm.

For collection only we can manufacture up to 8000mm (Collection from head office Caerphilly)

As both options are cut to size and therefore are Non Refundable. Please update the notes section with cut size required *Please note if you want the cut lath end locked you will need to purchase them separately on the site.

View full details

FAQ's

What material and size is the 75mm shutter lath?

It is a 75mm solid roller shutter lath made from pre-galvanised steel, specified at 22SWG or 0.7mm thick.

How is the 75mm steel shutter lath sold?

The listing states that the lath is priced and supplied per linear metre and is cut to the required size.

What maximum delivery length is stated?

The maximum delivery length stated is 4500mm. The listing also states that lengths up to 8000mm can be manufactured for collection from the head office.

Are endlocks included with the cut shutter lath?

No. The listing states that endlocks must be purchased separately if the cut lath is required end-locked.

Can cut-to-size shutter lath be returned?

The listing states that cut-to-size lath is non-refundable, so the required cut length should be confirmed before ordering.
