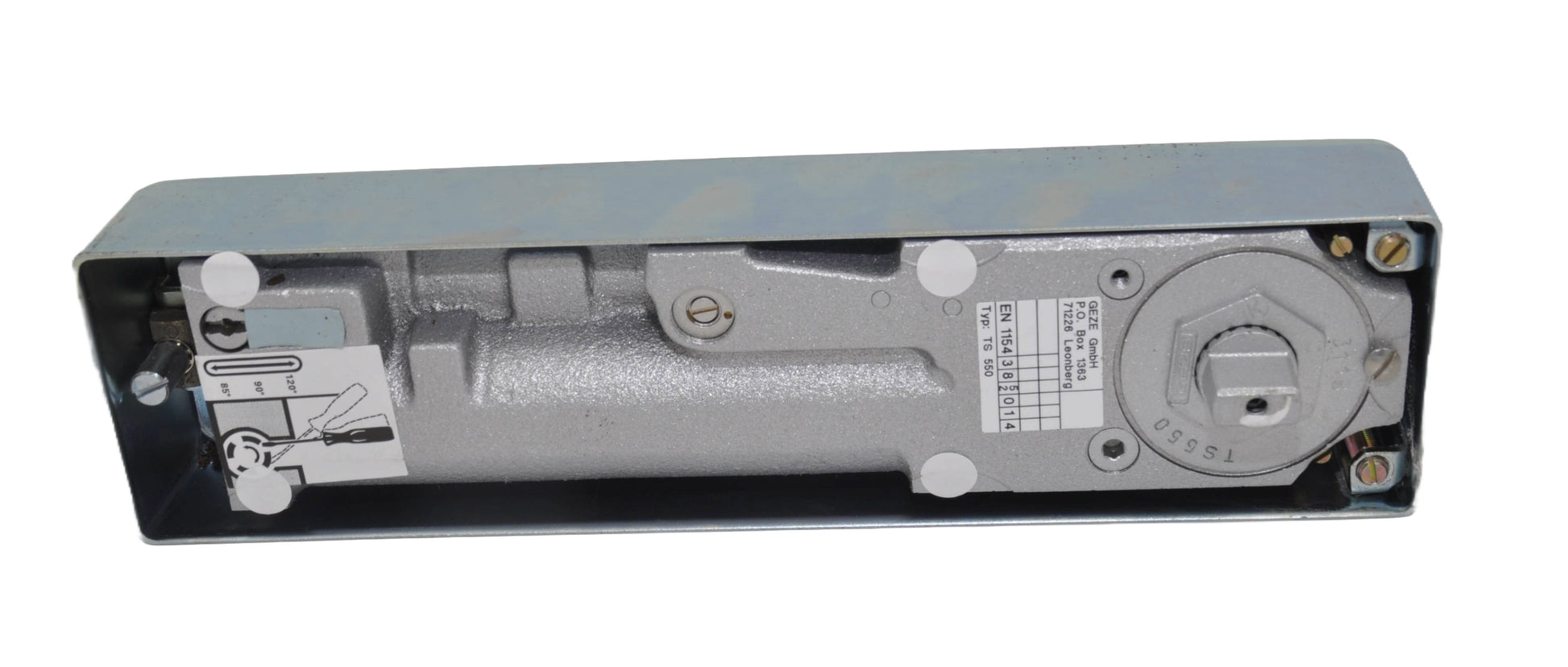

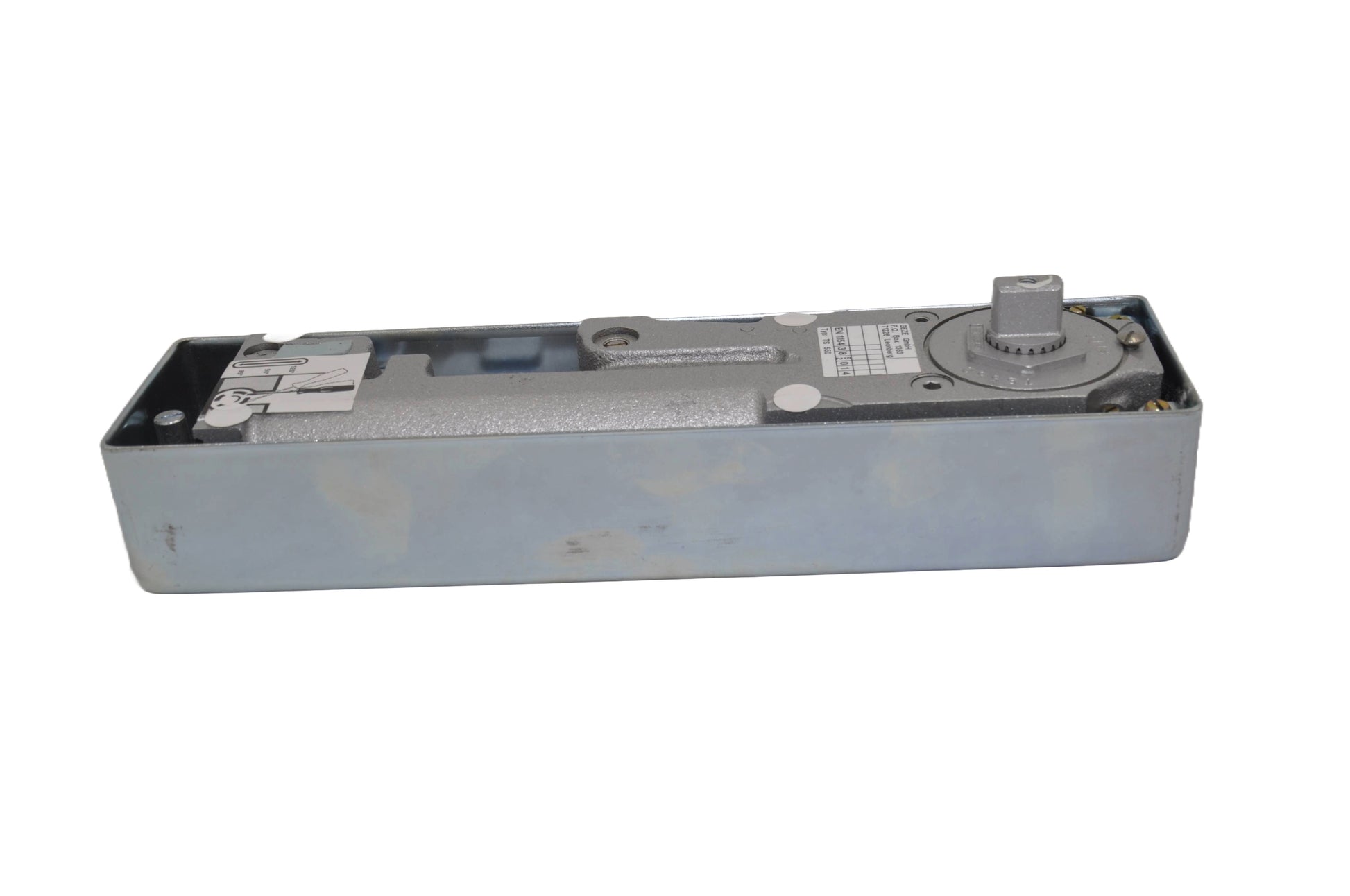

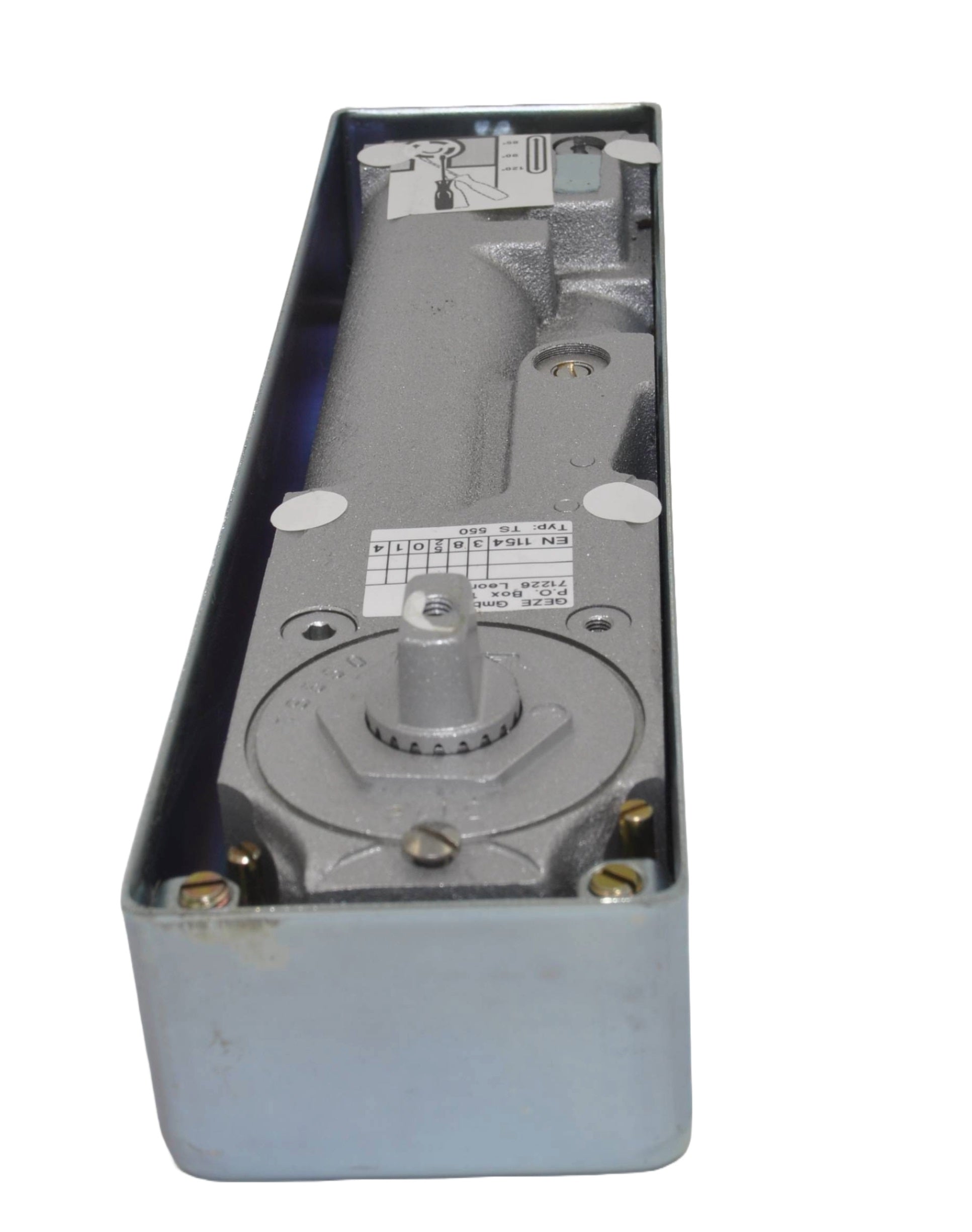

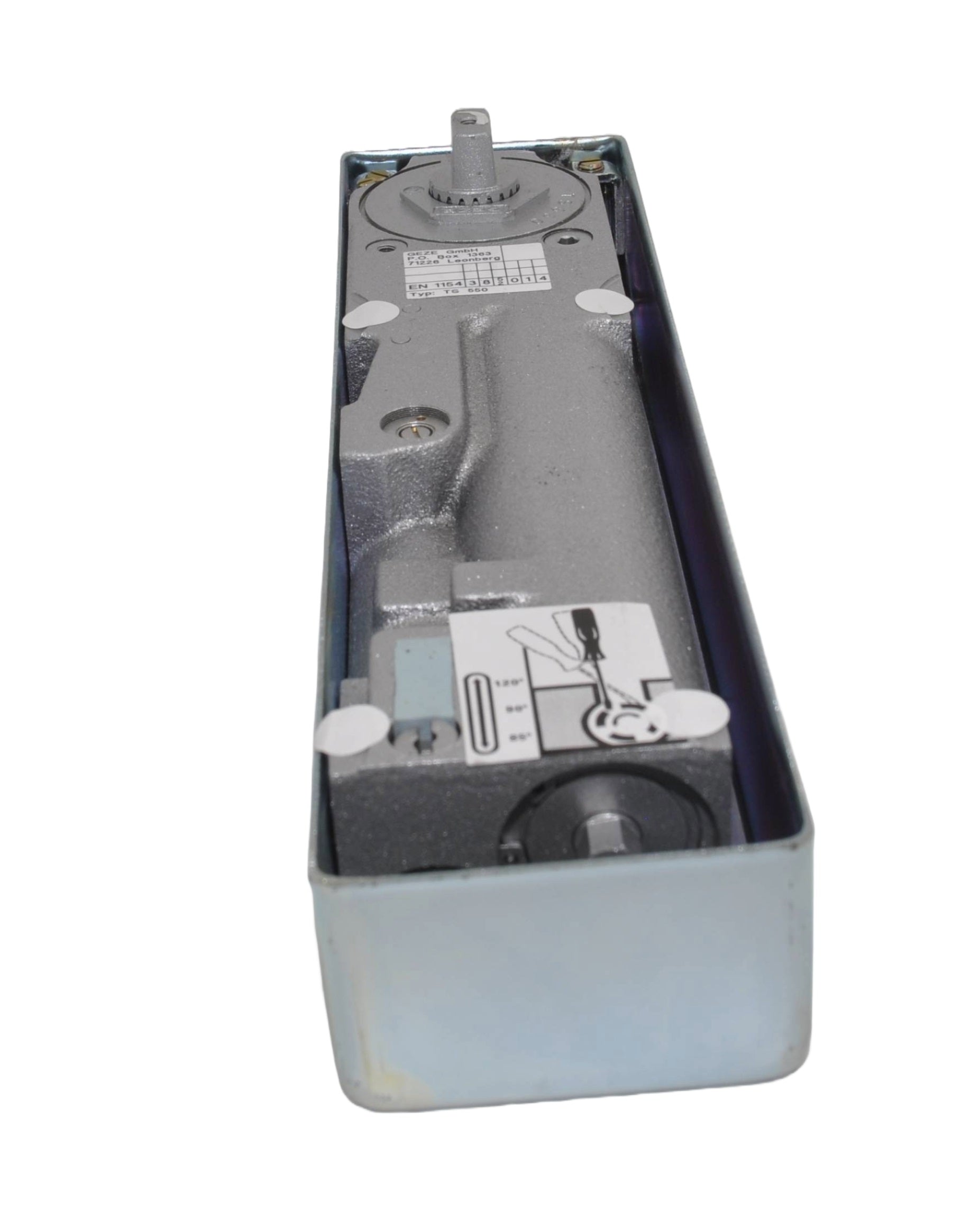

GEZE TS550 Floor Spring Unit with Foundation Box and Spindle

GEZE TS550 Floor Spring Unit with Foundation Box and Spindle

The GEZE TS550 Floor Spring Unit is a robust, high-performance concealed door closer system designed for both internal and external single- and double-action doors. It effortlessly handles heavy-duty applications, providing exceptional durability, reliability, and smooth control of door movements, making it perfect for high-traffic commercial environments.

Key Features & Benefits:

• Heavy-Duty Performance:
  Suitable for doors weighing up to 300kg and up to 1400mm leaf width, ideal for frequently used heavy doors and gates.

• Adjustable Closing Force:
  EN3 to EN6 adjustable closing strength to accommodate a range of door sizes and weights.

• Single & Double Action Operation:
  Versatile design for use with both single-action and double-action doors, with a maximum opening angle of 170°.

• Integrated Back Check & Delayed Closing:
  Provides controlled door opening and adjustable delayed closing for enhanced safety and operational efficiency.

• Stepless Adjustment & Safety Valve:
  Features stepless adjustment of closing speed and latching action, plus an integrated safety valve to prevent overloading.

• Non-Handed & Concealed Mounting:
  Concealed, floor-mounted design is non-handed for versatile installation in various door configurations.

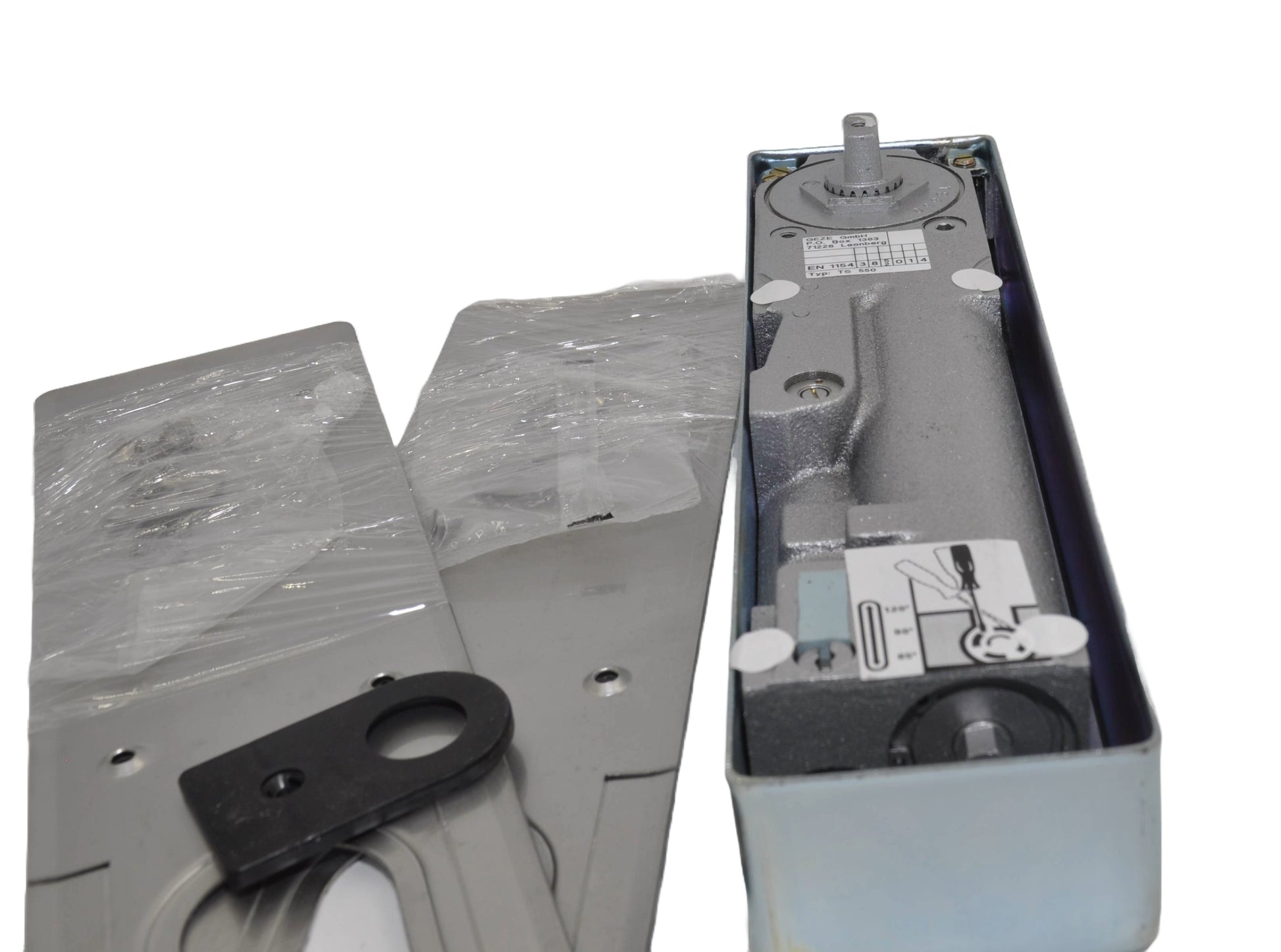

• Foundation Box Included:
  Supplied with a foundation box and spindle for ease of installation.

Product Specifications:

• Closing Force: Adjustable EN3 - EN6

• Max Door Width: 1400mm

• Max Door Weight: 300kg

• Installation: Concealed Floor Mounting

• Door Type: Single and Double Action

• Hold-Open Range: 85° – 165° (Non Hold-Open version also available)

• Adjustable Features: Closing Speed, Latching Action, Back Check, Delayed Closing

• Handing: Non-Handed (Suitable for both Left & Right installations)

• Recommended: Use sealing compound for external installations to prevent premature corrosion.
