Eurodrive/DRS 40Nm (E40M/O) Roller Shutter Tubular Motor

Eurodrive/DRS 40Nm (E40M/O) Roller Shutter Tubular Motor – Manual Override for Single-Width Garage Doors

The Eurodrive/DRS E40M/O is a genuine Eurodrive tubular motor specially engineered for single-width domestic roller shutter garage doors, including mini and compact varieties with 55mm slats. Featuring a manual override function and multiple adaptor sizes, this motor delivers reliable, quiet, and efficient operation.

Key Features & Benefits:

• Quiet and Smooth Operation:
  Ensures low-noise opening and closing cycles, ideal for domestic applications.

• Manual Override Capability:
  Provides continuous access even during power outages, enhancing convenience and reliability.

• Simple Installation:

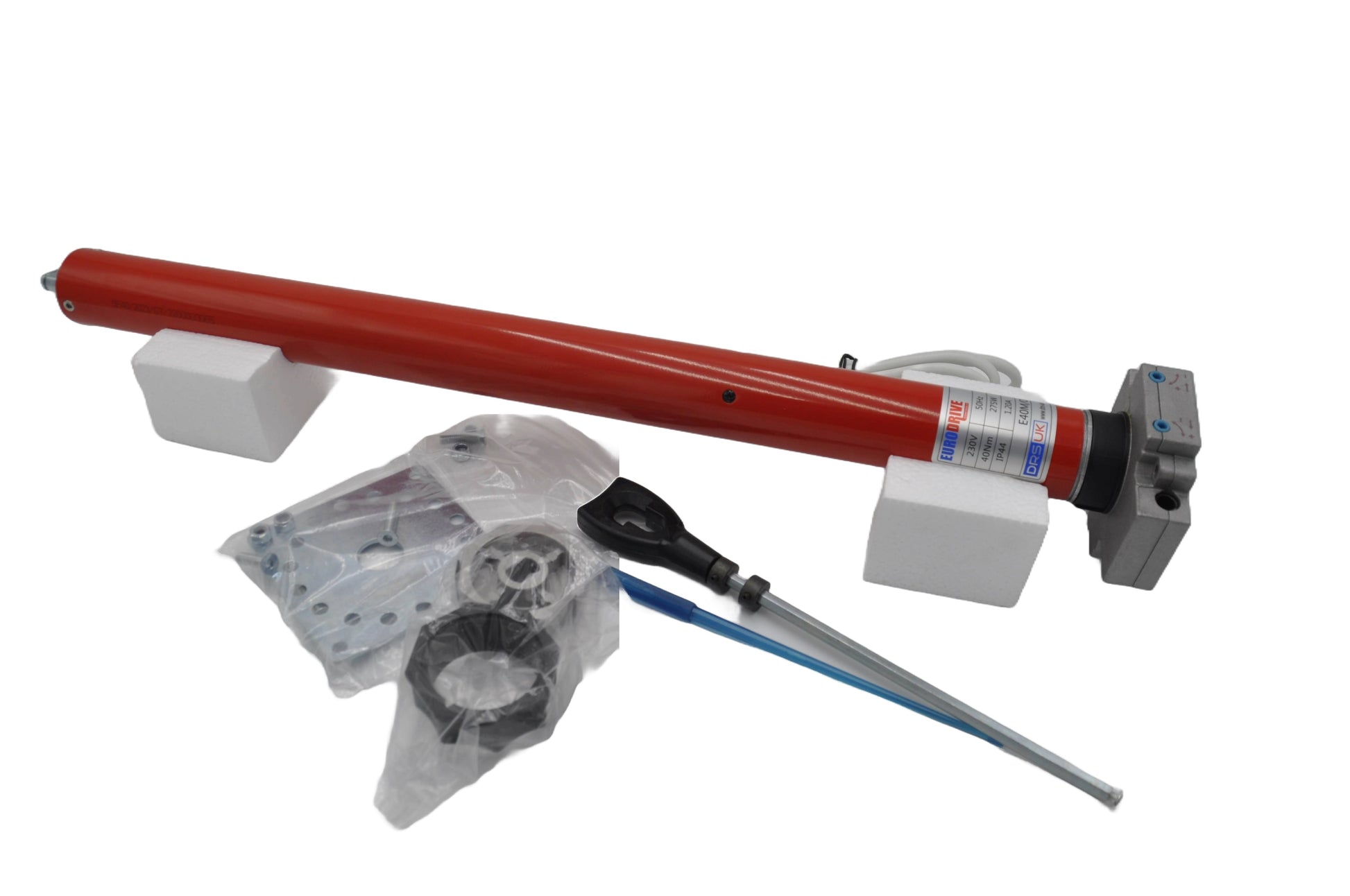

  Supplied with detailed fitting instructions and a limit adjuster tool, facilitating straightforward installation and setup.

• Flexible Barrel Adaptors:
  Compatible with 60mm and 70mm octagonal barrels, and the popular SWS 4" barrel. Additional adaptors available on request.

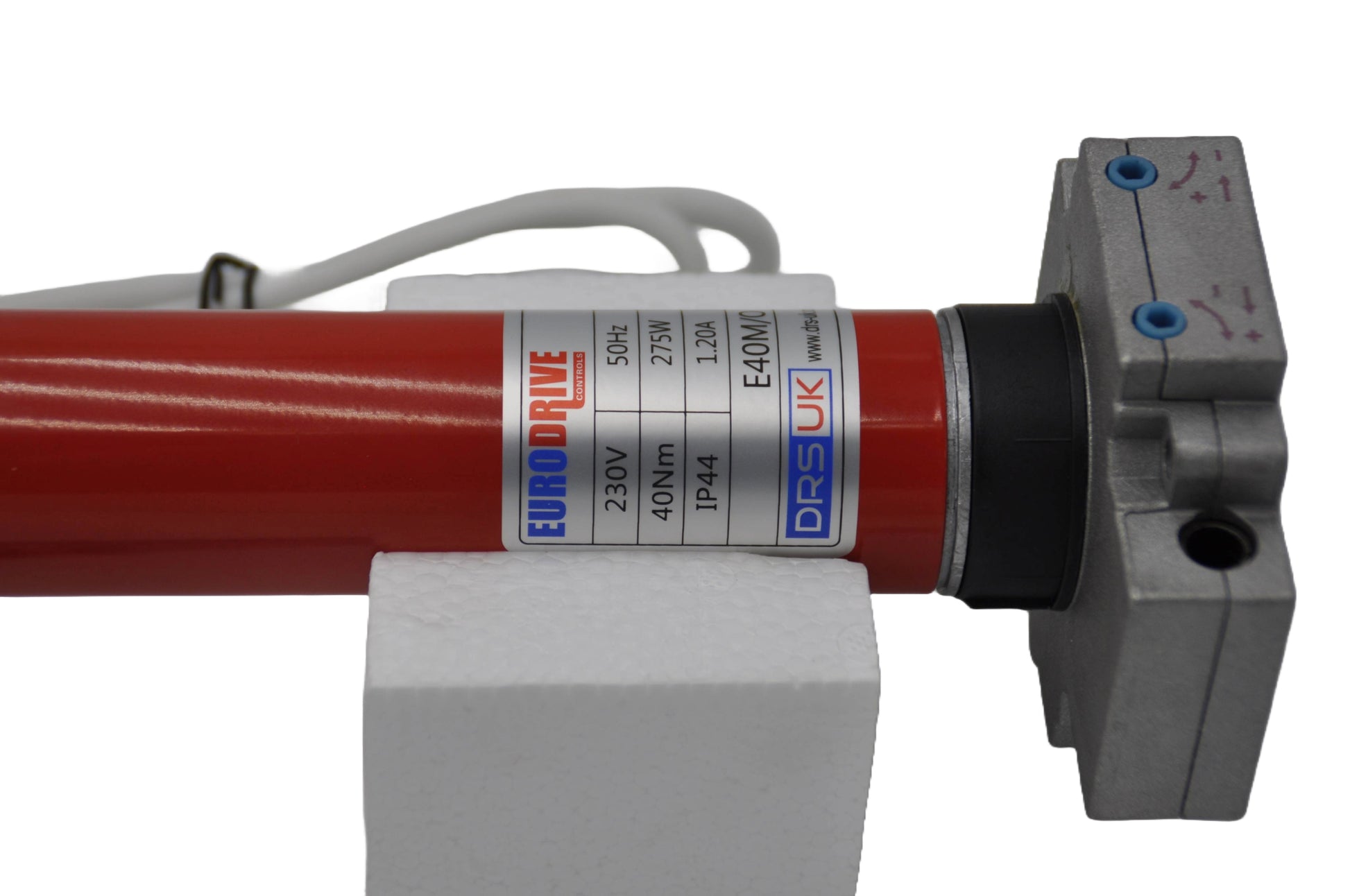

Technical Specifications:

• Torque: 40Nm

• Lift Capacity: Approx. 60kg

• Power Consumption: 275 Watts

• Current Draw: 1.20 Amps

• Rotation Speed: 15 RPM

• Limit Turns: 15

• Barrel Diameter: 45mm

• Barrel Length: 625mm

• Suitable Barrel Adaptors: 60mm, 70mm octagonal, SWS 4" (others available on request)

• Compatible Door Slats: Suitable for mini or compact doors with 55mm lath/slats
