Record RC Swing – Safety sensor for automatic swing doors

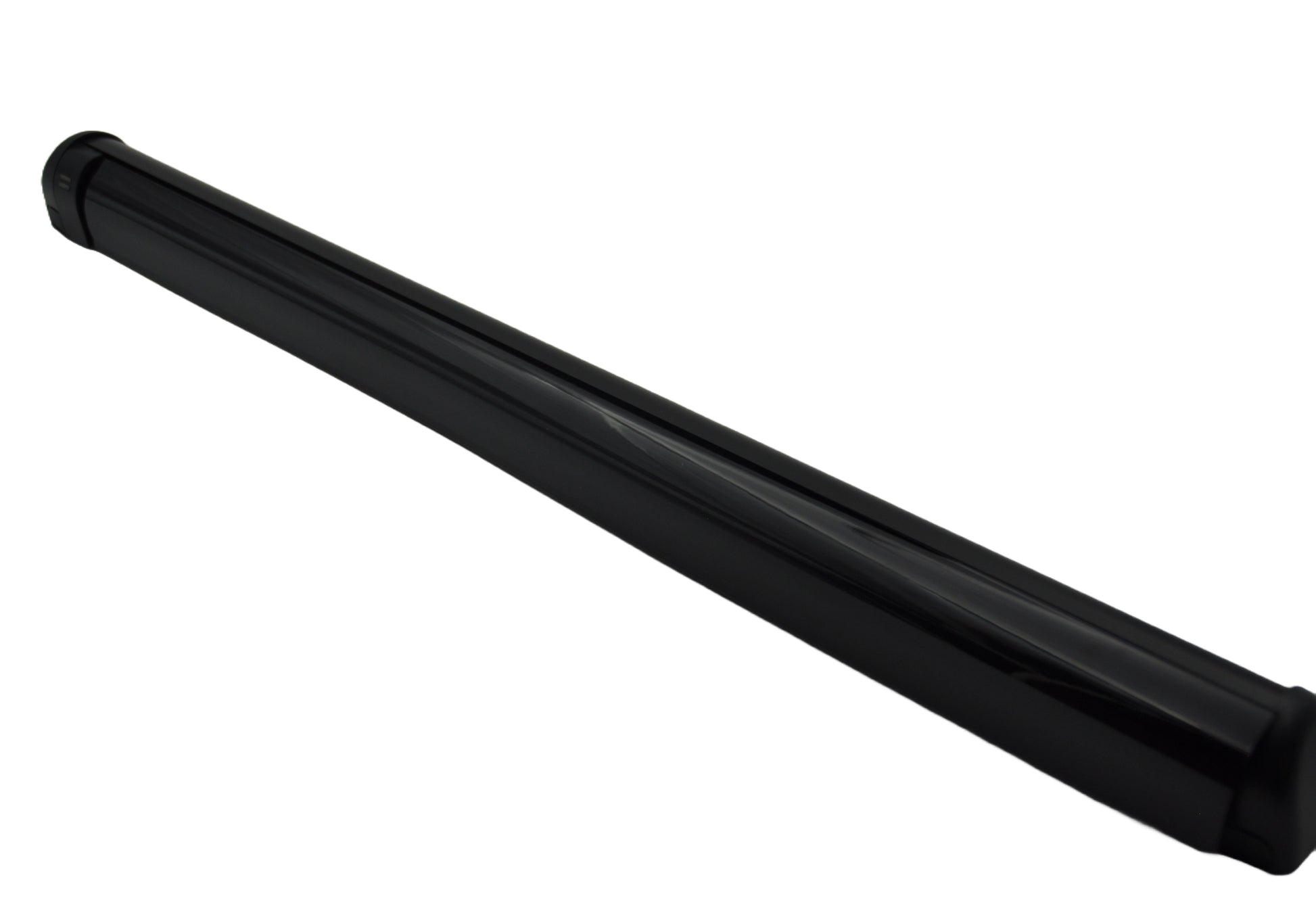

Record RC Swing Automatic Door Safety Sensor

The Record RC Swing safety sensor provides reliable and robust protection specifically designed for automatic swing doors. Fully compliant with EN16005 safety standards, this sensor utilises advanced infrared technology to create a precise safety curtain, ensuring optimal protection for pedestrians.

Key Benefits:
- Integrated CanBus protocol for seamless connection and simplified programming with the Record DFA127 automatic door operator.
- Quick installation with straightforward adjustments available via the Record BDE-D controller (sold separately).

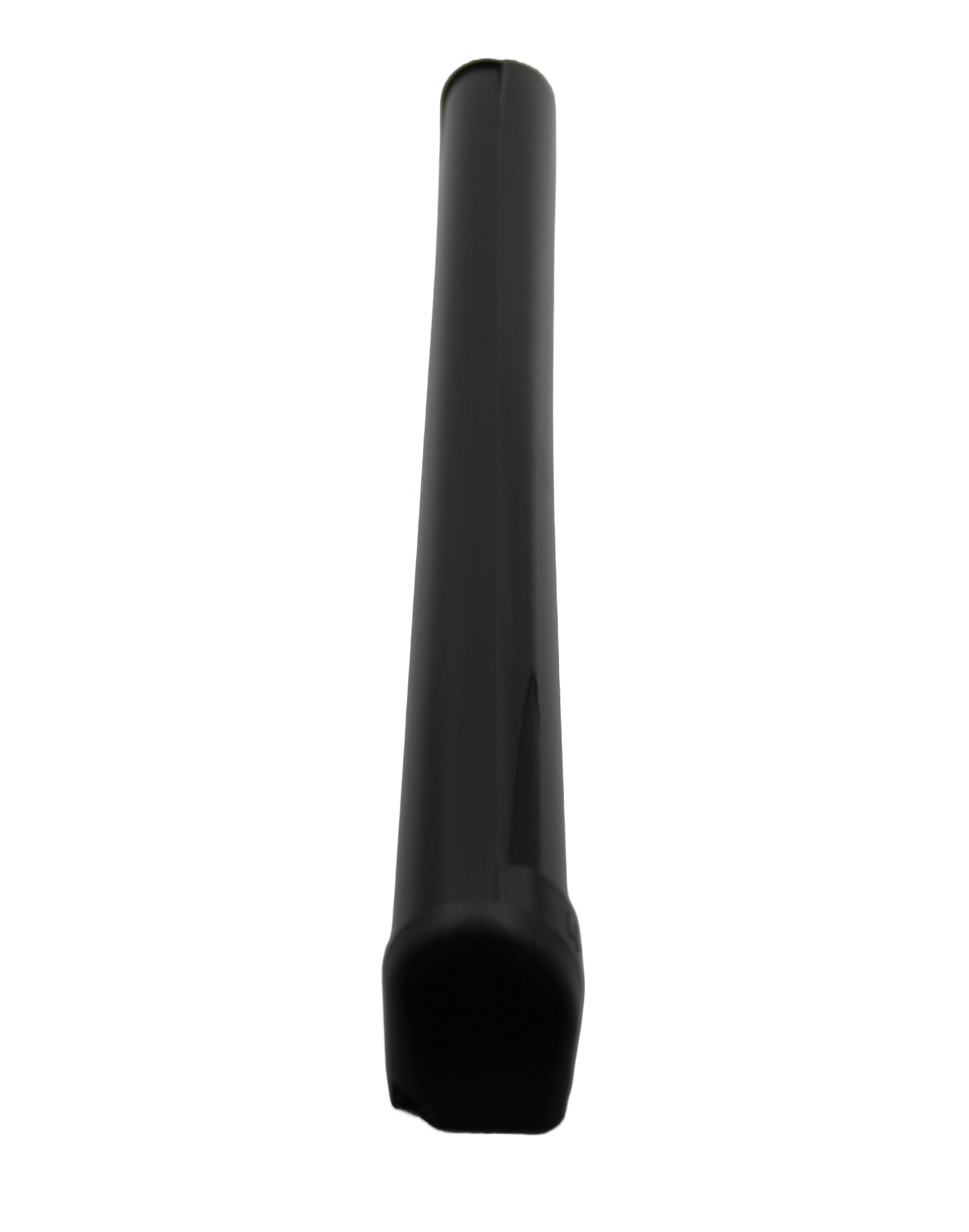

- Slim, adaptable housing for a discreet and professional appearance on any door leaf.

Technical Features:

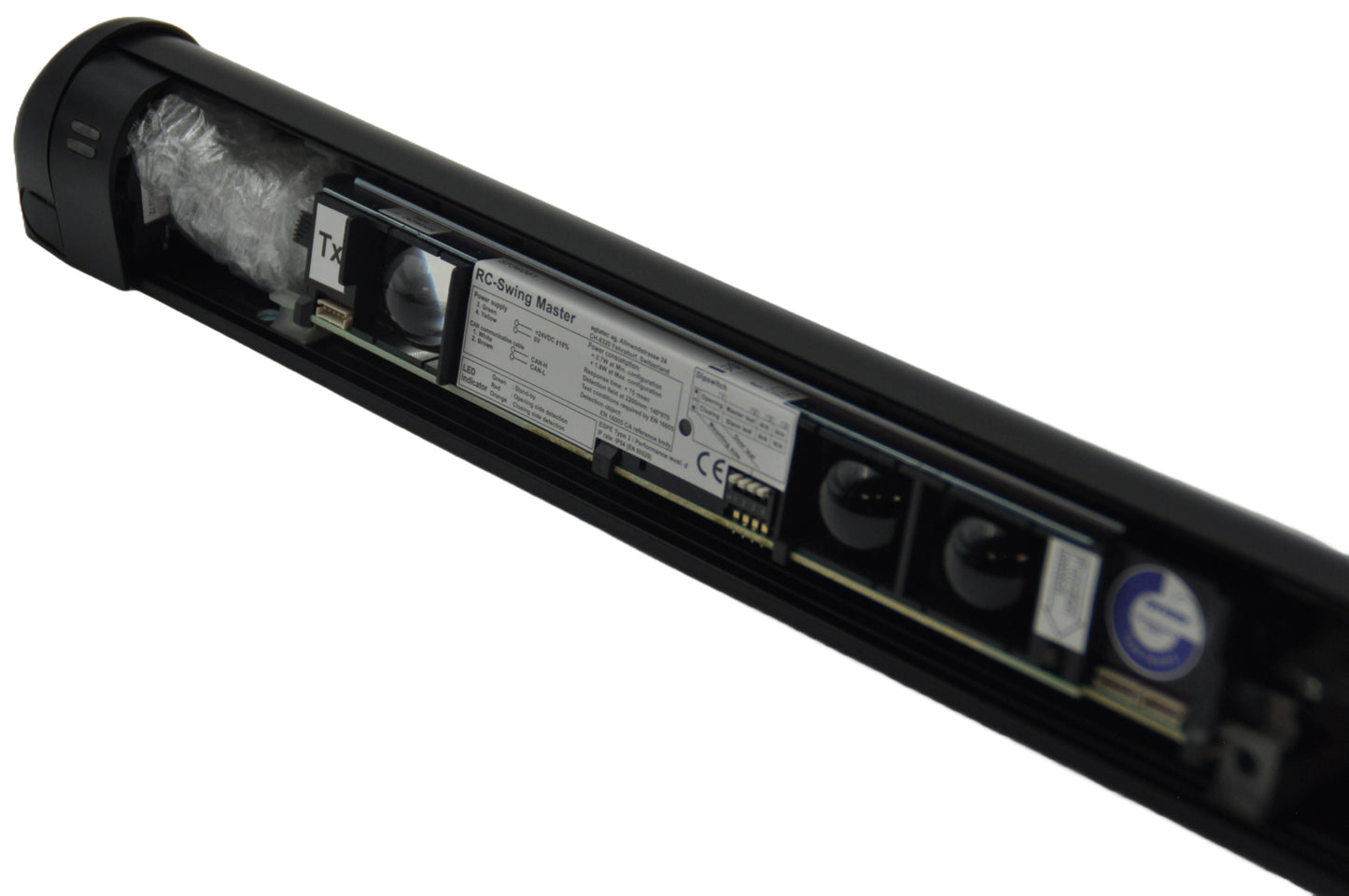

- Six-spot infrared safety curtain with precision detection.
- Safety beams adjustable close to ground level for enhanced pedestrian protection.
- External and internal monitoring for maximum reliability and safety compliance.
- User-friendly push-button detection distance settings.
- Rugged construction designed to withstand daily operation and prevent damage during installation.

Specifications:
- Installation Height: Up to 2.6m (8.53ft)
- Detection Range: 0 to 2.5m (0 to 8.2ft)
- Adjustable Beam Angles: 5°, 10°, 15°, 20°, 25° (with angle stabiliser)
- Power Supply: AC/DC 12 ~ 24V ±10%
- Response Time: Less than 0.1s
- Output Holding Time: Approximately 0.5s
- IP Rating: IP54 for reliable protection against dust and moisture

Essential Safety Compliance:
For installation, regular maintenance checks, and compliance verification with EN16005, Automagic Door Parts recommends professional installation and the use of the designated Field Test Box. Ensure the Field Test Box (700mm h x 300mm w x 200mm d) is detected across the full range of door travel positions to guarantee optimum sensor performance and pedestrian safety.

Available Lengths:
- 340mm

- 700mm

- 900mm

The Record RC Swing safety sensor offers a combination of simplicity, durability, and precision, making it an essential safety component for modern automatic swing door installations.
