Optex OA-Edge T Active Infrared Safety Sensor

Optex OA-Edge T Active Infrared Safety Sensor for Automatic Swing Doors – EN16005 Compliant

The Optex OA-Edge T Safety Sensor utilises advanced Active Infrared Triangulation technology, designed specifically to enhance pedestrian safety around automatic swing doors. Modular in construction, this EN16005-compliant sensor prevents collisions by reliably detecting objects or pedestrians approaching the swing area, ensuring comfortable and secure passage.

Key Features & Benefits:

• Advanced Infrared Detection:
  Employs precise Active Infrared Triangulation to deliver reliable detection, significantly reducing the risk of collisions.

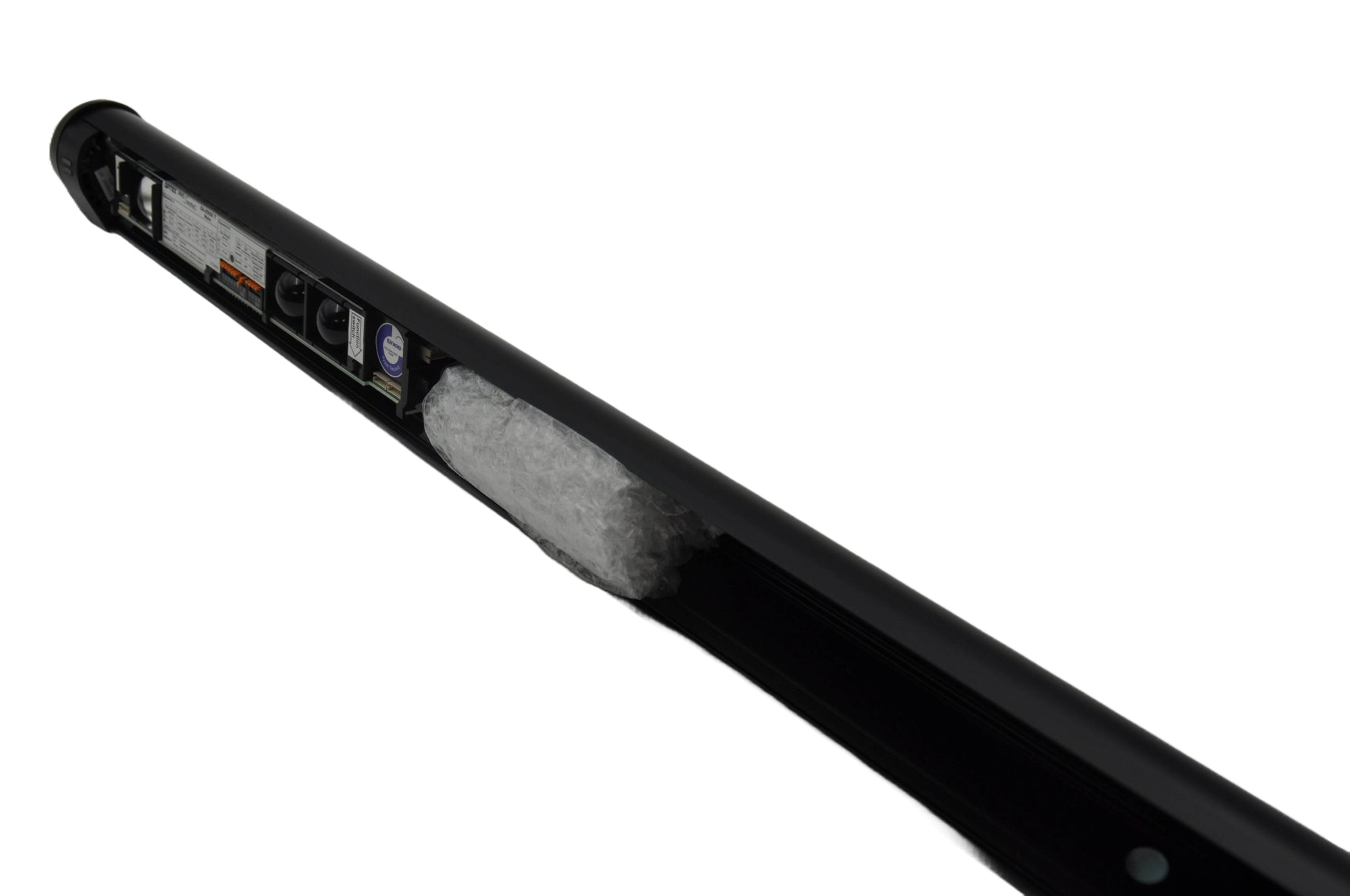

• Modular System:
  Includes one master module and up to three additional slave modules, allowing tailored safety coverage according to door width and safety requirements.

• Quick & Flexible Installation:

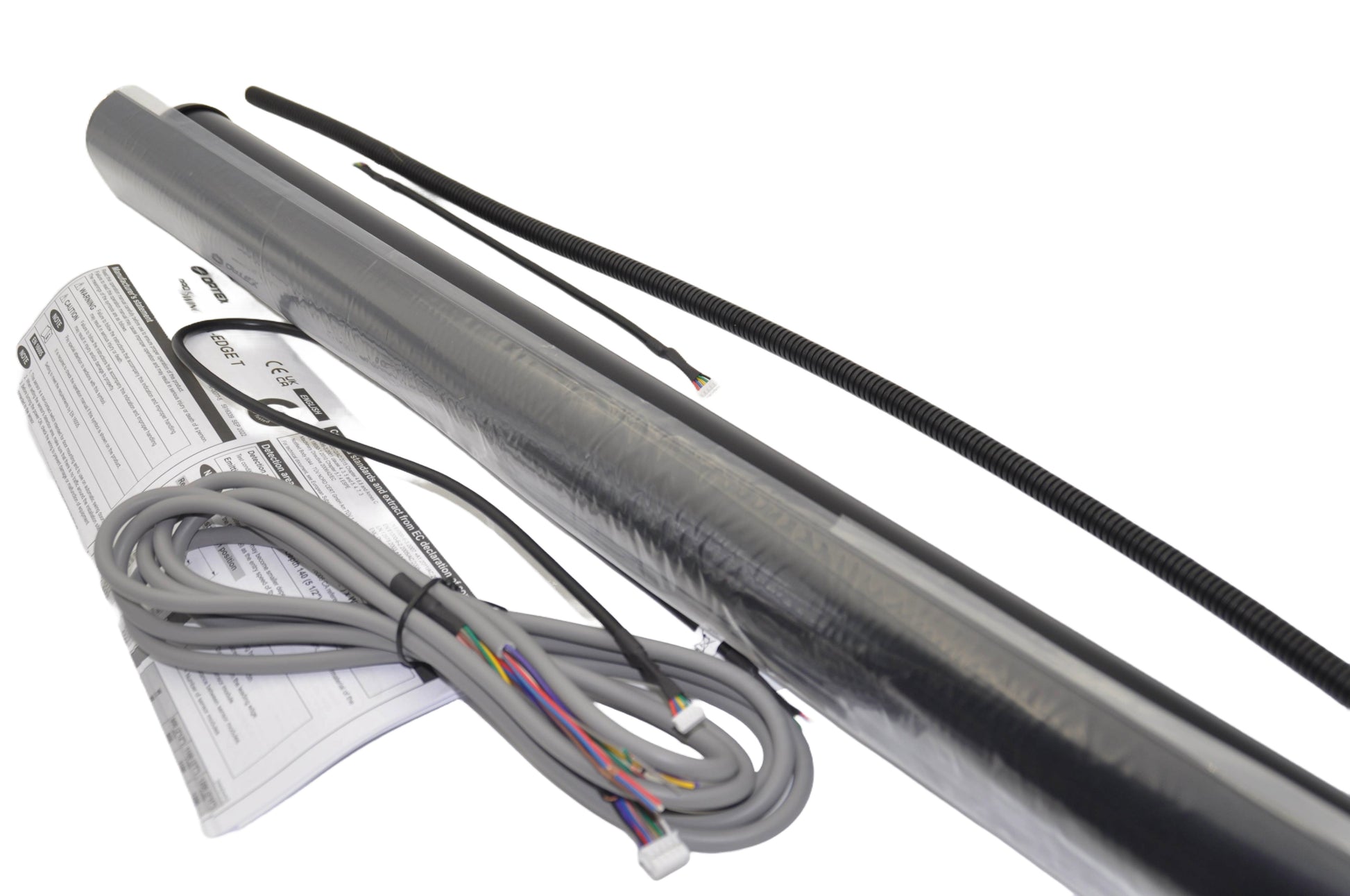

  Easy-to-connect master and slave modules via communication cables with simple connectors; an alternative power-supply connection also provides flexibility during installation.

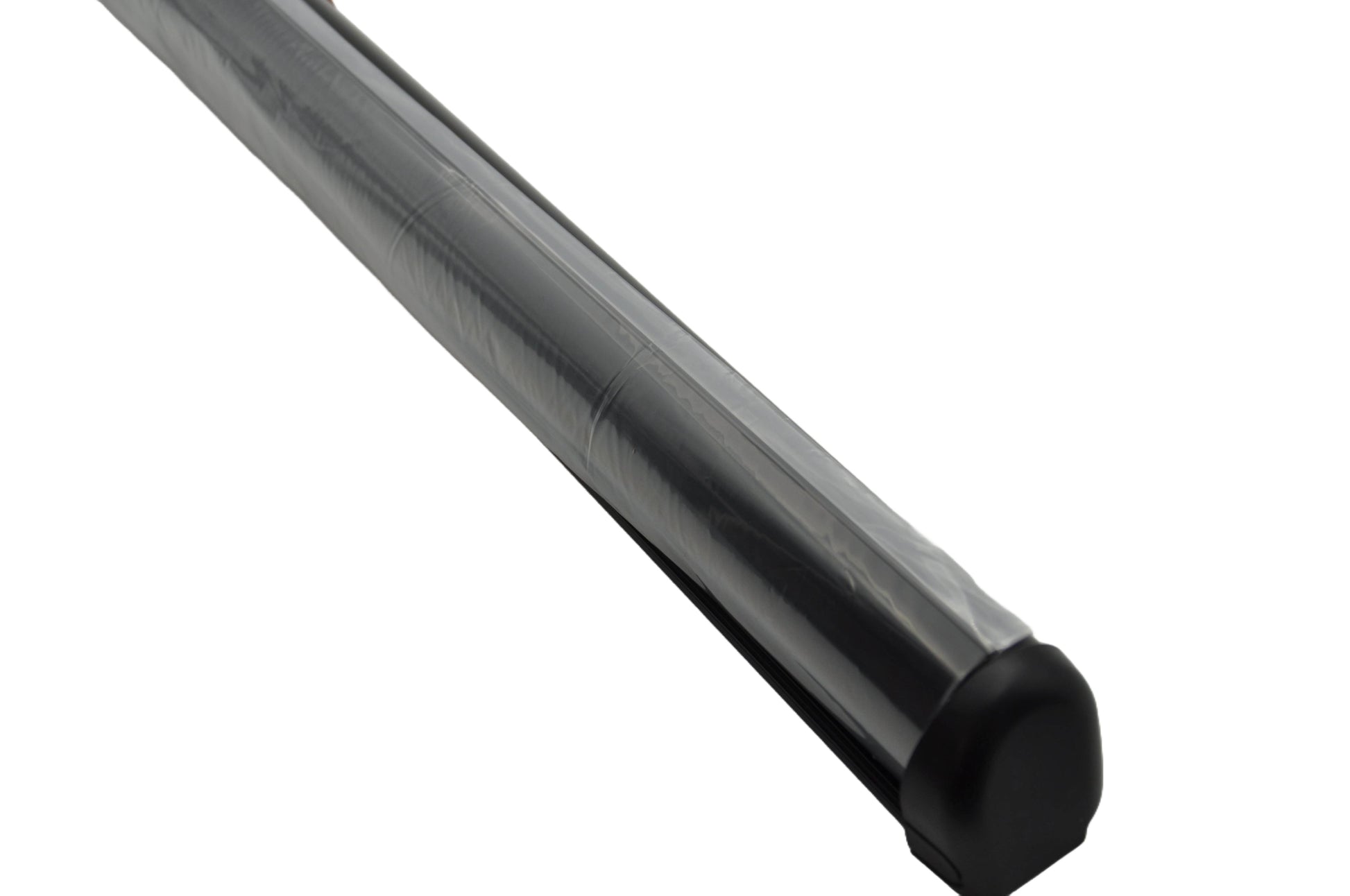

• Slim & Attractive Design:
  Compact, streamlined profile available in silver or black finish, complemented by a black lens to suit various swing door designs.

• Simple Adjustment & Initialisation:

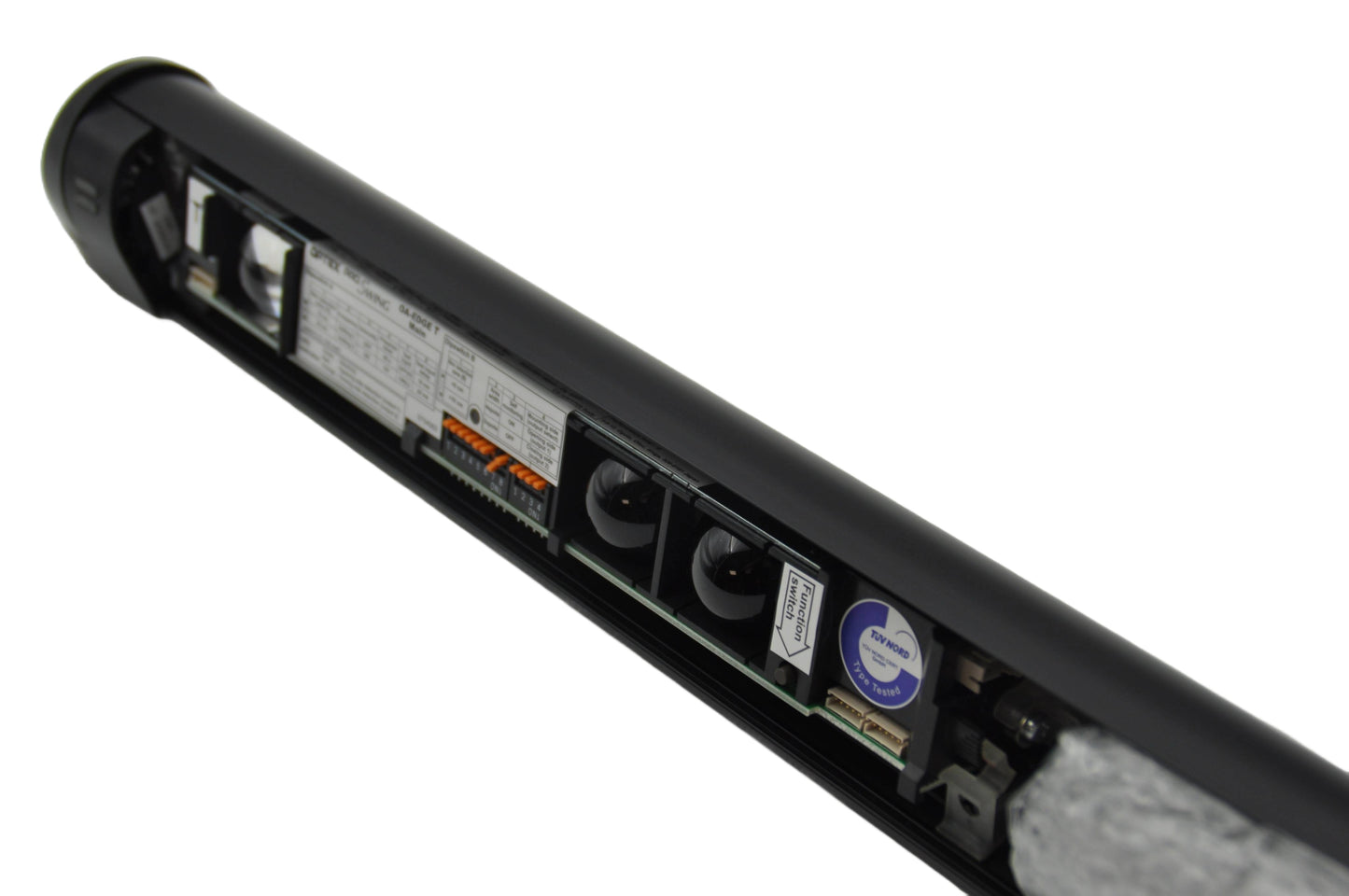

  Features straightforward dipswitch adjustments, a levelling screw, and a one-touch initialisation function, complemented by a clear LED indicator for easy operational status checks.

• High-Level Safety Performance:
  Wide detection coverage with up to four detection spots per module ensures robust pedestrian safety, independently tested and approved by TÜV to comply fully with EN16005 standards.

Technical Specifications:

• Detection Method: Active Infrared Triangulation

• Mounting Height: 1.5m (4'11") to 3.0m (9'10")

• Detection Spots: 4 spots per module

• Module Configuration:

  • Minimum: 1 Master Module + 1 LED Module

  • Maximum: 4 Sensor Modules + 2 LED Modules

• Power Supply: 12–24 VAC ±10% (50/60Hz) / 12–30 VDC ±10%

• Power Consumption:

  • Minimum config: <1.3W (<2VA at AC)

  • Maximum config: <3.5W (<4.5VA at AC)

• Output Response Time: <75ms

• Operating Temperature: -20°C to +55°C (-4°F to +131°F)

• IP Rating: IP54

• Dimensions: Various lengths x 44.3mm (H) x 50.7mm (D)

• Warranty: 3-year full replacement warranty
